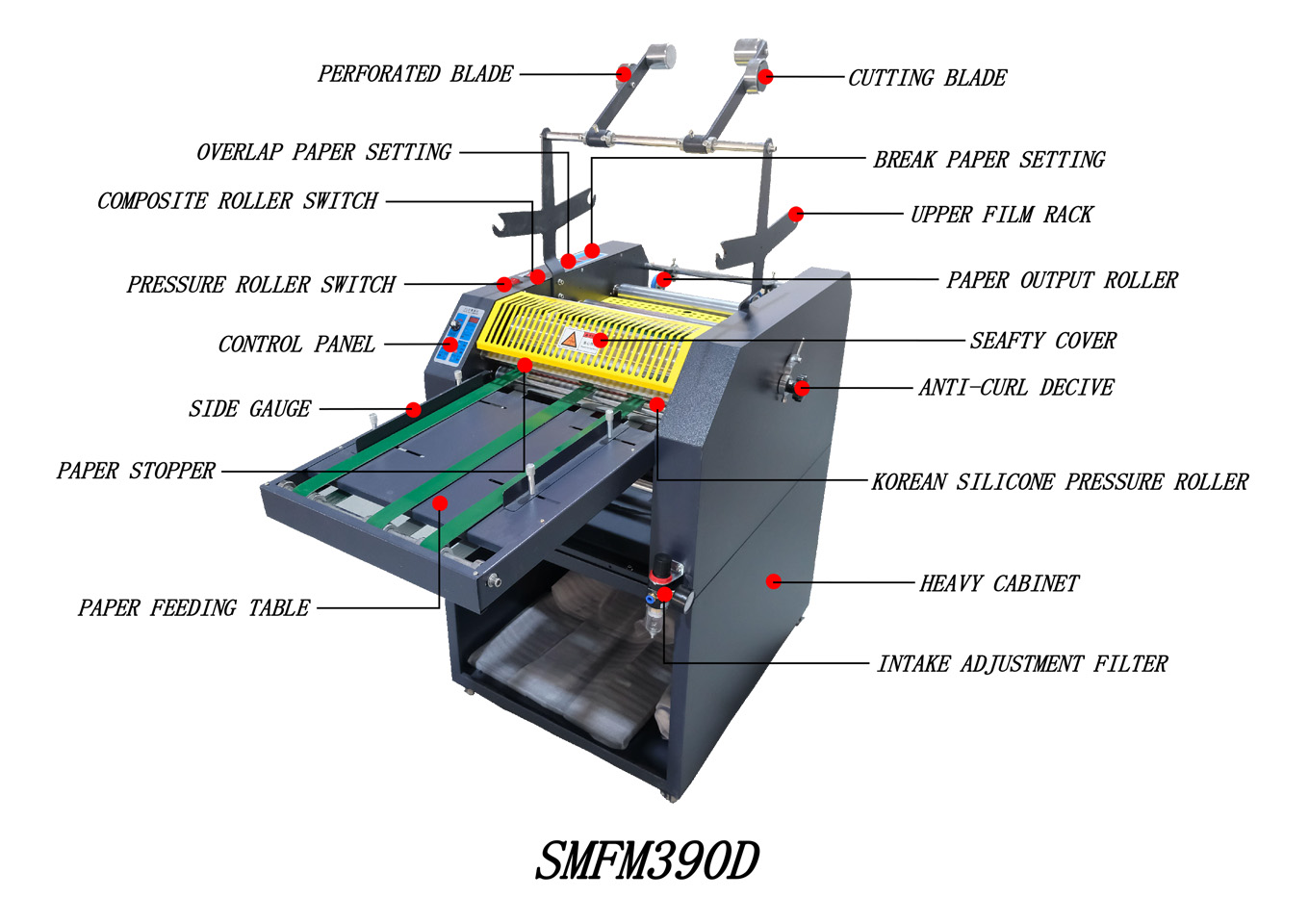

What we are showing you now is model digital 390D.This model max paper width is 360 millimeter.Length is not limited. All machines’heating rollers of our company are equipped with oil heating system, which can solve the problem that Allover black, red and green and will not appear white spots.Other companies are using electric heating in heating system. Electric heating will appear white spots.The pressure uses pneumatic pressure. Manual feed and automatic cut.This model uses Speed regulating motor. The speed is 13 meters per minute. And our machine has Anti-curl function. Thinner paper after laminating will not curl.
The main machine parameters
|
Model |
SMFM-390D |
|
Max paper size |
370x570mm |
|
Mini paper size |
150x150mm |
|
Operating speed |
0-13m/min |
|
Laminatingtemperature |
50-120℃ |
|
Total power |
1.5kw |
|
Dimensions(LxWxH ) |
1.6x0.68x1.1m |
|
Pressure mode |
pneumatic pressure |
|
Pressure |
0.1~0.5MPa |
|
Voltage |
220V/50Hz |
|
Feeding mode |
by hands |
|
With overlap |
with |
|
With slitting function |
with |
|
Anti-curl function |
with |
|
Rolling-up after lamianting |
No |
|
Automatic disconnecting after laminating |
Yes |
|
paper thickness |
125~350gsm |
