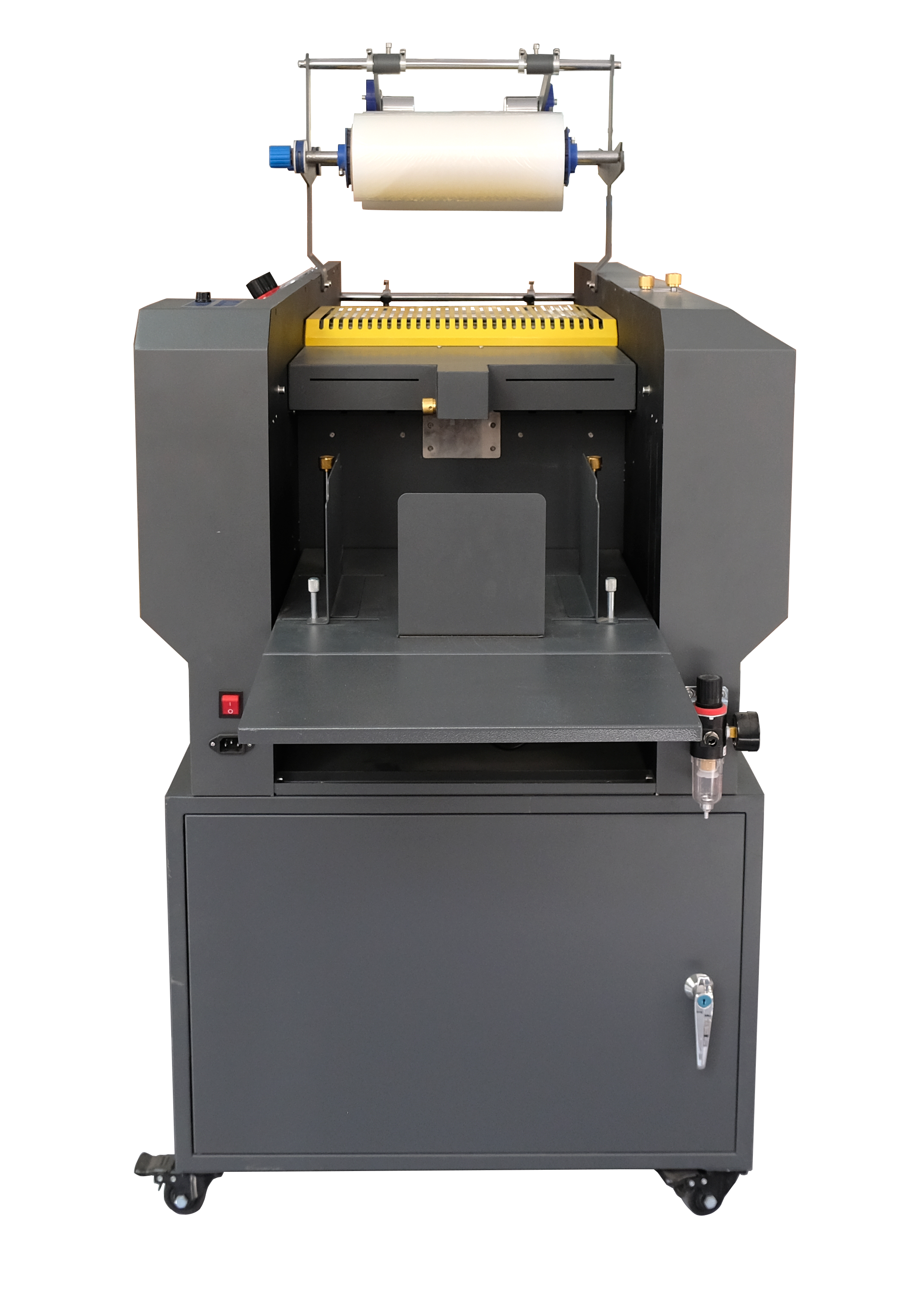

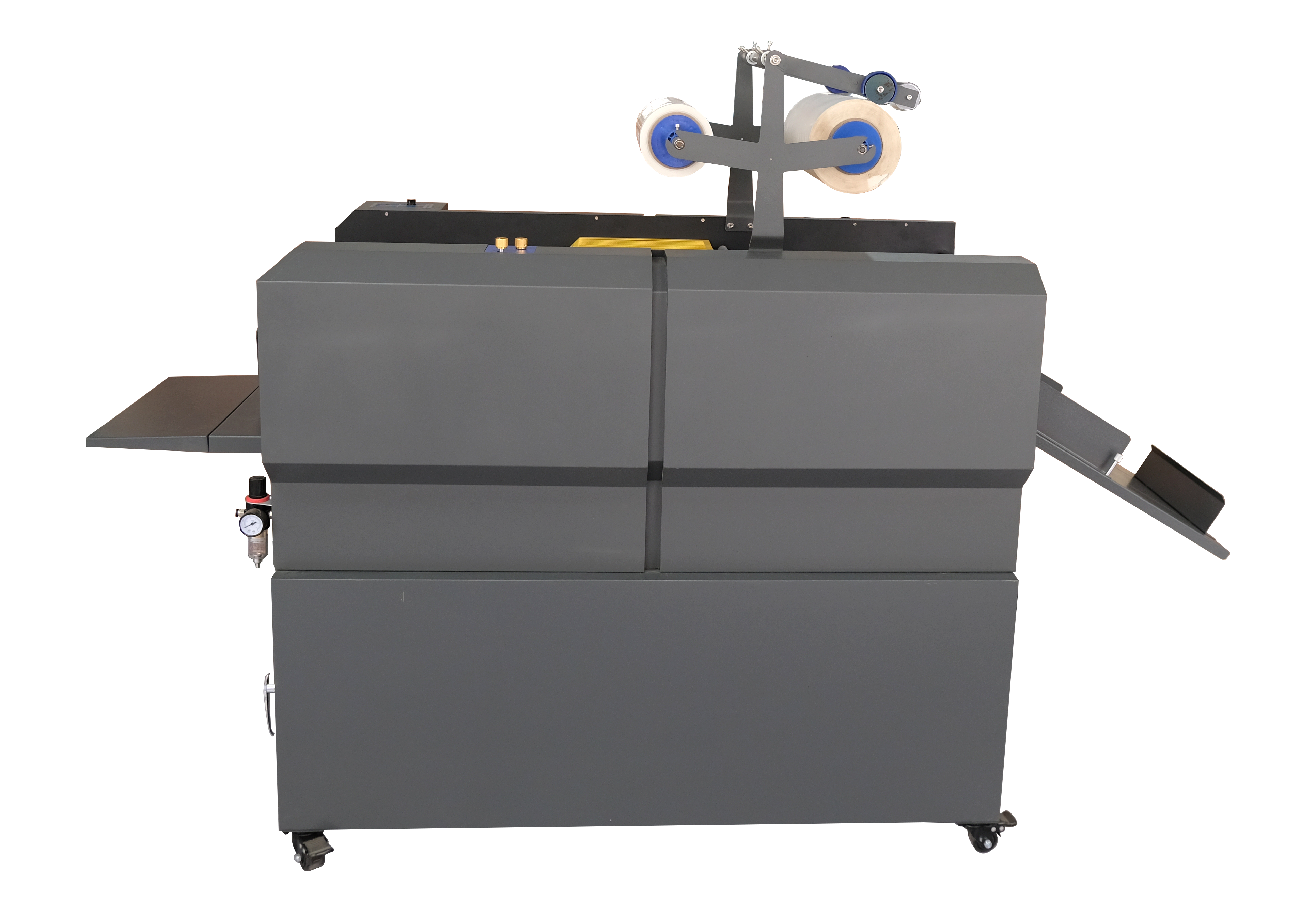

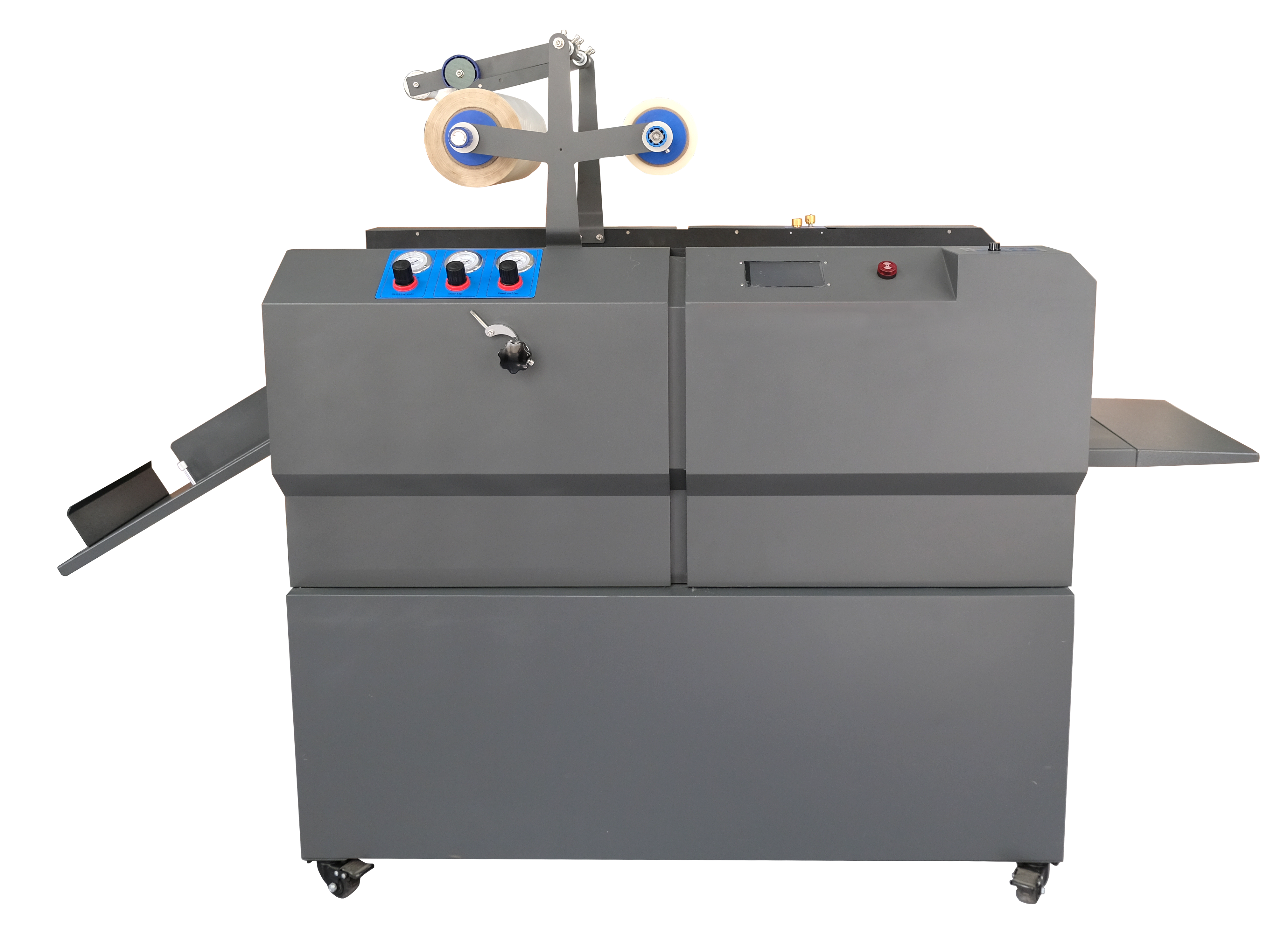

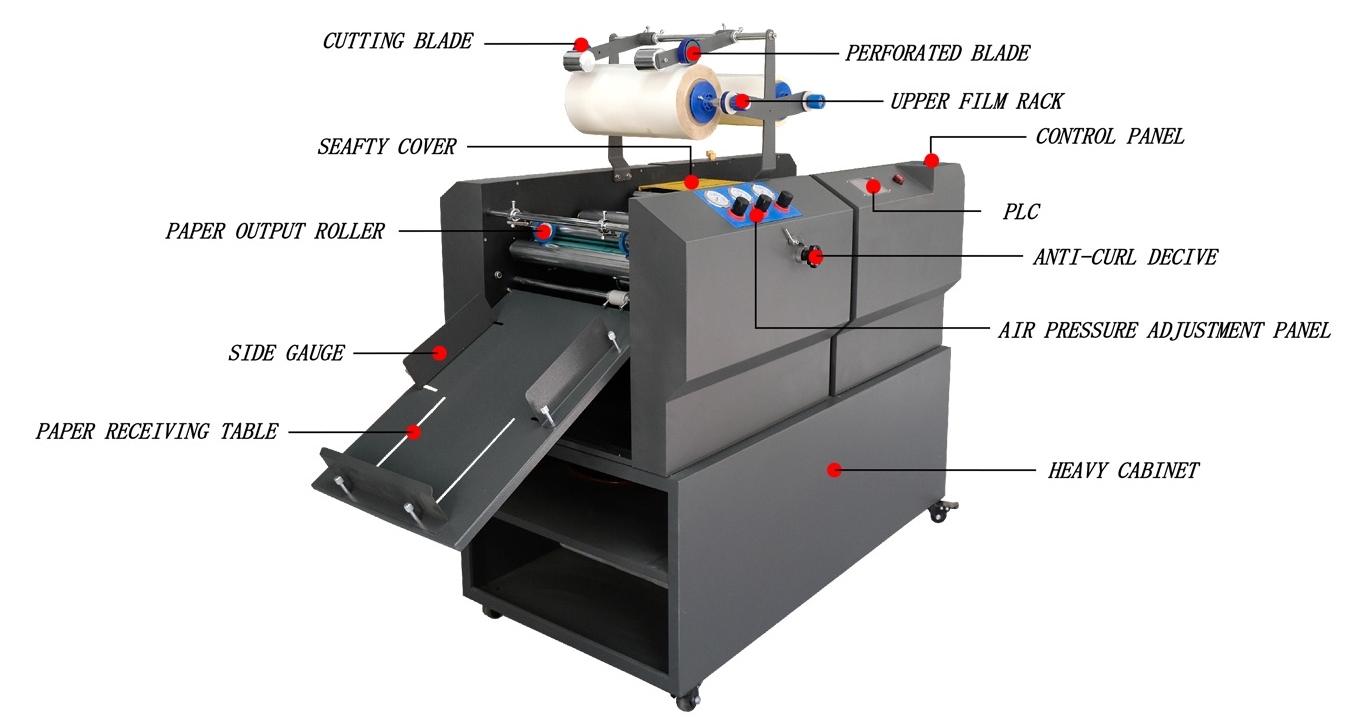

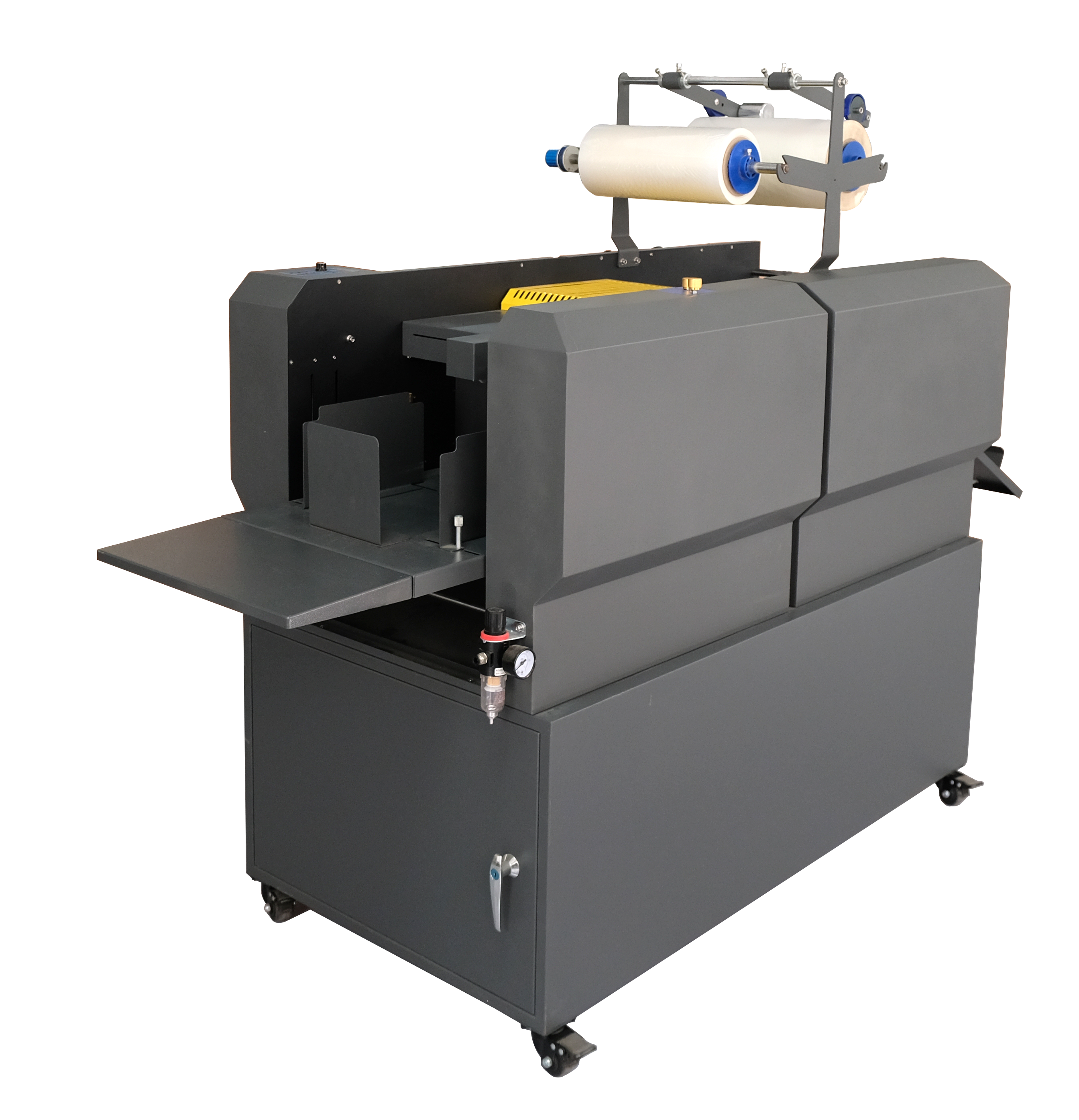

The machine is a fully automatic oil heating laminating machine. It has a computer touch screen and PLC intelligent control system. There is a suction device to feed paper automatically. It adopts large electronic hydraulic cylinders to provide pressure. It adopts stepless speed governor reducer to adjust the speed. It has double film racks, Anti-Curl function: Dual film racks and anti-curl design prevent paper warping, delivering wrinkle-free, professional lamination every time. It can cut off paper and overlap automatically and collect papers orderly. The heating roller is treated with high brightness mirror. The pressure roller uses imported silicone material, which is pressure resistant and high temperature resistant and non-adhesive
The main machine parameters
| Model | SMFM390Gpro |
| Max paper size | 355×570mm |
| Mini paper size | 150×280mm |
| Operating speed | 0-13.5m/min |
| Laminating temperature | 0-120℃ |
| Total power | 2.2kw |
| Dimensions(L×W×H) | 2×0.75×1.42m |
| Pressure | 0.5MPa |
