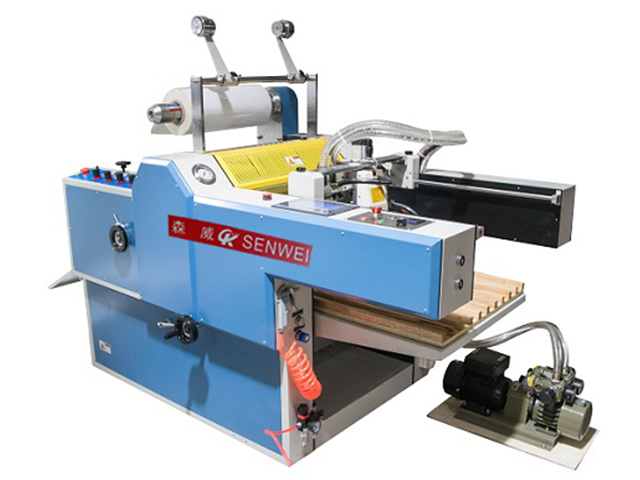

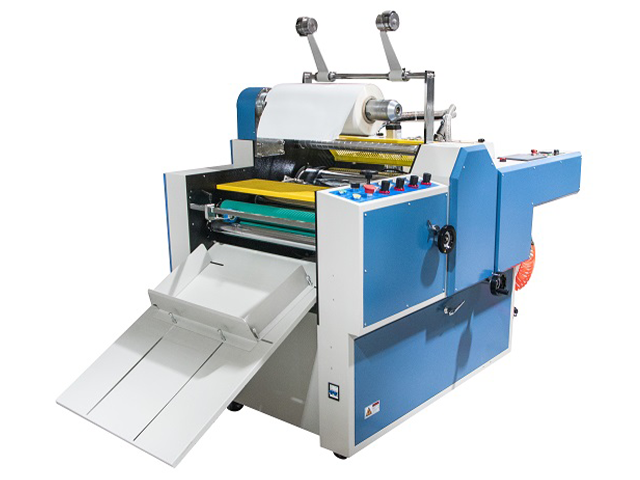

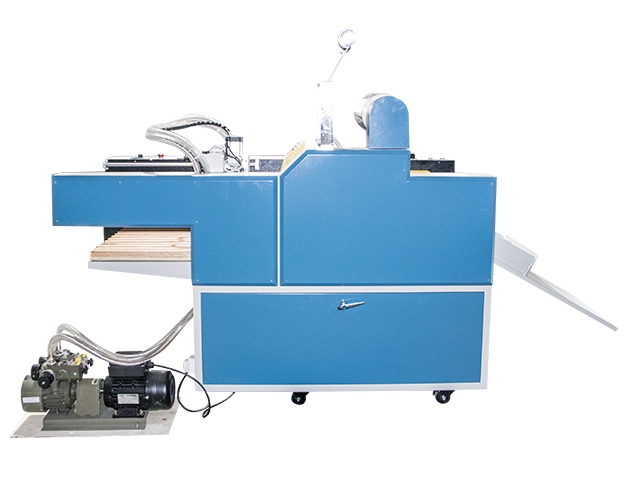

SL-540F Fully automatic laminating machine

SL-540F

SL-400F/540F Hydraulic oil heating fully automatic laminating machine, pneumatic paper feeding with vacuum pump.Machine is equipped with no paper miss sensor, which are controlled by photoelectric and mechanical systems. When no paper or paper break occurs, the machine will stop automatically for self-protection.The film release rack is equipped with a gas expansion shaft.Paper feeding mode: servo motor feeding,With anti-curl function.The machine to pre-coated polyester film as material, can be widely used in window-type packaging boxes, food boxes, books, drawings, advertisements, certificates and other products of the surface coating, the printed film after the film, waterproof, durable, Clear.

SL-400F/540F Hydraulic oil heating fully automatic laminating machine, pneumatic paper feeding with vacuum pump.Machine is equipped with no paper miss sensor, which are controlled by photoelectric and mechanical systems. When no paper or paper break occurs, the machine will stop automatically for self-protection.The film release rack is equipped with a gas expansion shaft.Paper feeding mode: servo motor feeding,With anti-curl function.The machine to pre-coated polyester film as material, can be widely used in window-type packaging boxes, food boxes, books, drawings, advertisements, certificates and other products of the surface coating, the printed film after the film, waterproof, durable, Clear.



The main machine parameters

Model

SL-540F

Max paper size

730x530mm


Mini paper size

210x250mm


Operating speed

0-25m/min


Laminatingtemperature

25-150


Total power

4kw

Dimensions(LxWxH )

2.3x1.02x1.35(M)


paper feeding

Automatic


With slitting function

with

Anti-curl function

with

paper thickness

125~350gsm

Voltage

220V/50Hz
