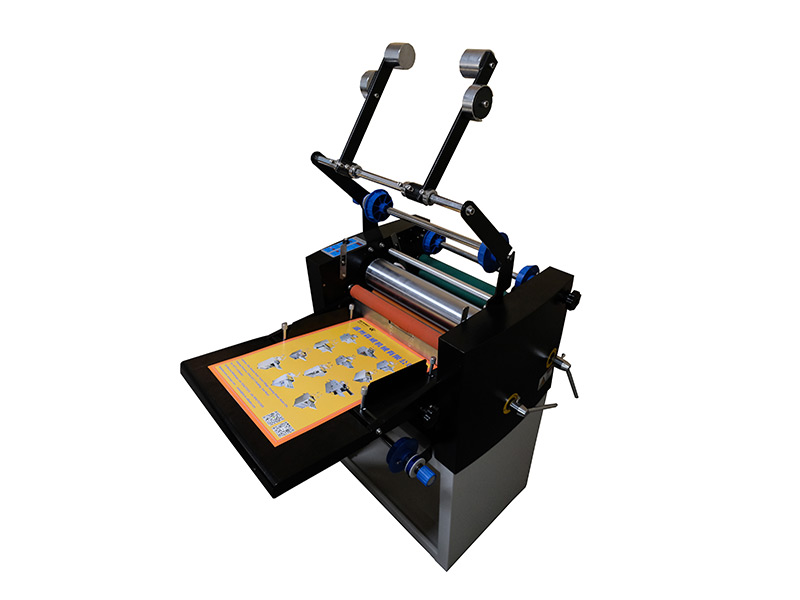

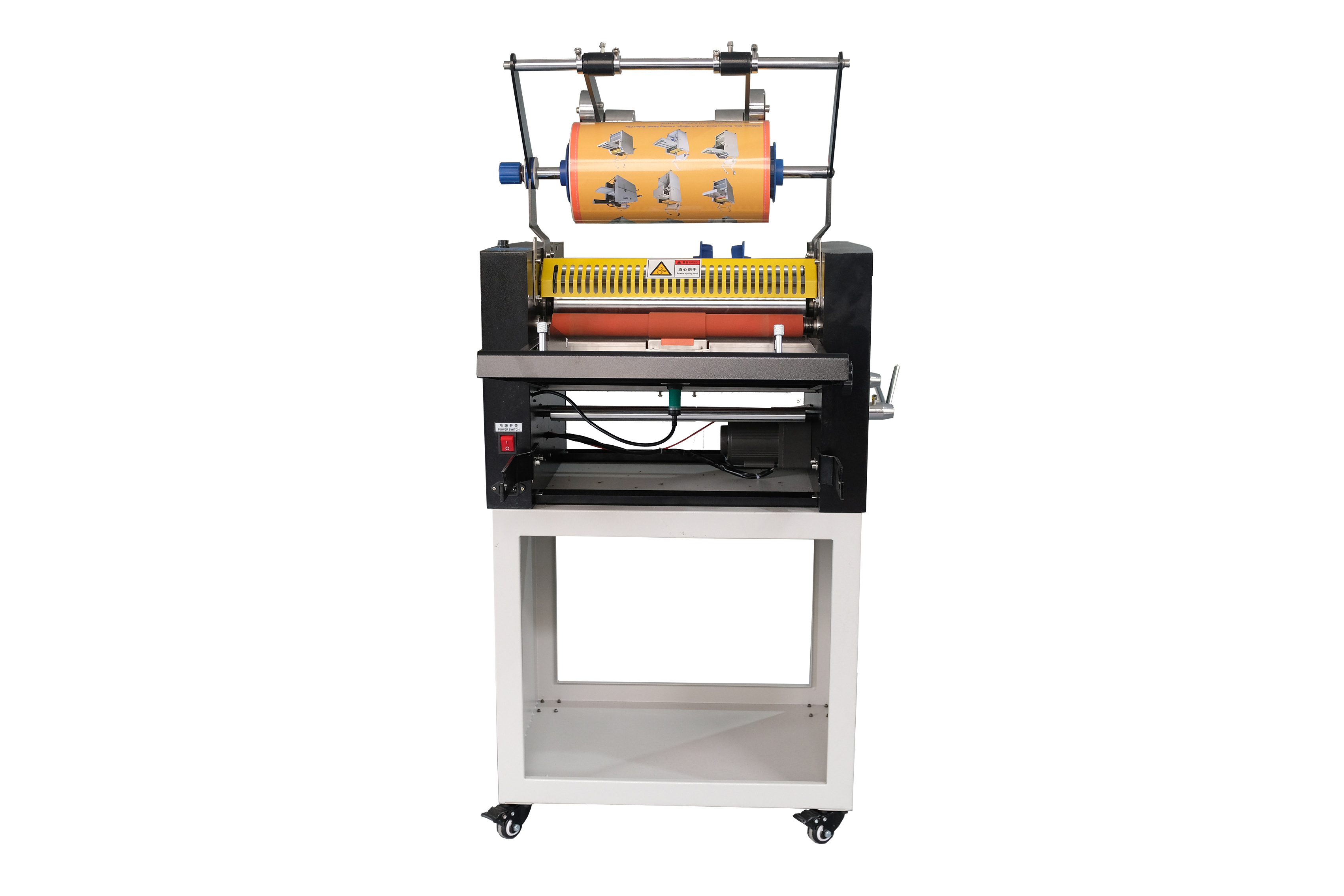

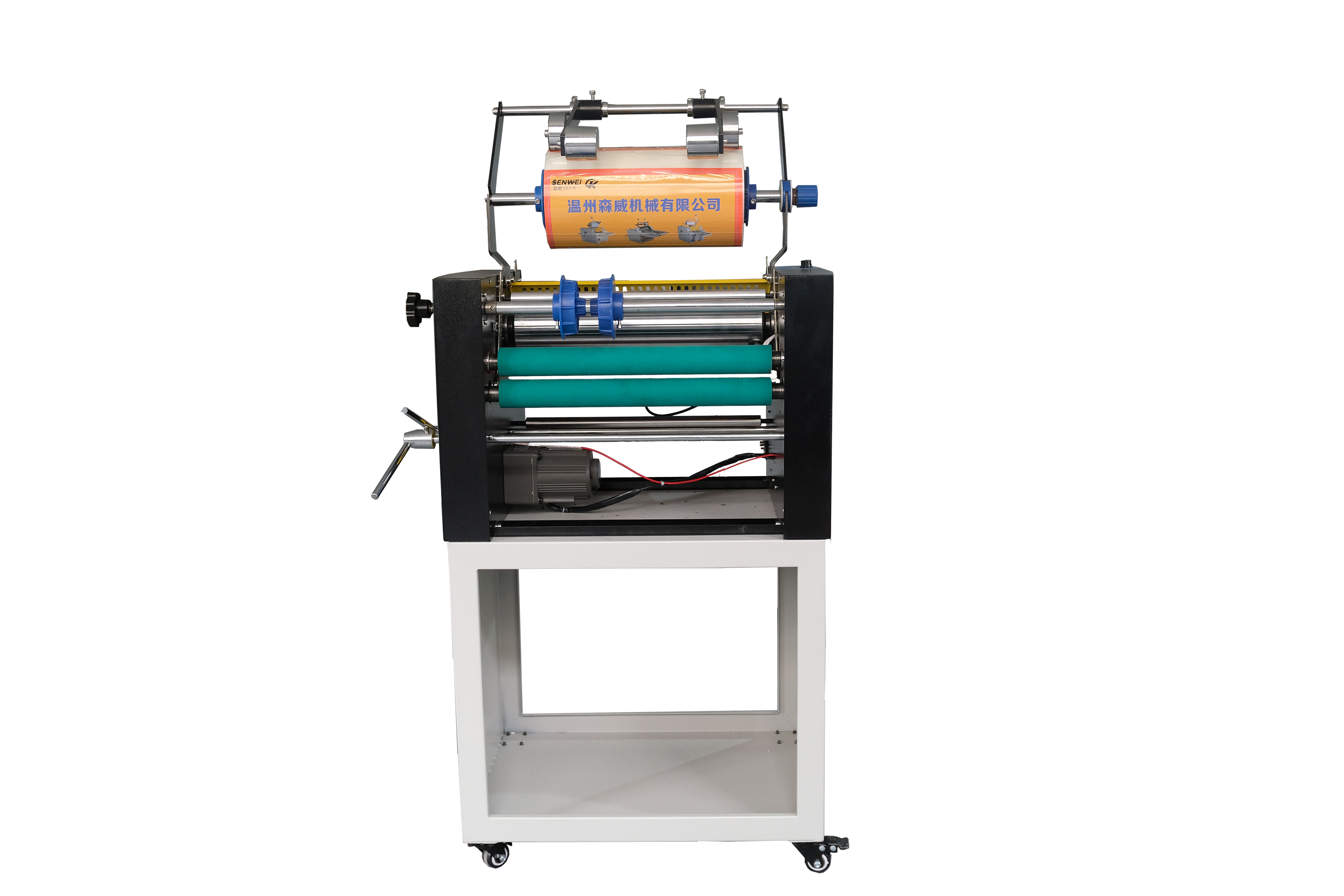

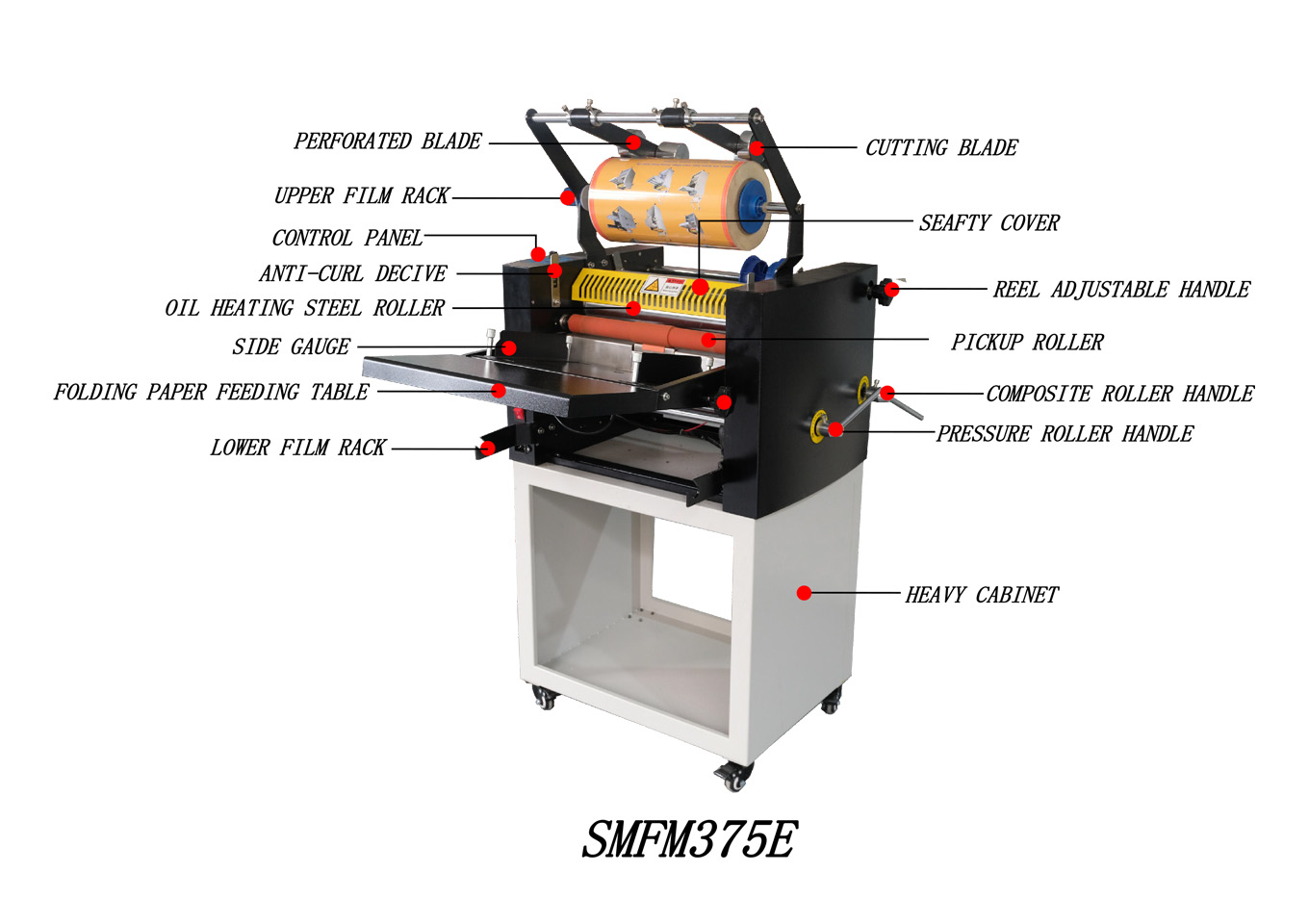

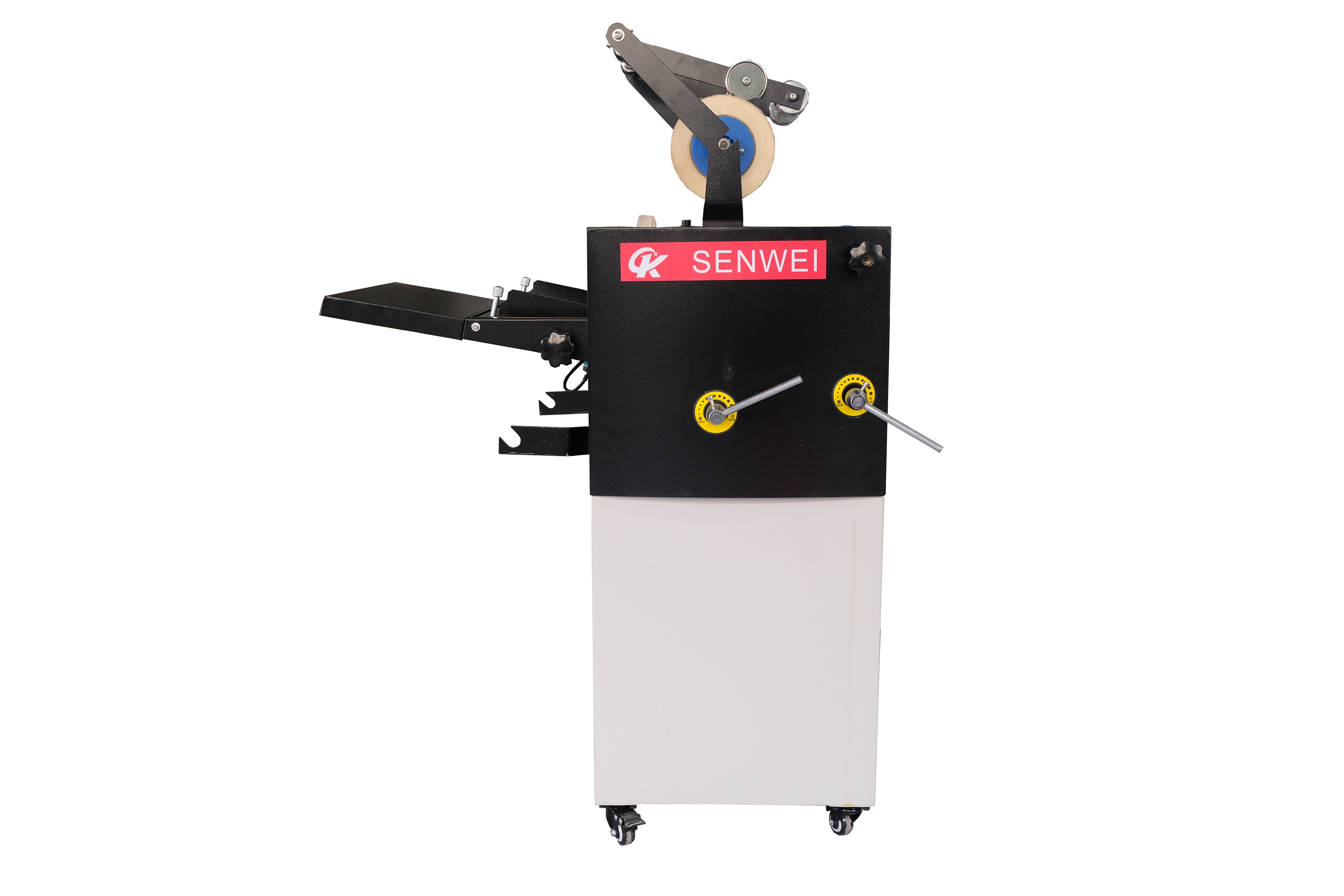

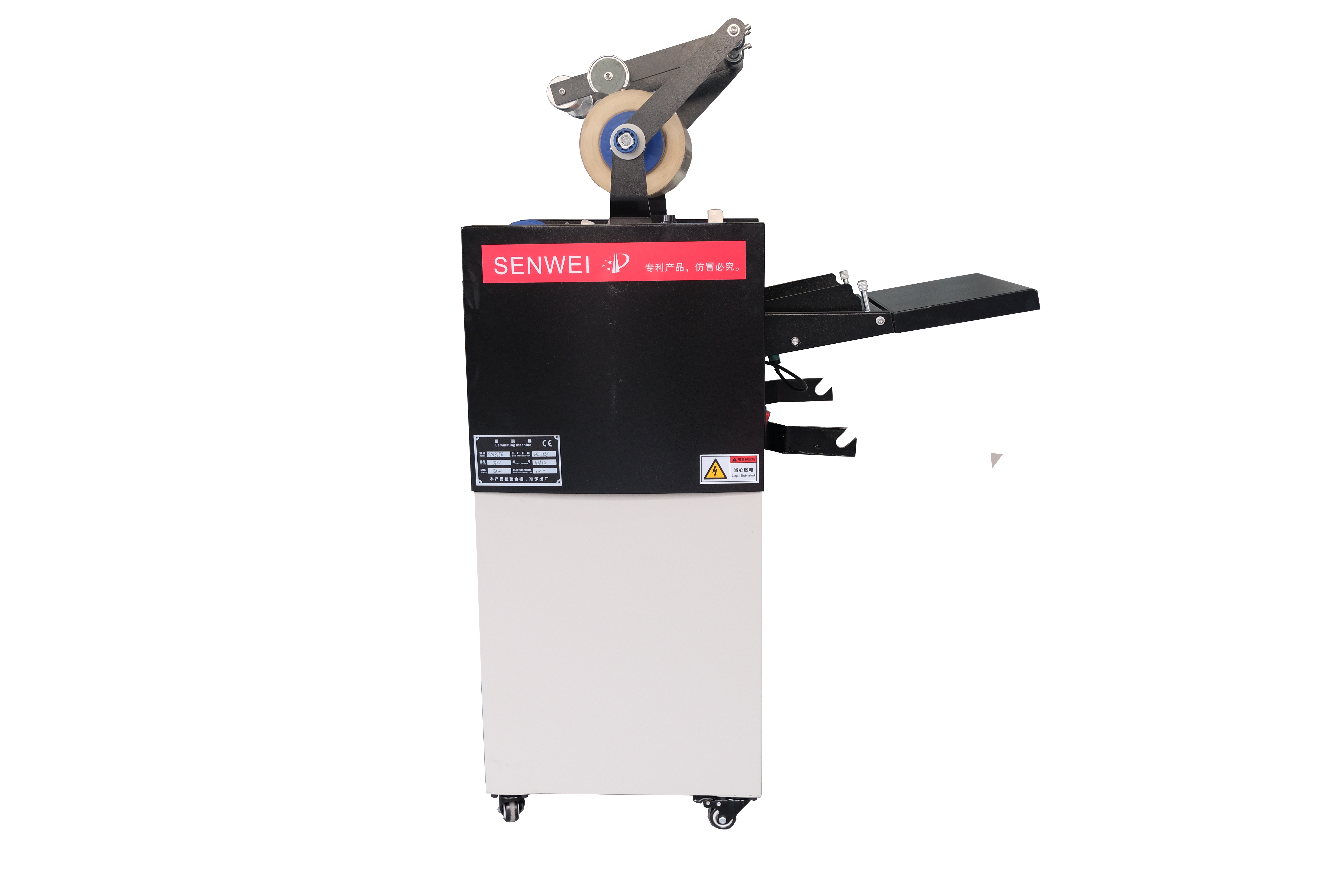

SMFM375E is automatic feed and manual cut.And this model with foil rewinding function.can collect Scrap of bronzing.All machines’ heating rollers of our company are equipped with oil heating system, which can solve the problem that Allover black, red and green and will not appear white spots.Other companies are using electric heating in heating system. Electric heating will appear white spots.Pressure roller imported silica gel.Our pressure roller is pressure resistant, non stick and explosion-proof.The pressure uses 200 kg turbo supercharging. This model uses Speed regulating motor. The speed is 13 meters per minute. And our machine has Anti-curl function. Thinner paper after laminating will not curl.
|
Model |
SMFM375E |
|
Max paper size |
360x580mm |
|
Mini paper size |
150x150mm |
|
Maximum height of paper |
30mm |
|
Operating speed |
0~10m/min |
|
Laminating temperature |
80~125℃ |
|
Total power |
1.5 Kw |
|
Voltage |
220V/50Hz |
|
Dimensions(LxWxH ) |
1.5×0.63×1.2m |
|
Pressure |
0.1~0.5MPa |
|
Feeding mode |
automatic |
|
Feeding Method |
Friction |
|
With slitting function |
with |
|
Anti-curl function |
with |
|
Rolling-up after lamianting |
yes |
