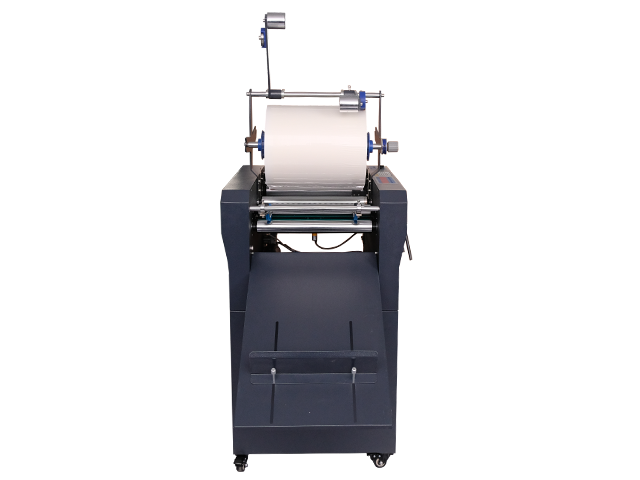

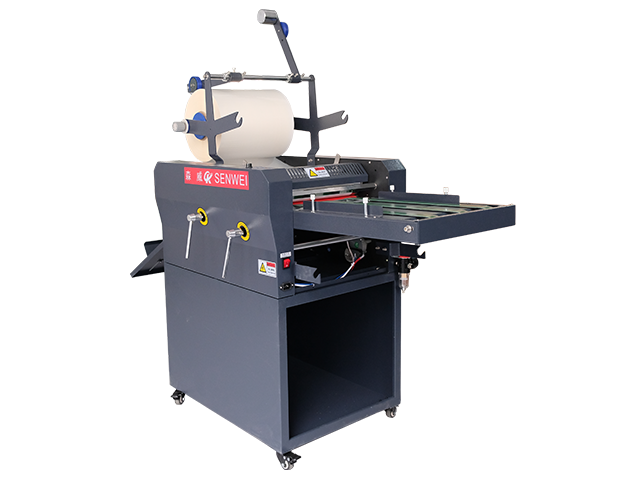

SMFM5003D Digital Oil Heating Semi-automatic Laminating Machine

SMFM5003D

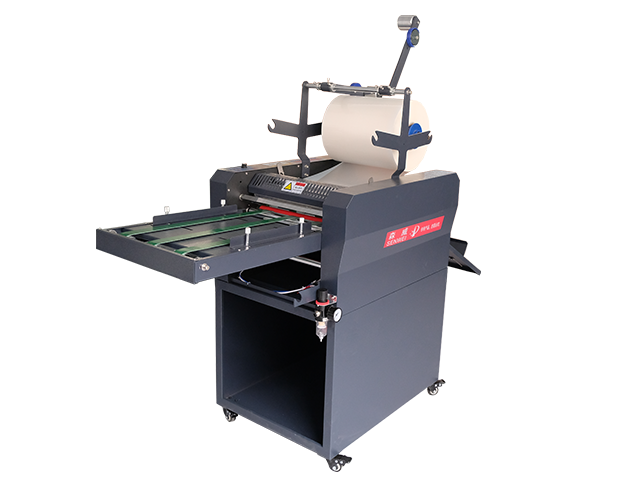

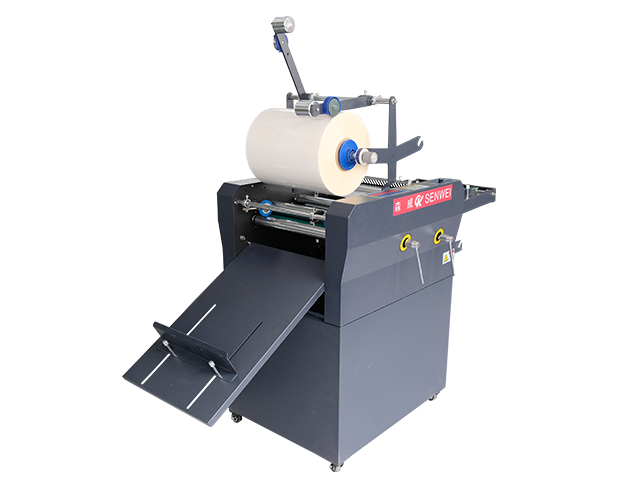

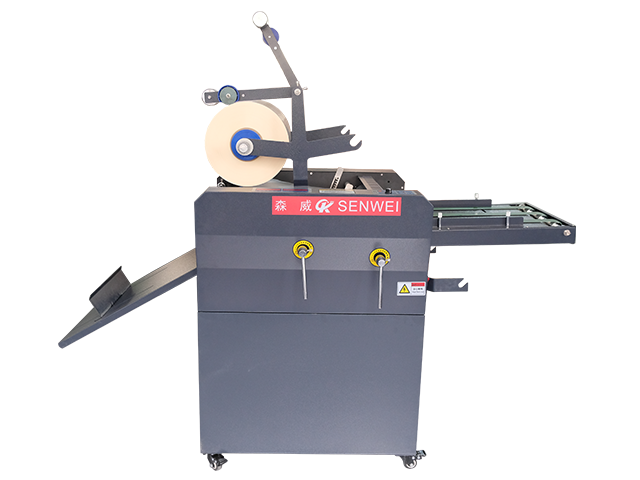

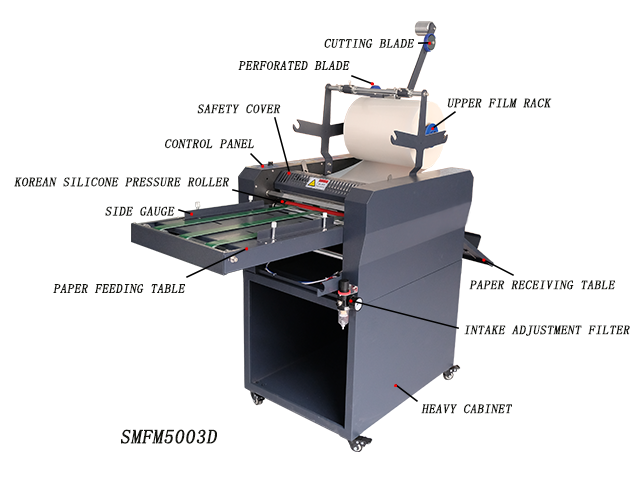

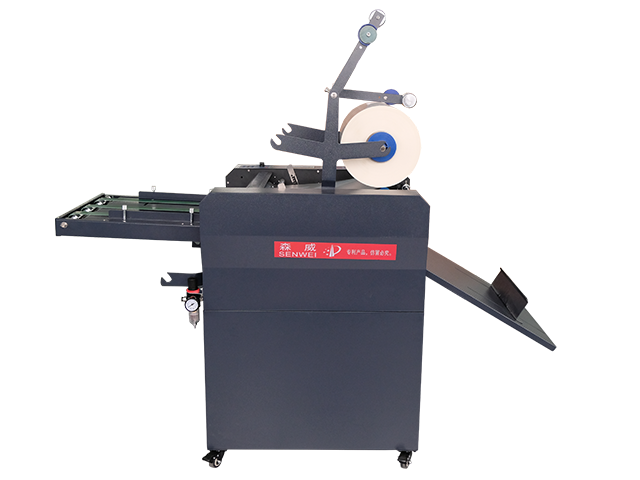

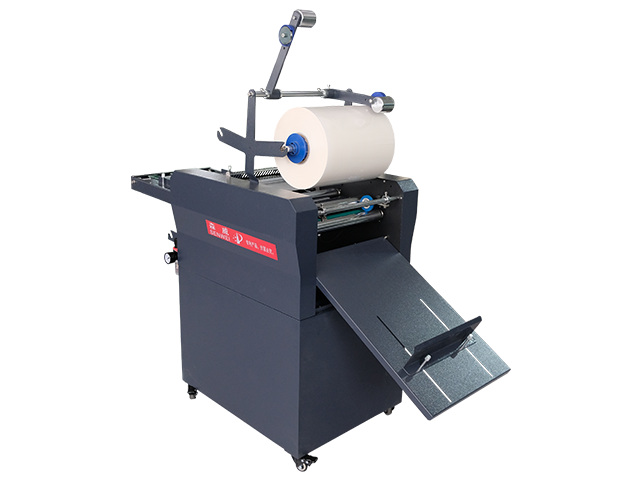

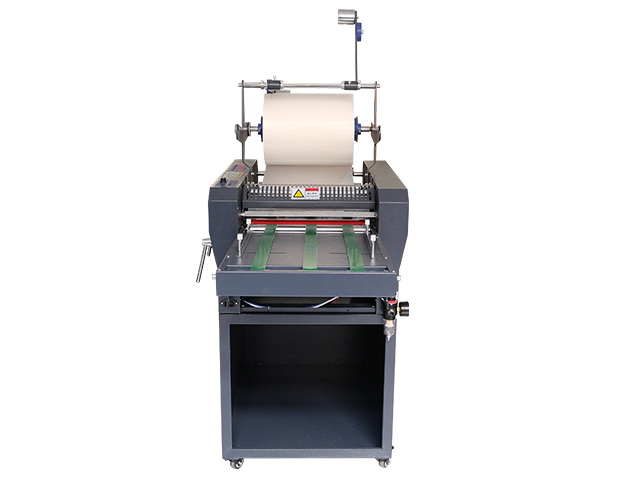

The SMFM5003D is a digital oil heating semi-automatic laminating machine with auto cut and auto overlap function.It uses conveyor belts to feed paper.Its structure is stable and easy to operate.Its land occupation is small.It is easy to move and suitable for graphic design studios,packaging factories and color printing factories.
Inquiry PDF Download

Product Details

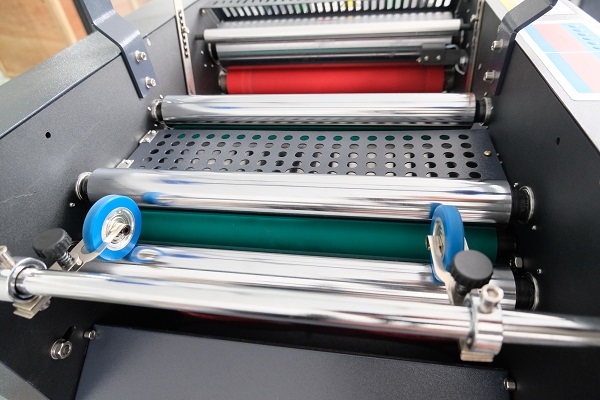

It adopts stepless speed governor reducer to adjust the speed.It has double film racks.anti-curl device.It can cut off paper automatically and collect papers orderly.The heating roller is treated with high brightness mirror.The pressure roller uses imported silicone material, which is pressure resistant and high temperature resistant and non-adhesive.



Machine Parameters

Model SMFM5003D
Max Paper Size 330x580mm
Operating Speed 0-10m/min
Laminating Temperature 0-120℃
Total Power 1.3KW
Dimension(LxWxH) 1.53x0.61x1.14m
Pressure 0.1-0.6Mpa
