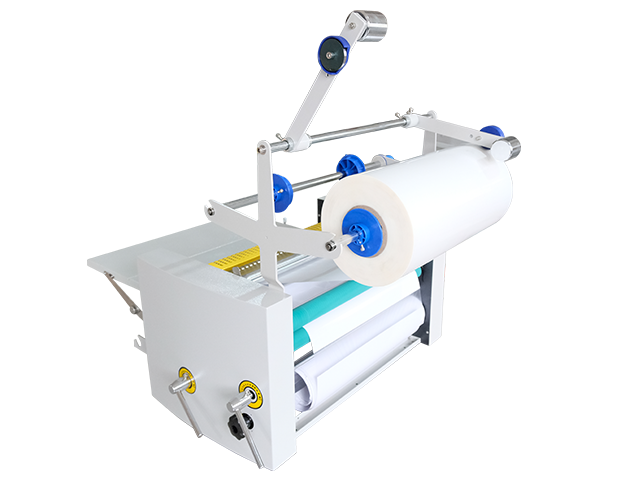

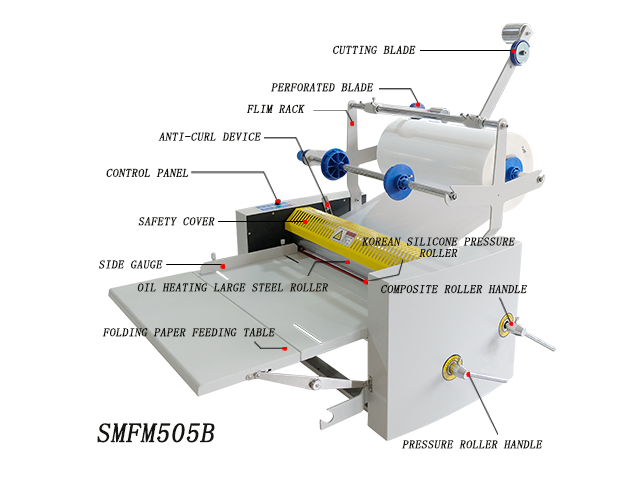

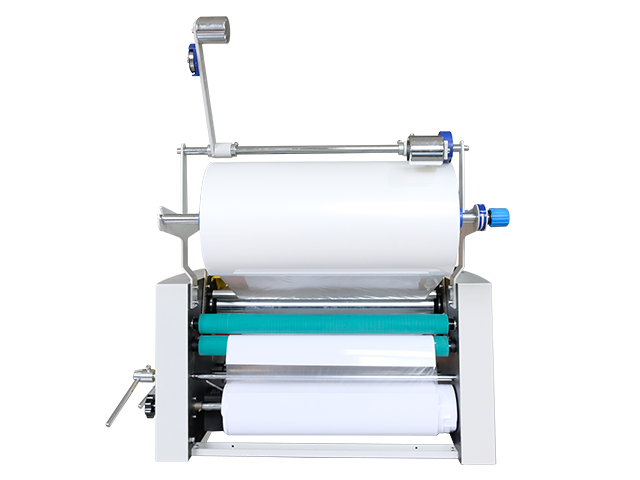

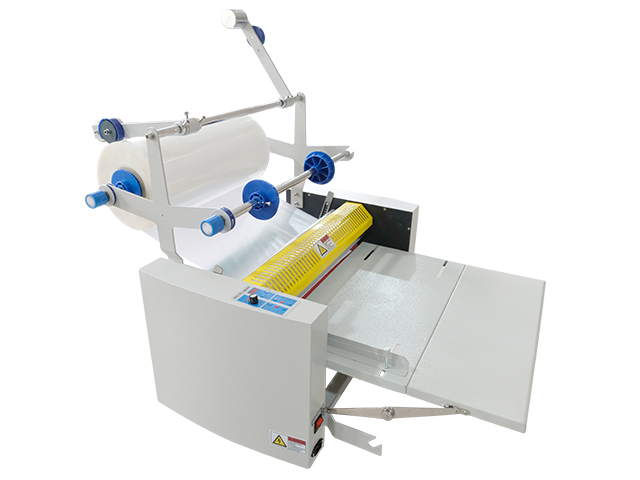

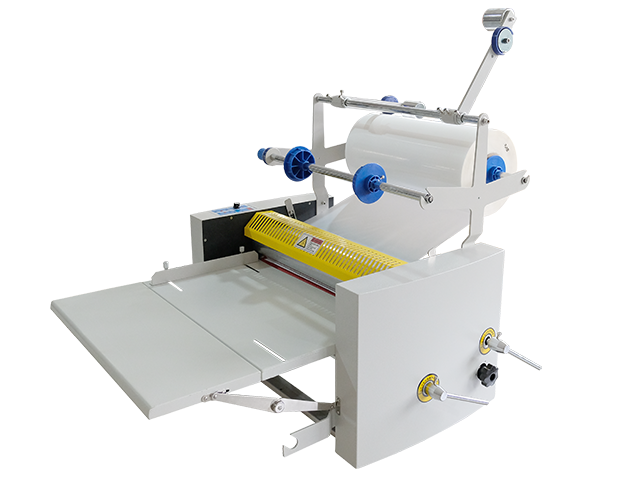

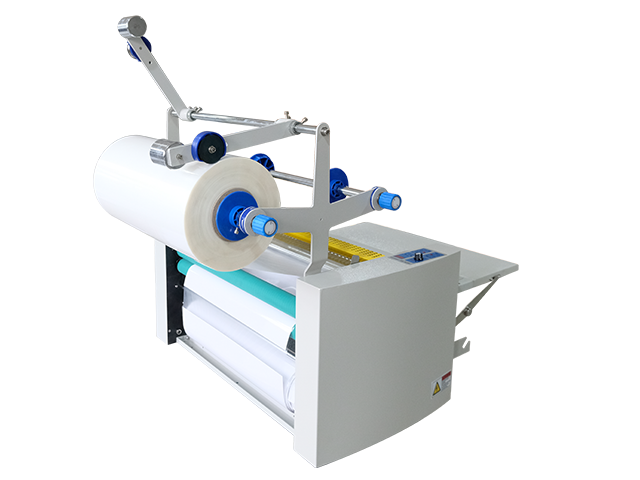

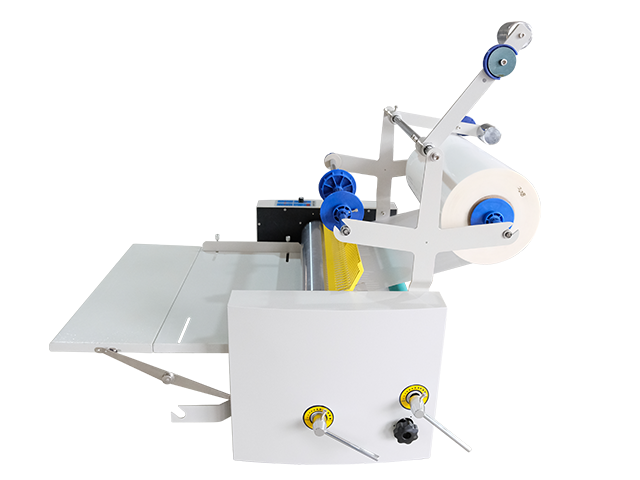

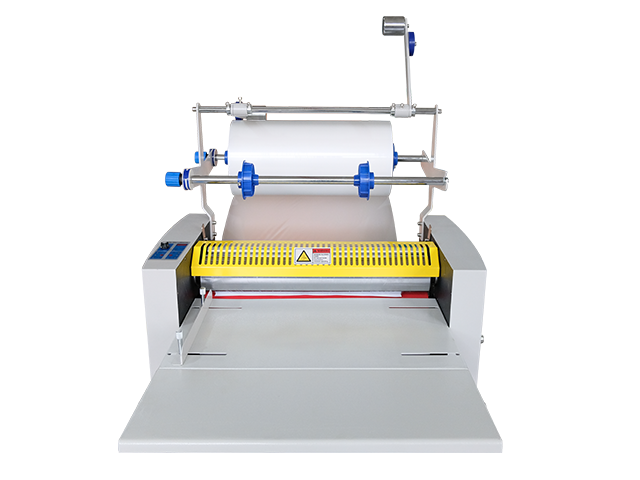

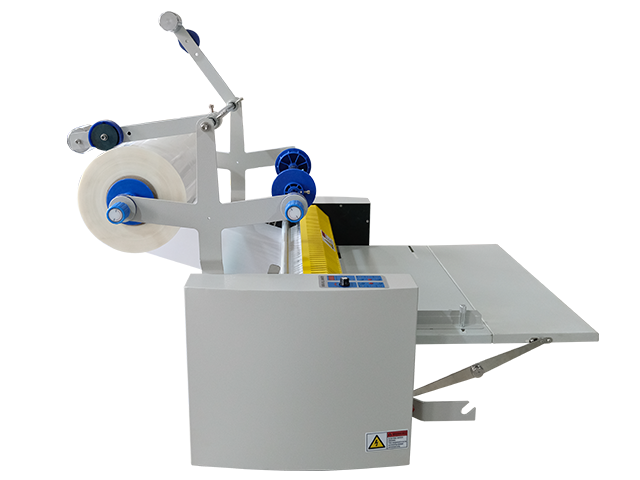

SMFM-505A/505B digital oil heating bronzing laminating machine (with slitting,puching), the aircraft covers an area of small, easy to operate, fast, with automatic temperature control, anti-curl set, using South Korea imported silicone, Table folding, the purchase can not include the base cabinet.Also has a one-time automatic cutting. There is 505B with the rear of the machine roll set.
The machine to pre-coated polyester film as material, can be widely used in digital bronzing,window-type packaging boxes, food boxes, books, drawings, advertisements, certificates and other products of the surface coating, the printed film after the film, waterproof, durable, Clear.
The main machine parameters
|
Model |
SMFM-505A/B |
|
Max paper size |
490x999mm |
|
Mini paper size |
150x150mm |
|
Operating speed |
0-10m/min |
|
Laminatingtemperature |
20-160℃ |
|
Total power |
1.5kw |
|
Dimensions(LxWxH ) |
0.77x0.75x1.14m |
|
paper feeding |
by hands |
|
With slitting function |
with |
|
Anti-curl function |
with |
|
paper thickness |
125~350gsm |
|
Voltage |
220V/50Hz |
