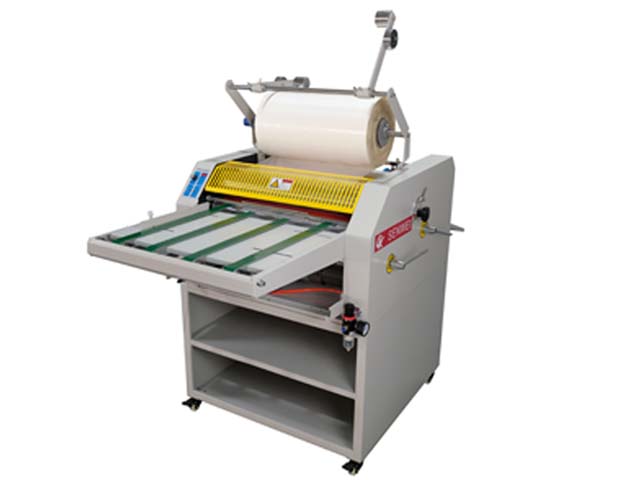

SMFM-390C+/ 520C+/ 650C+digital oil heating semi-automatic laminating machine (with pull off), the aircraft covers an area of small, easy to operate, fast, with automatic temperature control, anti-curl set, conveyor belt into Paper, using South Korea imported silicone. Also has a one-time automatic cutting.Users only need to enter the meter on the need to pull off the length of the paper, you can finish the film off.The machine has a platen for receiving paper。
The machine to pre-coated polyester film as material, can be widely used in window-type packaging boxes, food boxes, books, drawings, advertisements, certificates and other products of the surface coating, the printed film after the film, waterproof, durable, Clear.
The main machine parameters
|
Model |
SMFM-520C+ |
|
Max paper size |
485x570mm |
|
Mini paper size |
150x150mm |
|
Operating speed |
0-13m/min |
|
Laminatingtemperature |
50-120℃ |
|
Total power |
2kw |
|
Dimensions(LxWxH ) |
1.6x0.8x1.2m |
|
Pressure |
0.1~0.5MPa |
|
Voltage |
220V/50Hz |
|
Feeding mode |
by hands |
|
With overlap |
with |
|
With slitting function |
with |
|
Anti-curl function |
with |
|
Rolling-up after lamianting |
No |
|
Automatic disconnecting after laminating |
Yes |
|
paper thickness |
125~350gsm |
