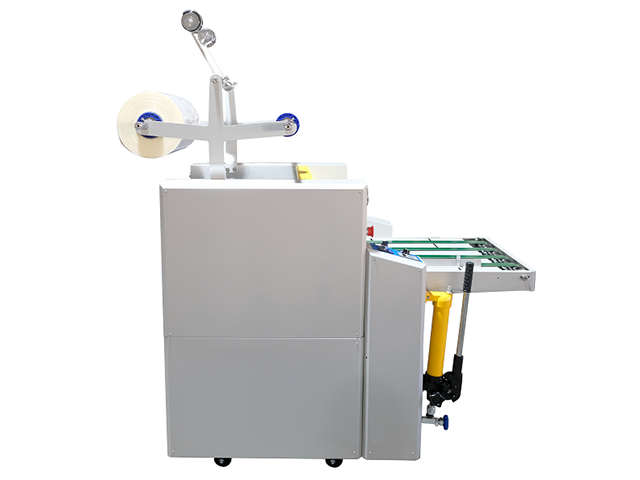

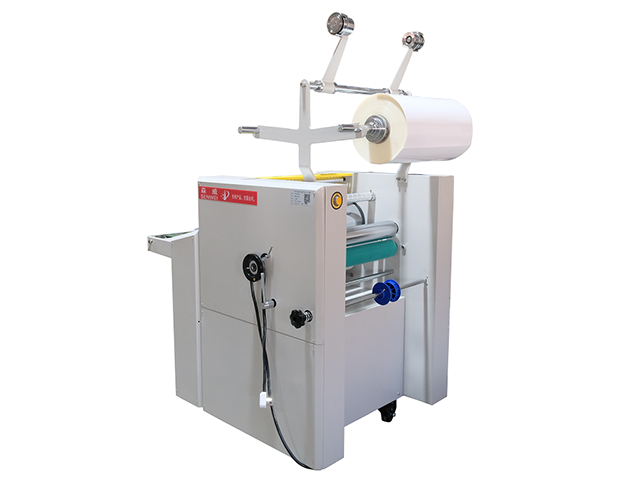

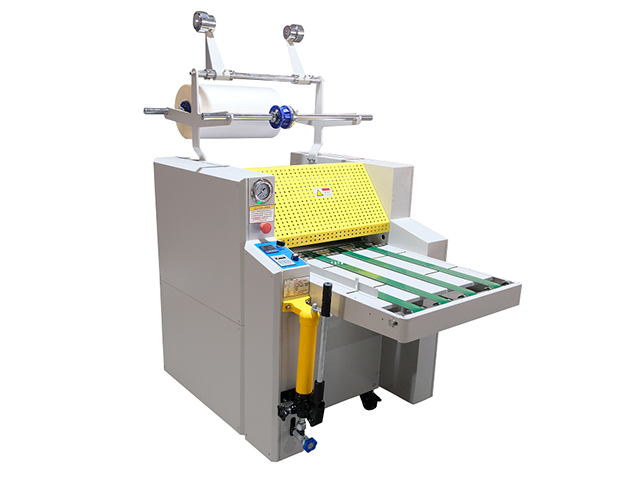

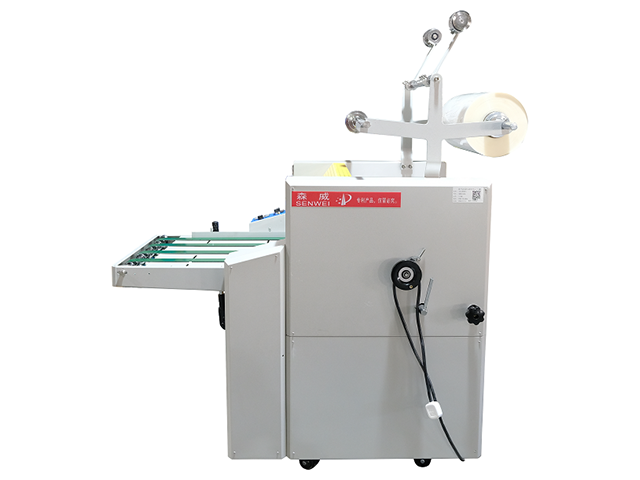

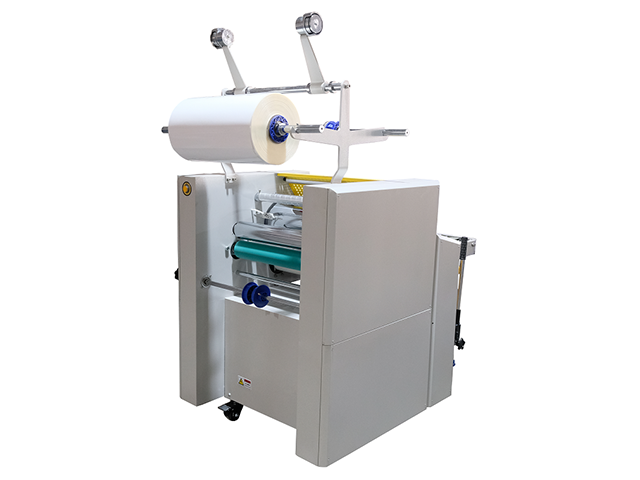

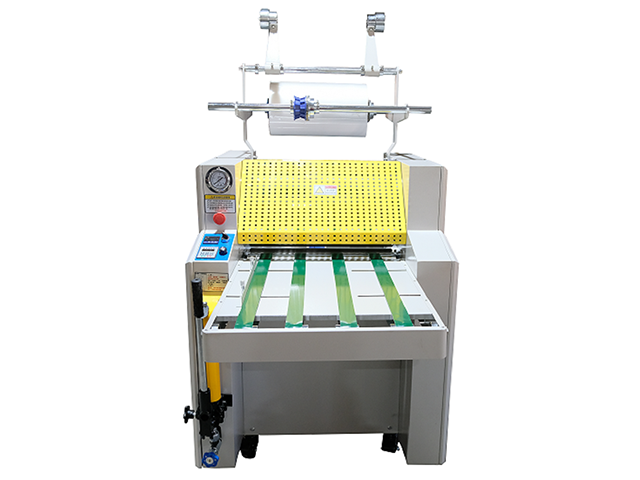

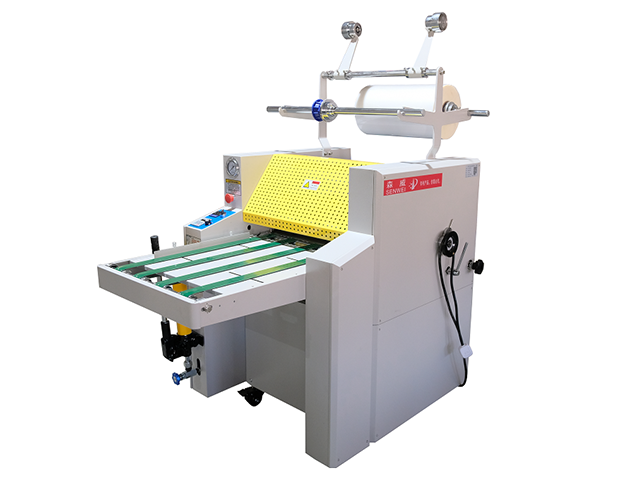

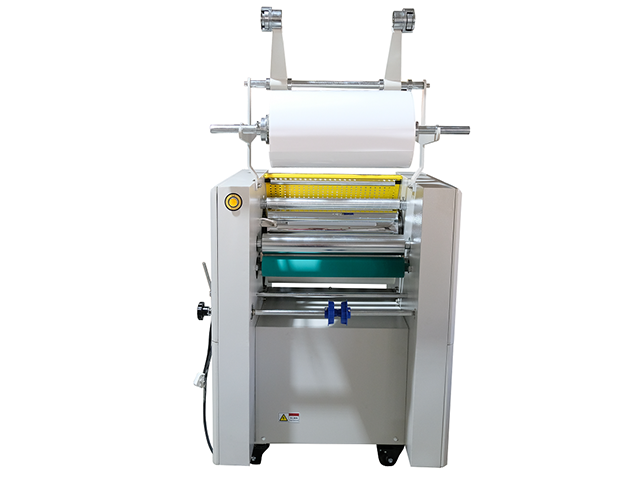

What we are showing you now is model SWFM520A.This model max paper width is 490 millimeter.Length not limited.This model feed paper by handle.After laminating with rewinding collection.All machines’ heating rollers of our company are equipped with oil heating system, which can solve the problem that Allover black, red and green and will not appear white spots.Other companies are using electric heating in heating system. Electric heating will appear white spots.Our steel roller’s diameter is 240mm.Pressure roller imported silica gel.Our pressure roller is pressure resistant, non stick and explosion-proof.The pressure uses hydraulic pressure. This model uses Speed regulating motor. The speed is 25 meters per minute. And our machine has Anti-curl function. Thinner paper after laminating will not curl.
This machine with polyester film as the material, can be widerly used in packing box, food box, books, drawings, advertisements, certificates and so on, the printing after the film waterproof, durable, clear pattern.
The main machine parameters
|
Model |
SWFM520A+ |
|
Max paper size |
490x999mm |
|
Mini paper size |
150x150mm |
|
Operating speed |
0-25m/min |
|
Laminatingtemperature |
50-120℃ |
|
Total power |
4kw |
|
Voltage |
220V/50Hz |
|
Dimensions(LxWxH ) |
1.38x0.9x1.4m |
|
Pressure |
3~6Mpa |
|
Feeding mode |
by hands |
|
With slitting function |
with |
|
Anti-curl function |
with |
|
Rolling-up after lamianting |
Yes |
|
Auto splitting after laminating |
No |
