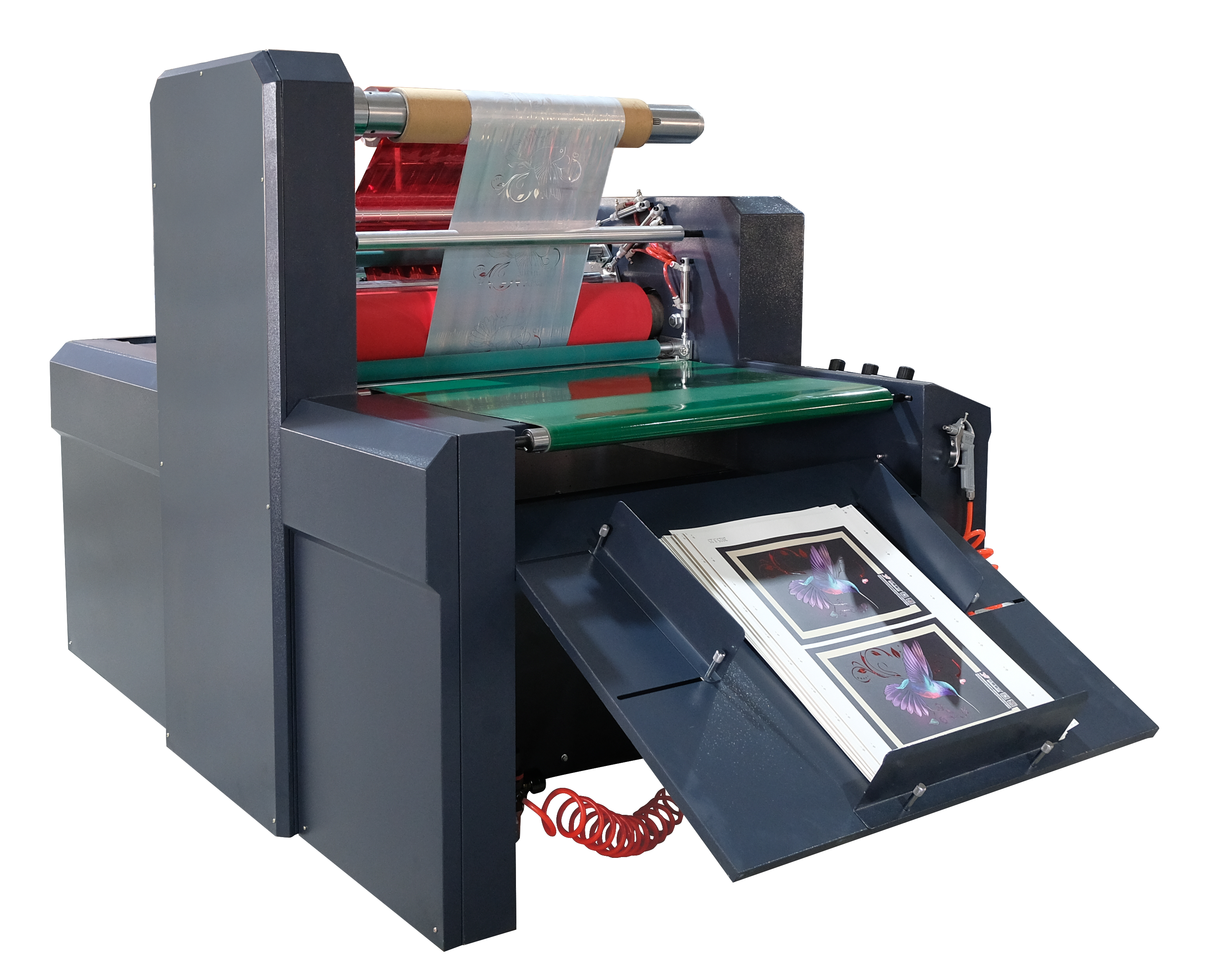

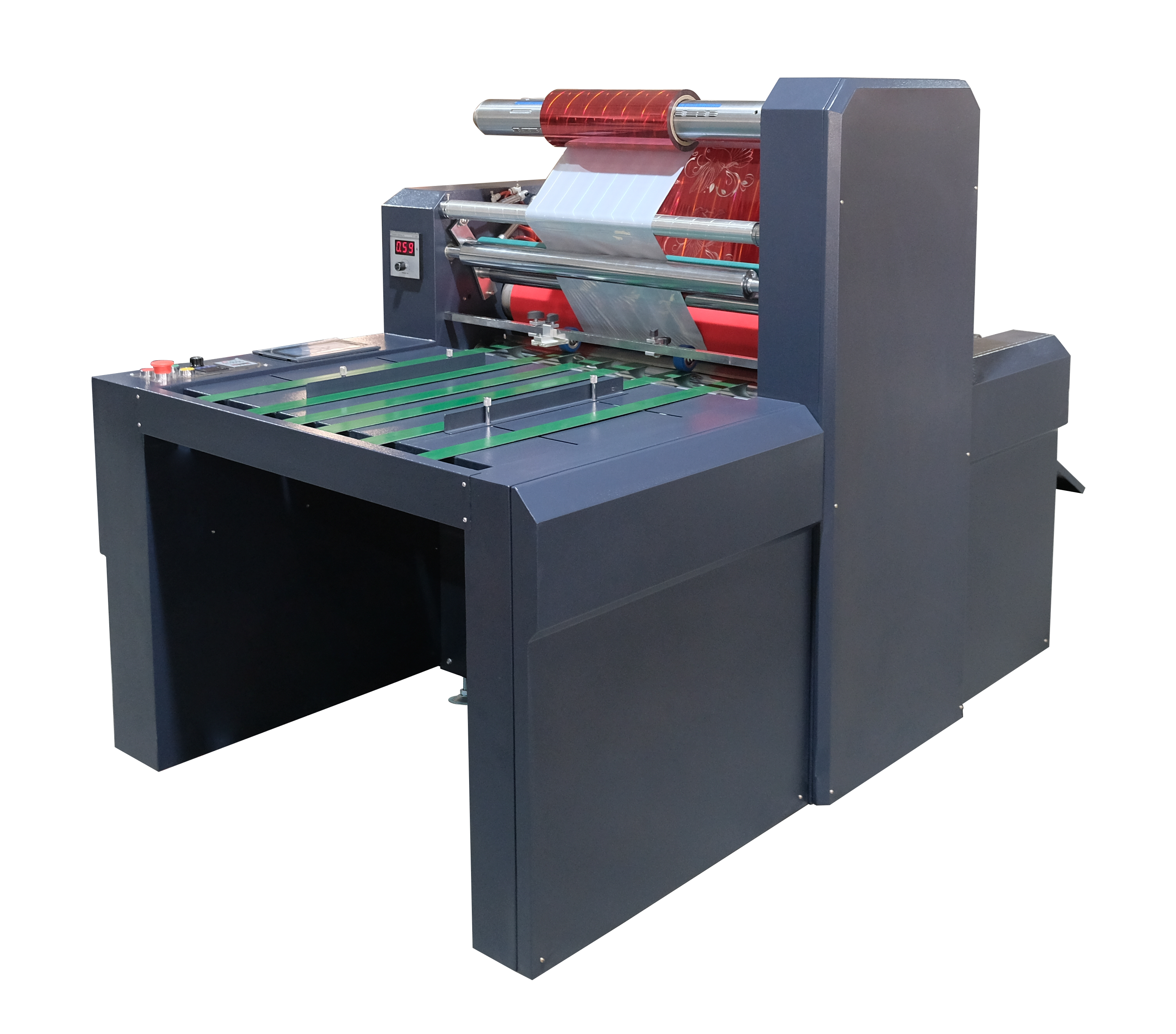

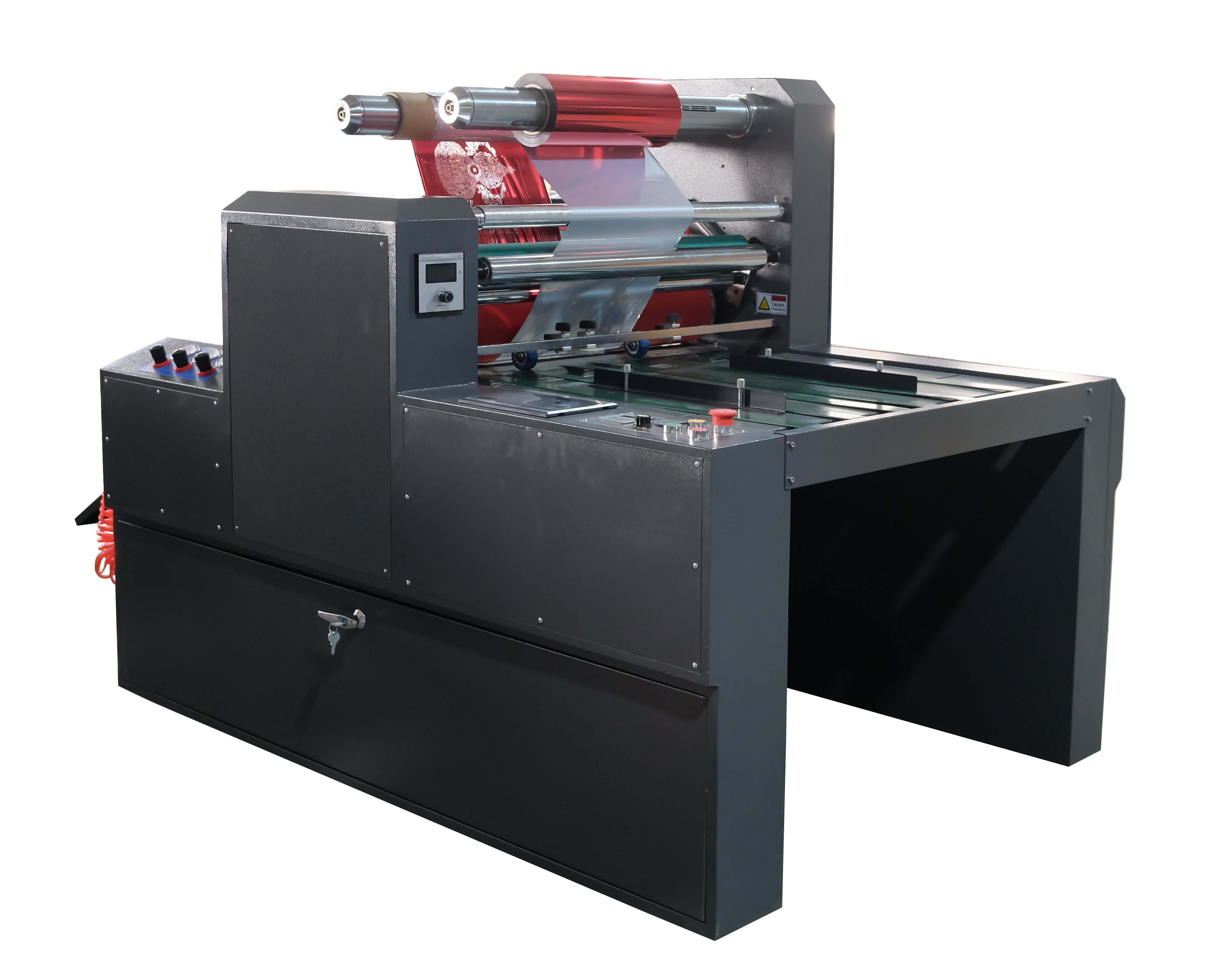

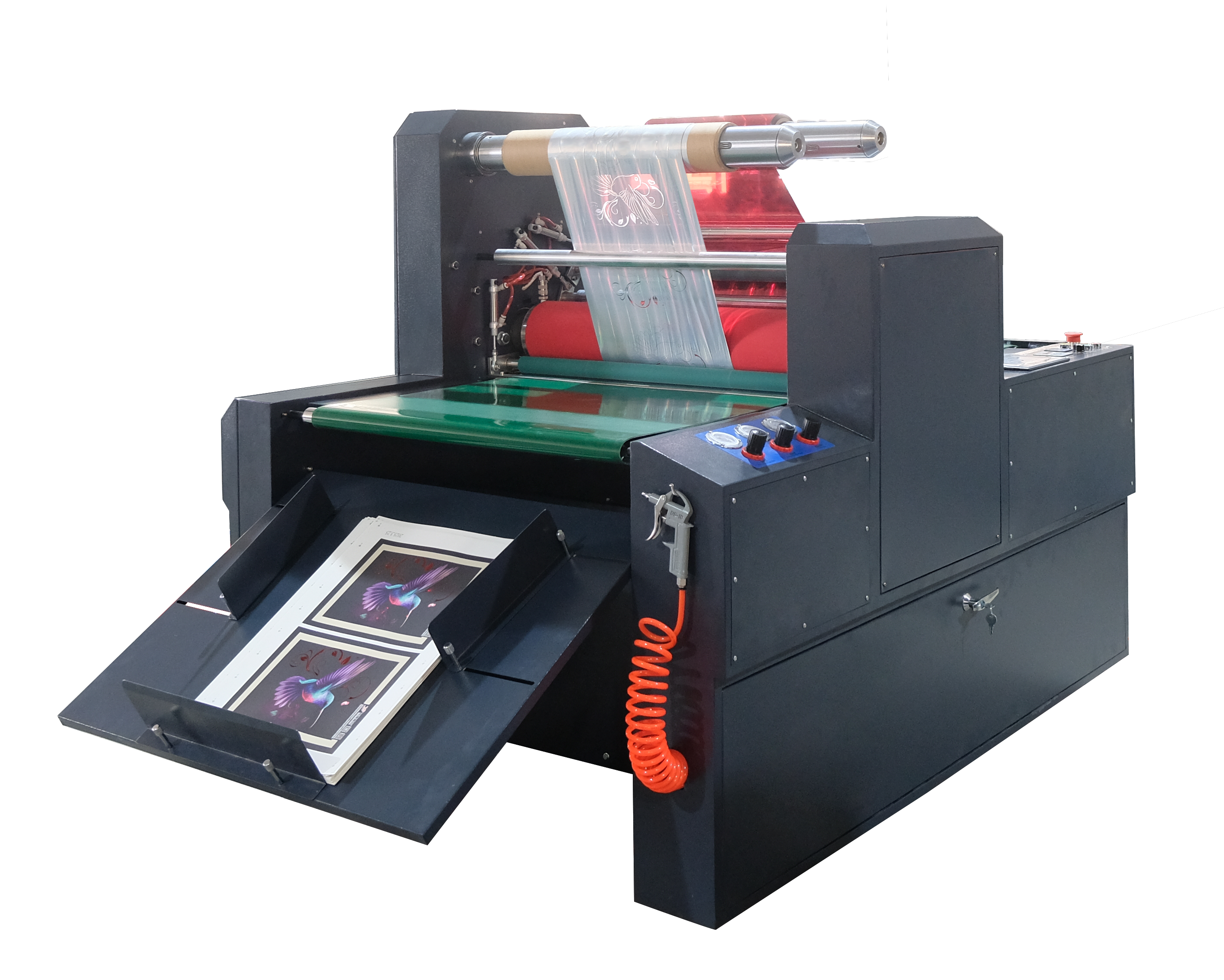

This machine is an oil-heated foil stamping unit featuring a step-feed function, suitable for various hot and cold stamping processes—including self-adhesive labels, water-slide decals, and UV transfers. It utilizes a control system integrating PLC, photoelectric positioning, and a touchscreen interface, allowing for customizable step-feed settings to minimize foil waste. Equipped with a variable-frequency motor for stepless speed control, it accommodates diverse paper types and production speeds. The 3-inch air-expanding shaft unwinding mechanism ensures secure and convenient material loading while effectively preventing foil misalignment. The finished product features a smooth, tight stamping finish with precise registration and crisp, durable text.
Main Machine Parameters

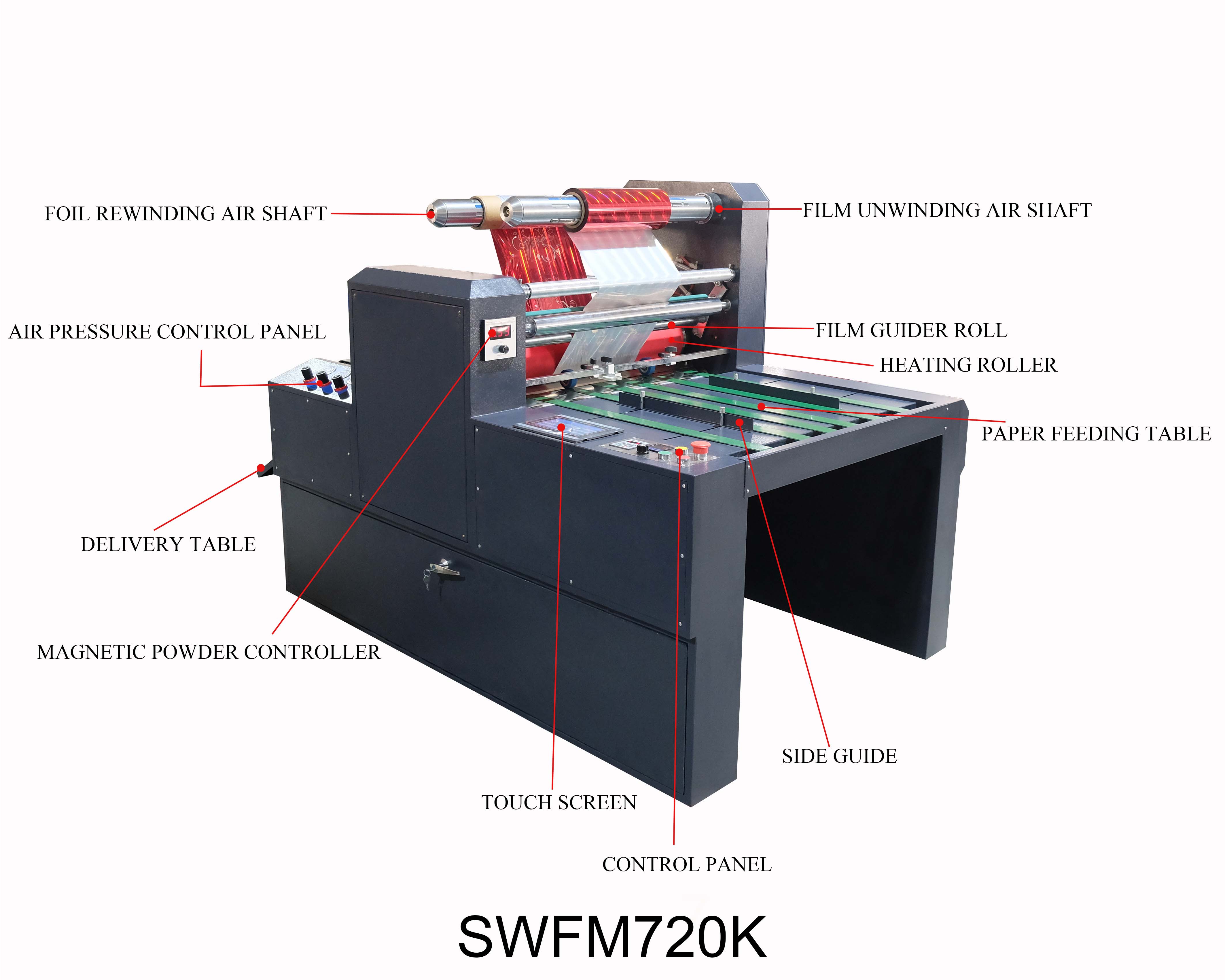

| Model | SWFM720K |
| Maximum hot stamping width | 700mm |
| Maximum temperature | 130°C |
| Manually set the number of jumping steps | 1-9 times |
| Automatically set the number of jumping steps | 1-999time |
| Monitor | touch screen |
| Control method | PLC Controller |
| Motor | Frequency conversion motor |
| Film laying/film collection | 3 inch core air shaft |
| Power supply | 220V 50/60HZ |
|
Total power |
3.7kw |
|
Dimensions(LxWxH) |
2.2X1.16X1.39m |
