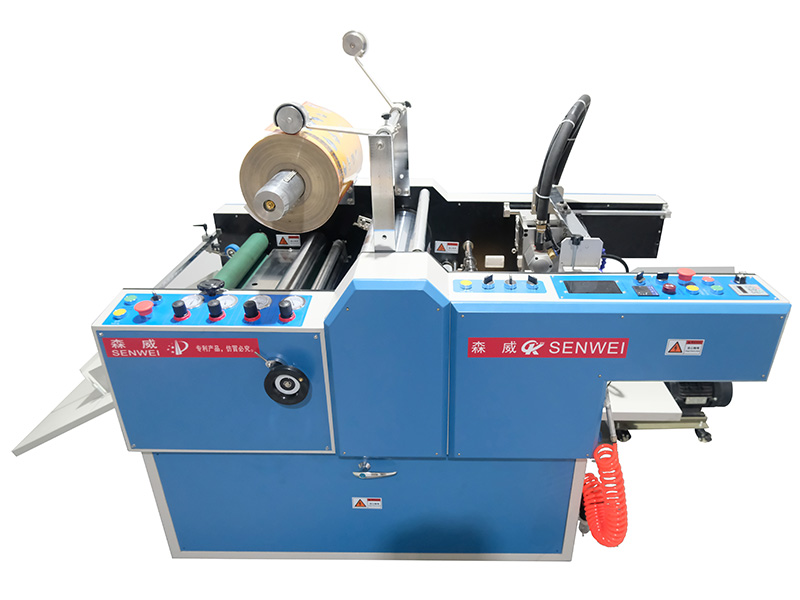

SL-400F/540F Hydraulic oil heating fully automatic laminating machine, pneumatic paper feeding with vacuum pump.Machine is equipped with no paper miss sensor, which are controlled by photoelectric and mechanical systems. When no paper or paper break occurs, the machine will stop automatically for self-protection.The film release rack is equipped with a gas expansion shaft.Paper feeding mode: servo motor feeding,With anti-curl function.The machine to pre-coated polyester film as material, can be widely used in window-type packaging boxes, food boxes, books, drawings, advertisements, certificates and other products of the surface coating, the printed film after the film, waterproof, durable, Clear.
The main machine parameters
|
Model |
SL-400F |
|
Max paper size |
560x370mm
|
|
Mini paper size |
210x250mm |
|
Operating speed |
0-25m/min |
|
Laminatingtemperature |
25-150℃ |
|
Total power |
4kw |
|
Dimensions(LxWxH ) |
1.95x0.83x1.3(M)
|
|
paper feeding |
Automatic |
|
With slitting function |
with |
|
Anti-curl function |
with |
|
paper thickness |
125~350gsm |
|
Voltage |
220V/50Hz |
