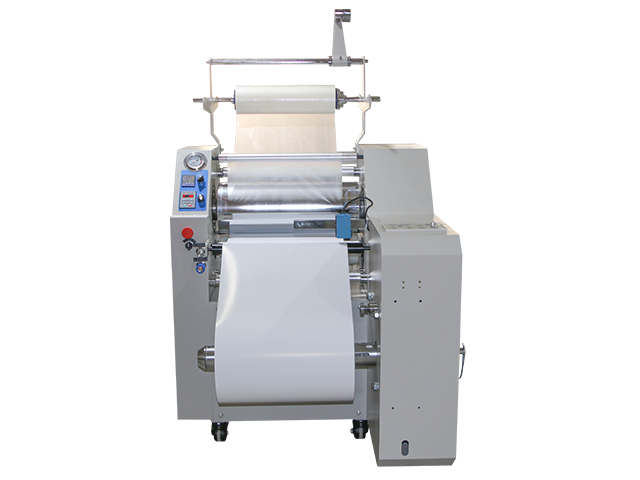

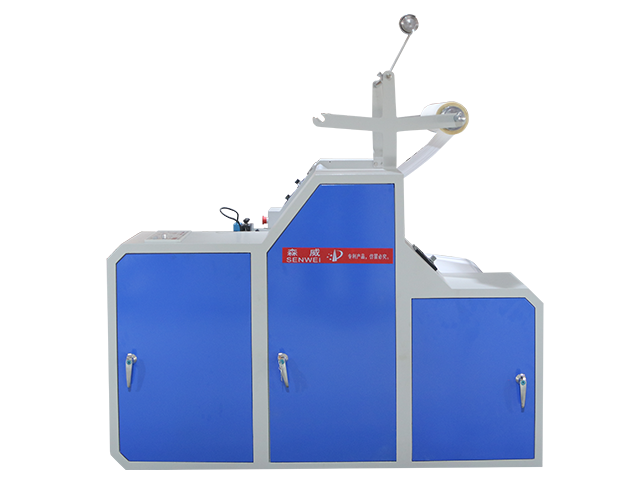

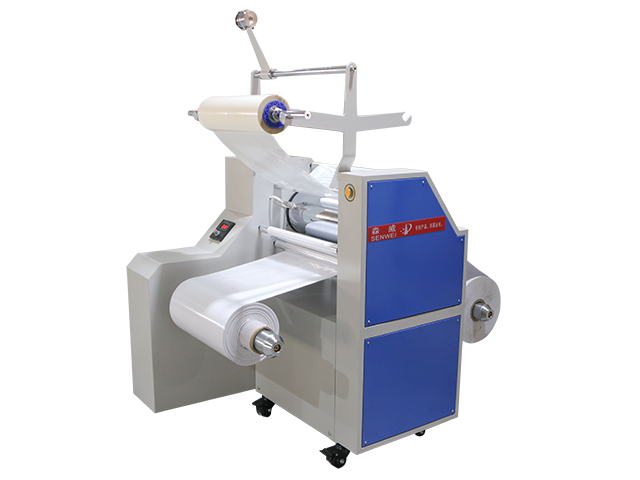

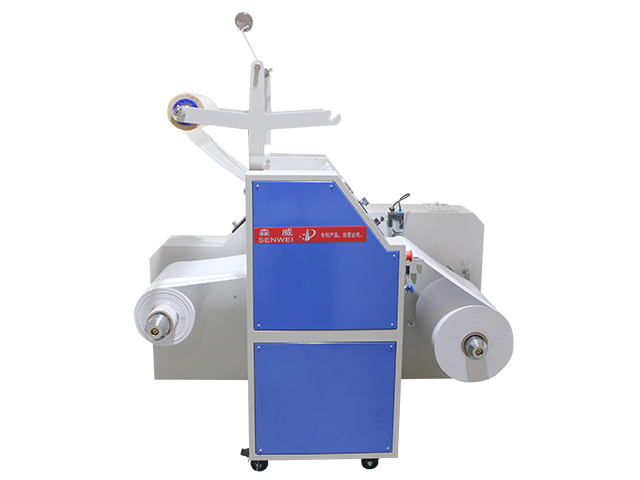

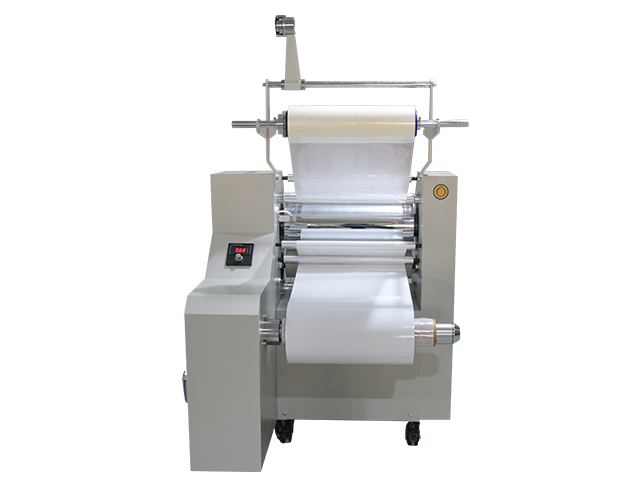

The SWFM520J is a roll to roll hydraulic oil heating laminating machine. it has an intelligent deviation correction control system .An inflation shaft is toplace and rewind products. Adjustable tension, magnetic powdercontrol.Energy-saving frequency converter controls the decelerating motor to adjust the speed.High pressure automatic hydraulic pump provides and release pressure. The heating roller is treated with high brightness mirror.The pressure roller uses imported silicone material,which is pressure resistant and high temperature resistant and non-adhesive.
The main machine parameters
| Model | SWFM520J |
| Max Paper Width | 460 mm |
| Max diameter film can put | 45 cm |
| Operating Speed |
0-25 m/min |
| Laminating Temperature | 0-120℃ |
| Pressure | 3-8 Mpa |
| Total Power | 4Kw |
