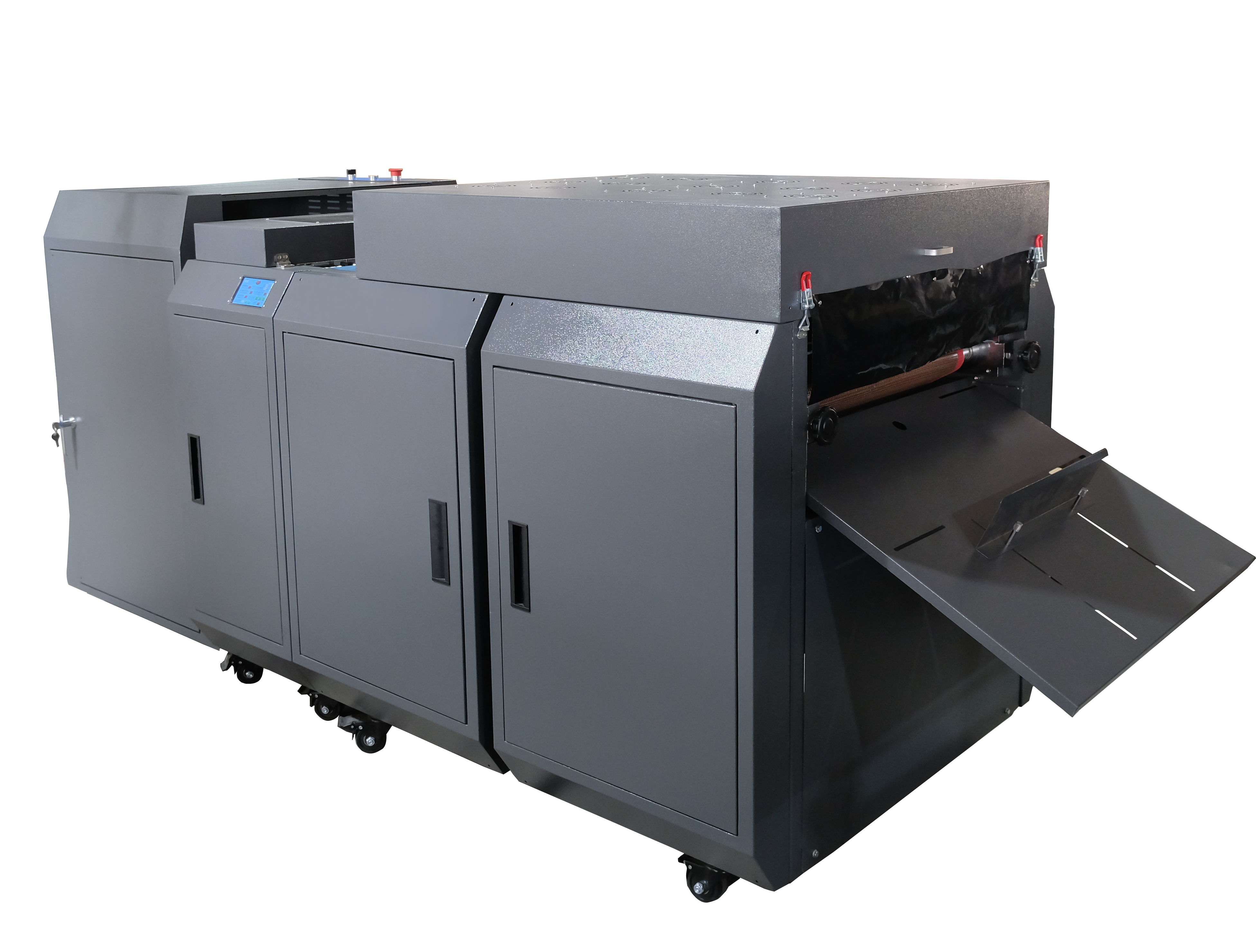

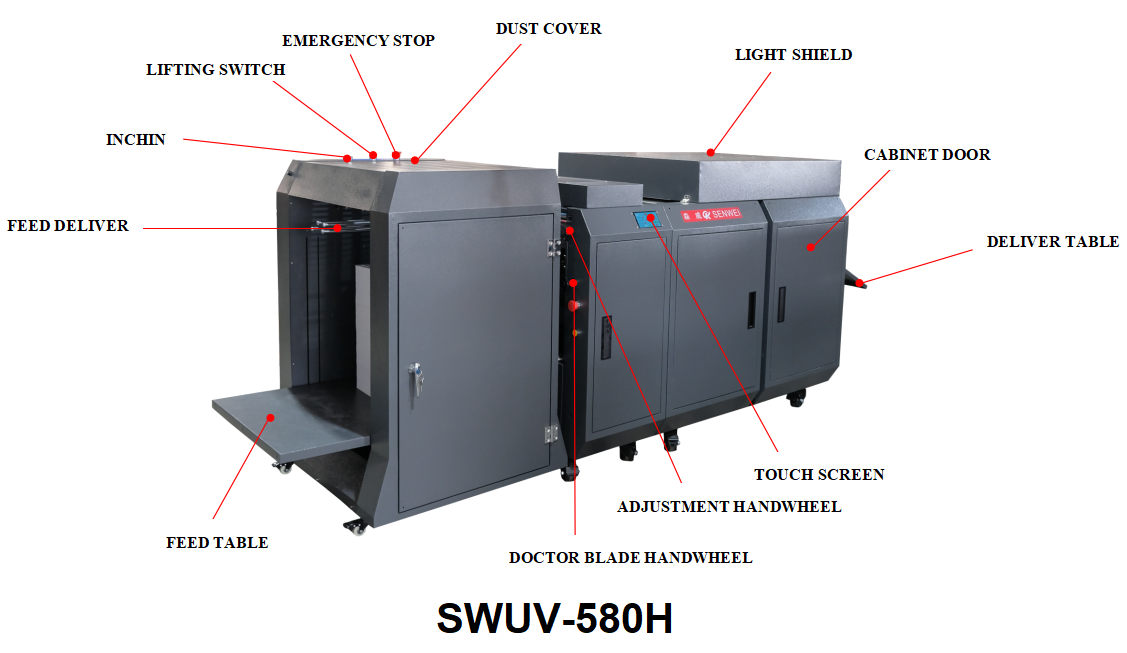

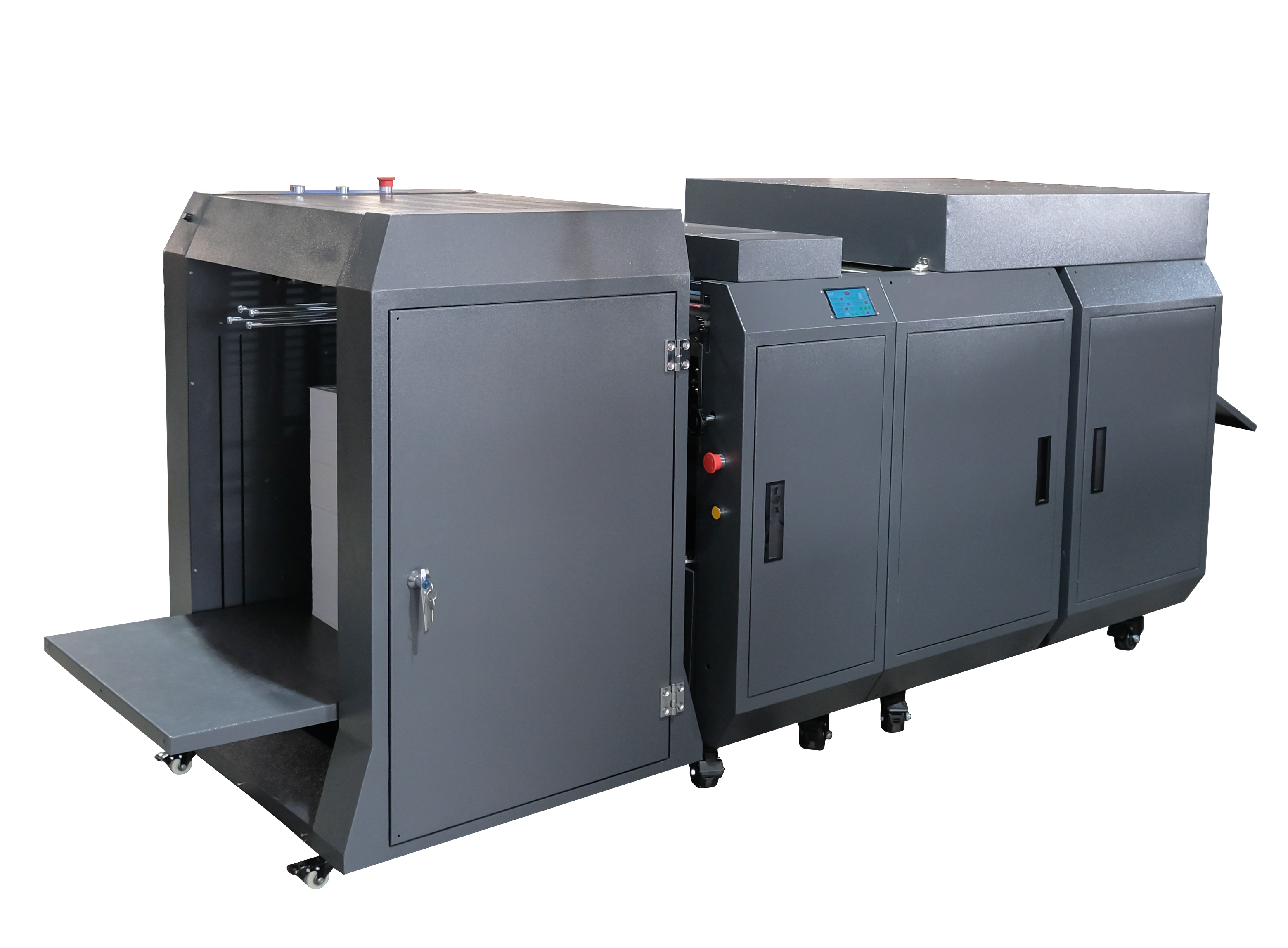

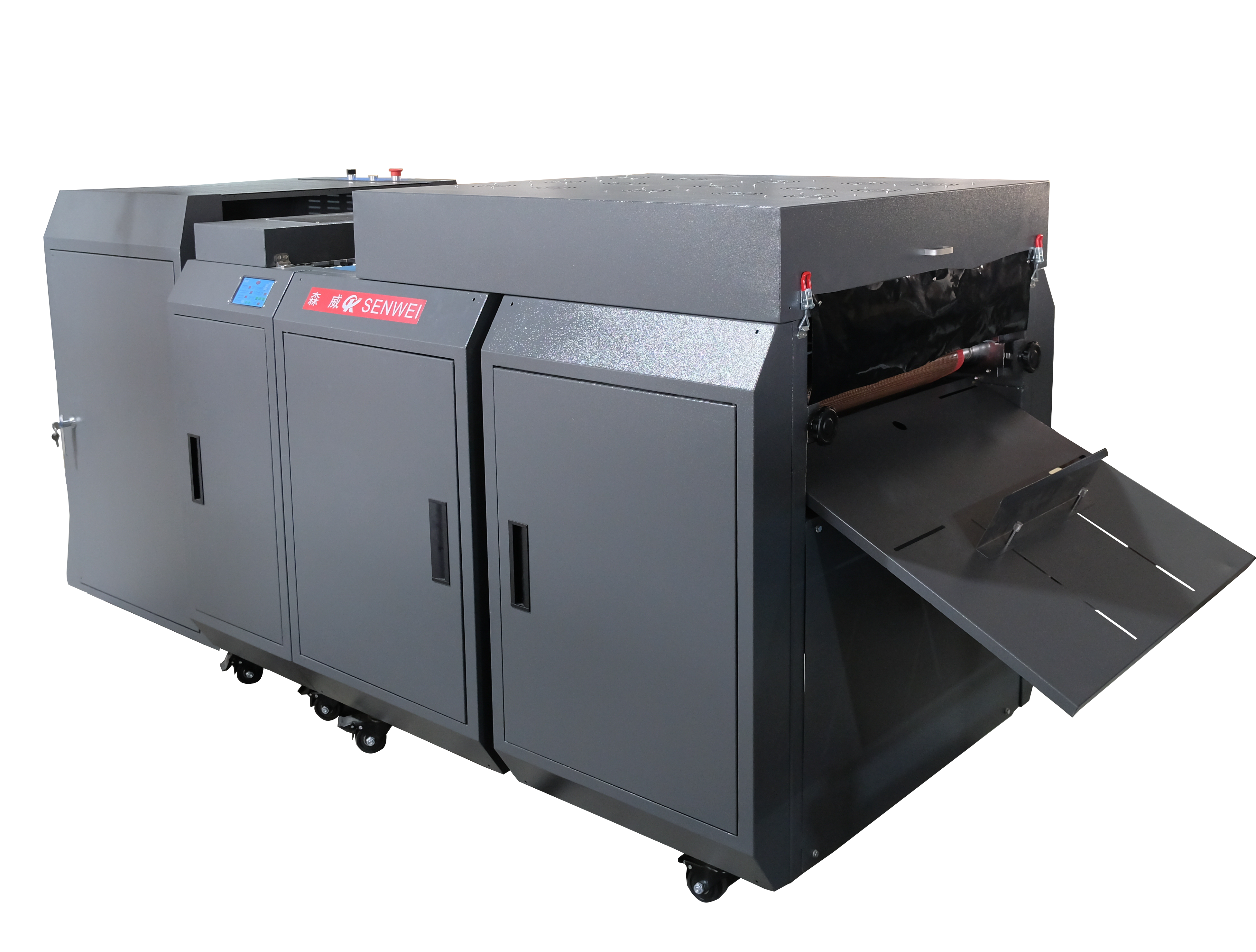

SWUV-580H infrared heating UV coating machine (with UV curing), the machine runs smoothly with adjustable processing speed, easy to operate, high production efficiency, with infrared preheating plus UV curing setting, Using teflon high temperature resistant mesh belt and gas spring structure. Also equipped with matched cooling fan for heat dissipation.
The machine takes UV coating liquid as processing material, can be widely used in cartons, packaging bags and other packaging products of the surface UV coating, the finished product after UV coating, wearproof waterproof, bright gloss, durable and beautiful appearance.
The main machine parameters
| Parameter | SWUV-580H |
|---|---|
| Max.sheet size | 560×700mm |
| Min.sheet size | 150×210mm |
| Sheet weight | 157-500g/㎡ |
| Speed | 0-15m/min |
| Total Power | 6kw |
| UV lamp | 1pcs×4kw |
| IR lamp | 5pcs×0.8kw |
| Dimension(L×W×H) | 3.3×1.380×1.165m |
| Maximum height of paper | 550mm |
