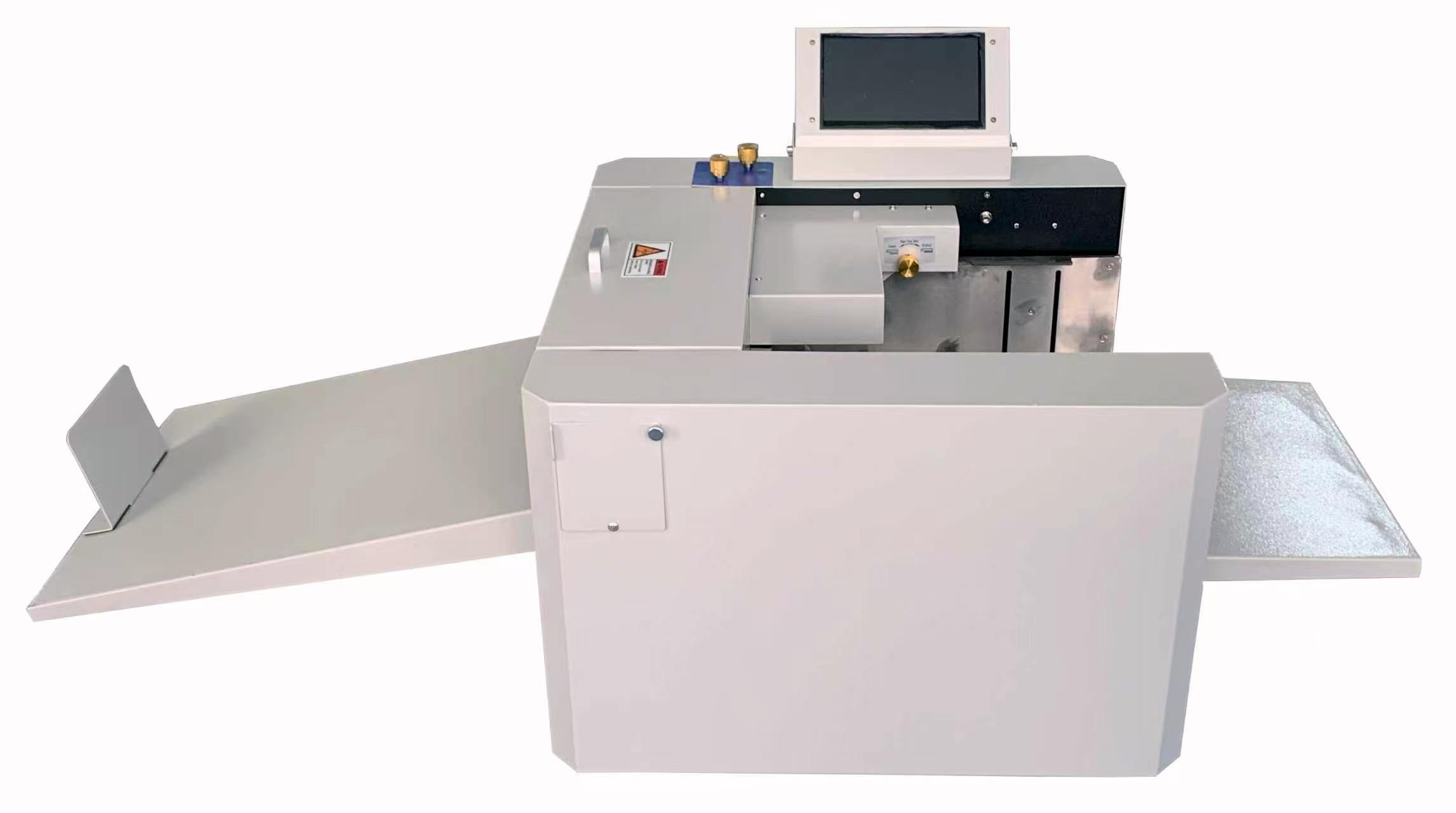

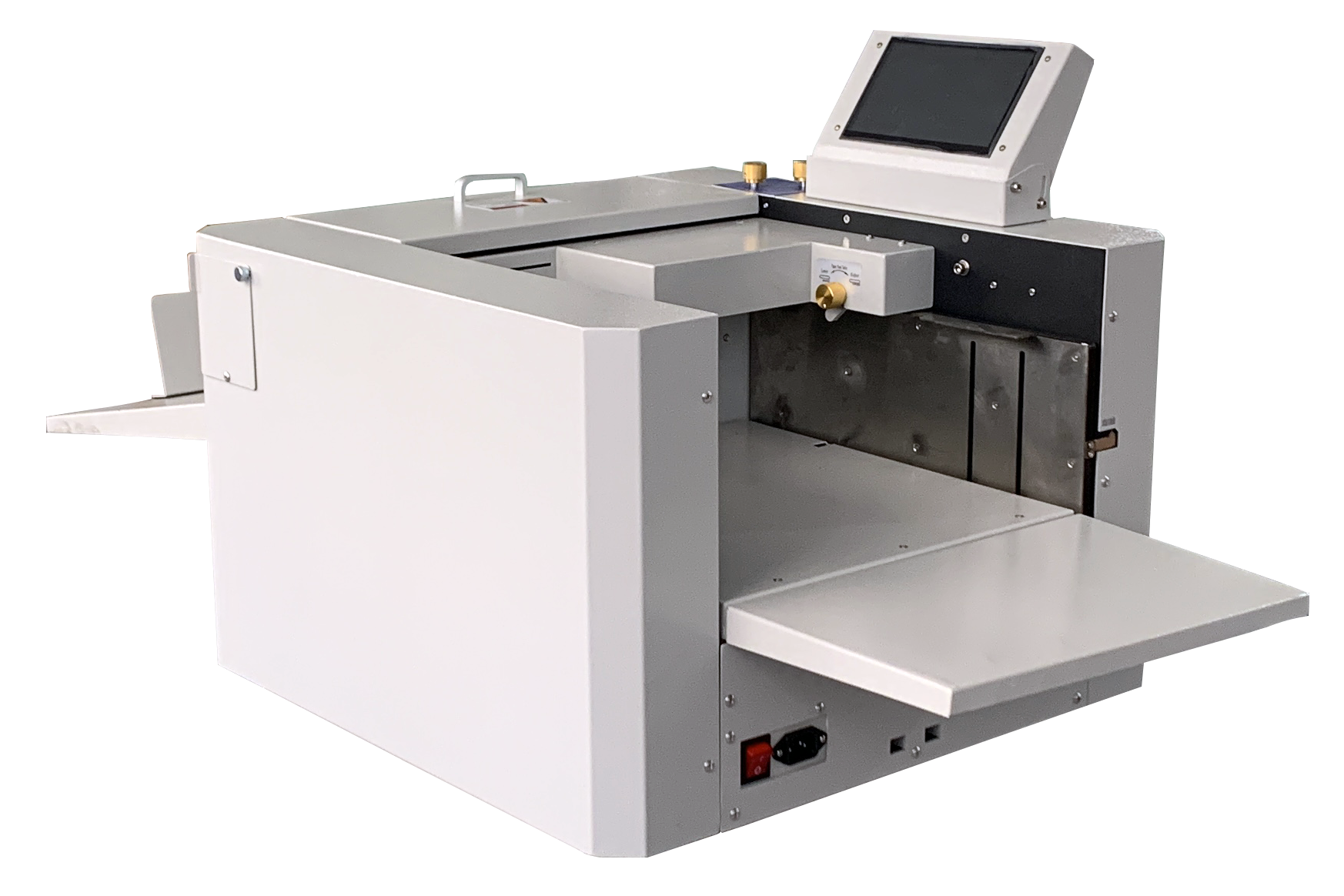

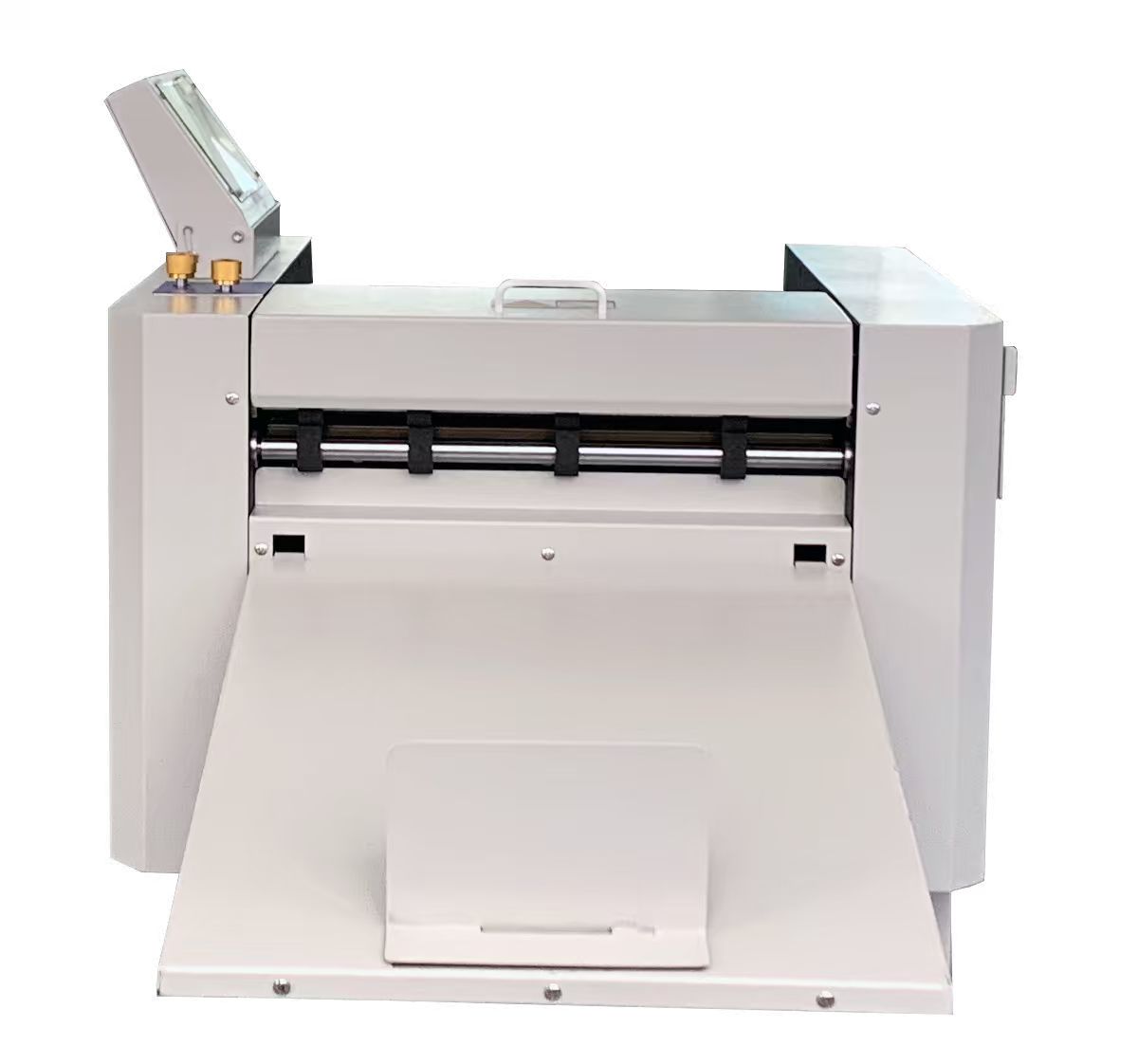

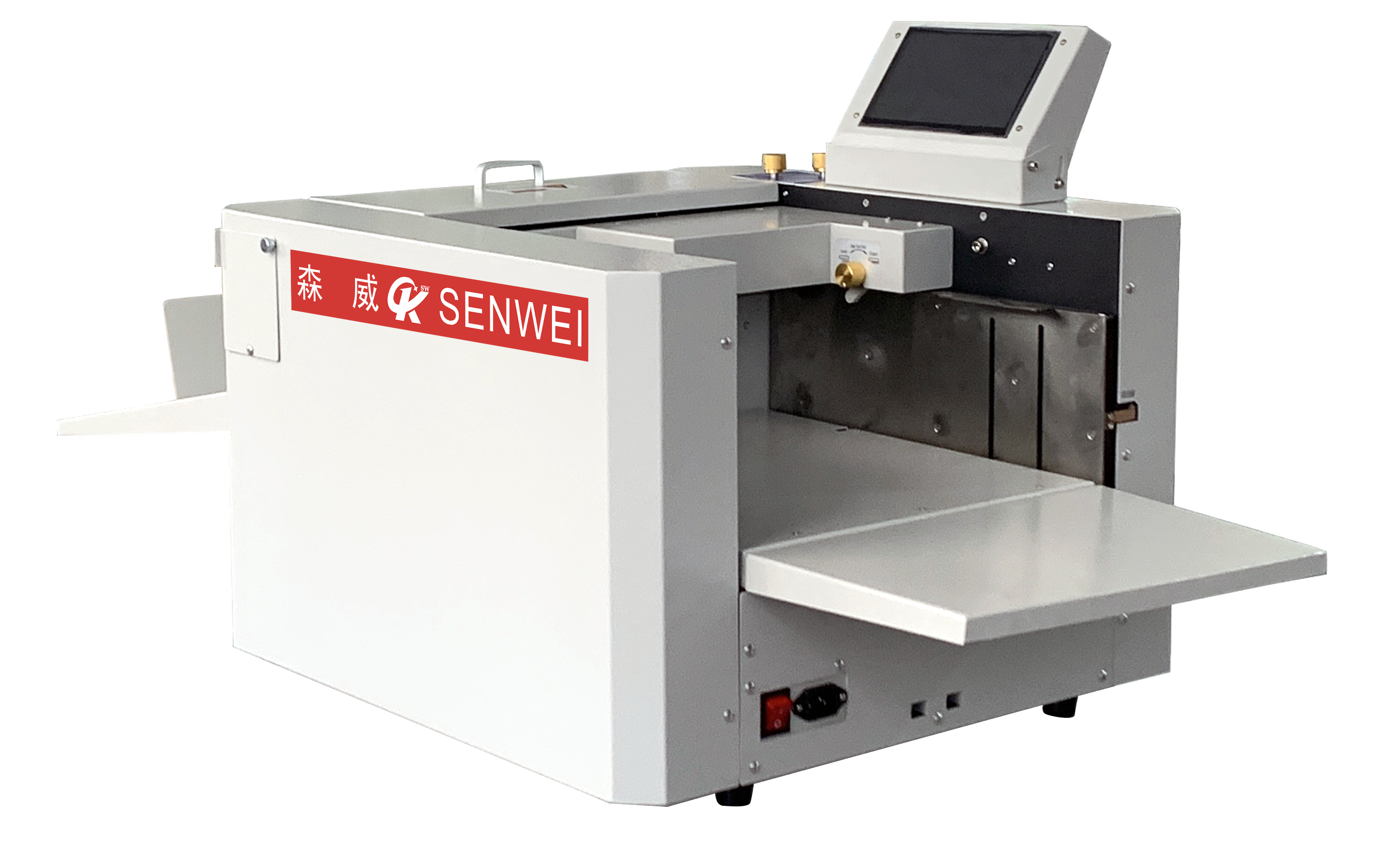

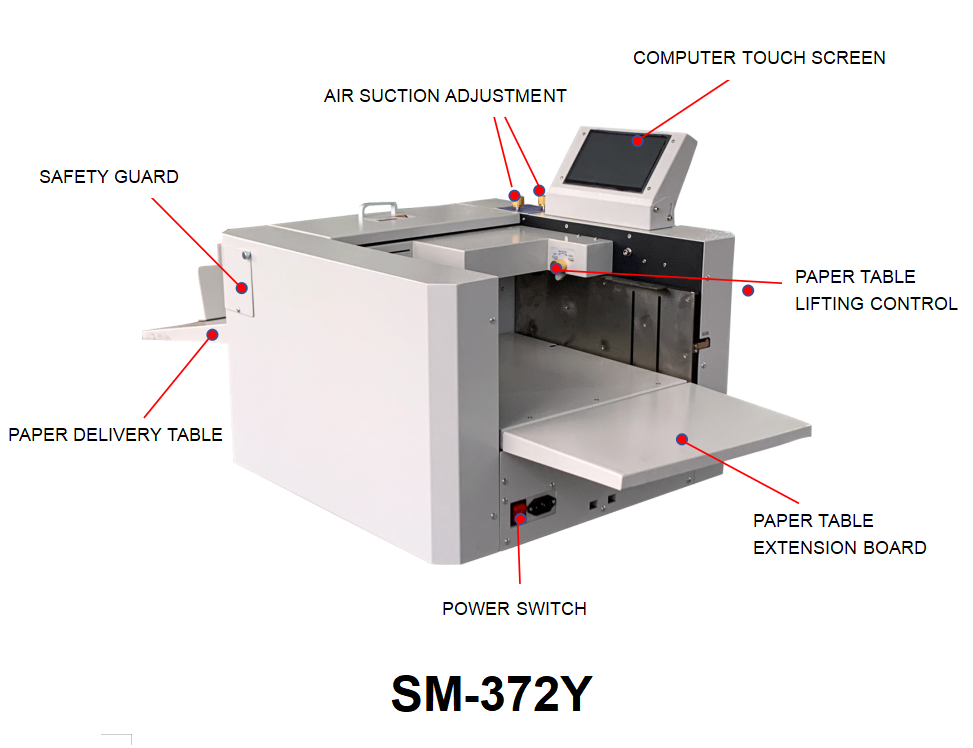

The SM-372Y is a smart digital fully automatic creasing machine.lt has large screen computer touch screen to operate and is optional to equip with a bottom cabinet. it has a suction paper feeding device to feed papers stably and a big capacity to place papers and an adjustable paper tilt. It is with 32 indentation and has creasing function cover function ,progressive creasing and variable creasing.It can store data.There are two types of tools,indentation and dotted line. There is no need to adjust the conversion between the two. The indentation depth is infinitely adjustable, and the dotted line ispicked with blades imported from Japan,strong penetration and high precision.
The main machine parameters
|
Model |
SM-372Y |
| Max Feed Size | 335 x 655 mm |
| Min Feed Size | 210 x 297 mm |
| Operating Speed | 3850 sheets/hour |
| Max number of creasing tracks | 32 group |
| Thickness of creasing tracks | 100-350g |
| Thickness of dotted line paper | 128-200g |
| Working Accuracy | ±0.3 mm |
| Power | 220V/50Hz |
| Total Power | 195W |
| Maximum height of paper | 110 mm |
