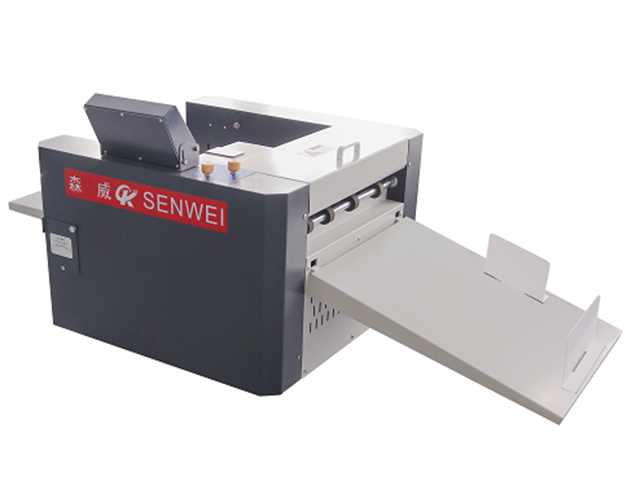

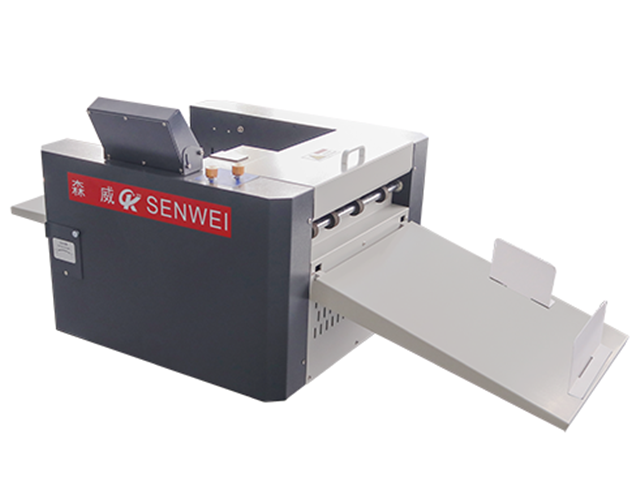

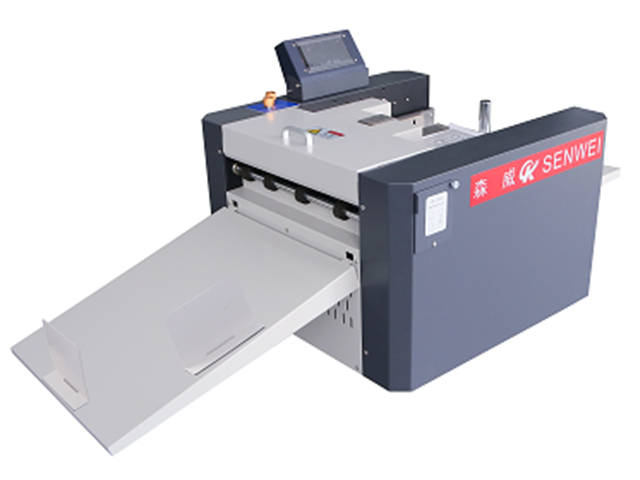

The SM-373Y is a smart digital fully automatic fast speed creasing machine.lt has computer touch screen to operate and is optional to equip with a bottom cabinet. If you crease one line one time,its speed is at 5000 sheets per hour.It has a suction paper device to feed papers stably and fastly.lt has high-power suction and wind, stable fuselage structurelt has a big capacity to place papers and anadjustable paper tilt.It is with 32 indentation and has creasing function.cover function ,progressive creasing and variable creasing.It can store data.There are two types of tools, indentation and dotted line. There is no need to adiust the conversion between the two.Theindentation depth is infinitely adjustable, and the dotted line is picked with blades imported from Japan,strong penetration and high precision.
The main machine parameters
|
Model |
SM-373Y |
|
Max Feed Size |
335 x 655 mm |
|
Min Feed Size |
210 x 297 mm |
|
Operating Speed |
5000 sheets/hour |
|
Max number of creasing tracks |
32 group |
|
Thickness of creasing tracks |
70-350g |
|
Thickness of dotted line paper |
70-300g |
|
Working Accuracy |
±0.3 mm |
|
Power |
220V/50Hz |
|
Total Power |
500W |
|
Maximum height of paper |
110 mm |
