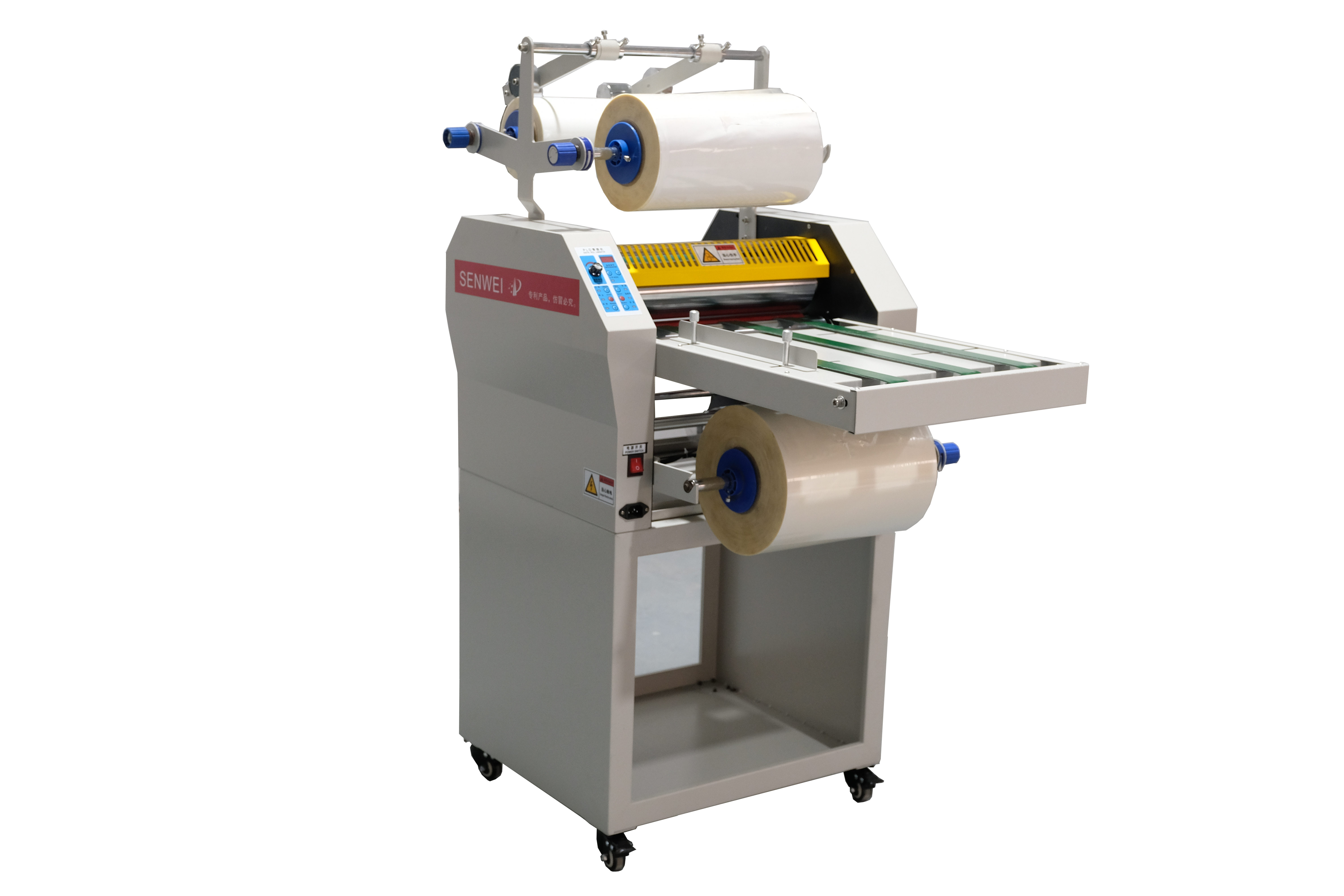

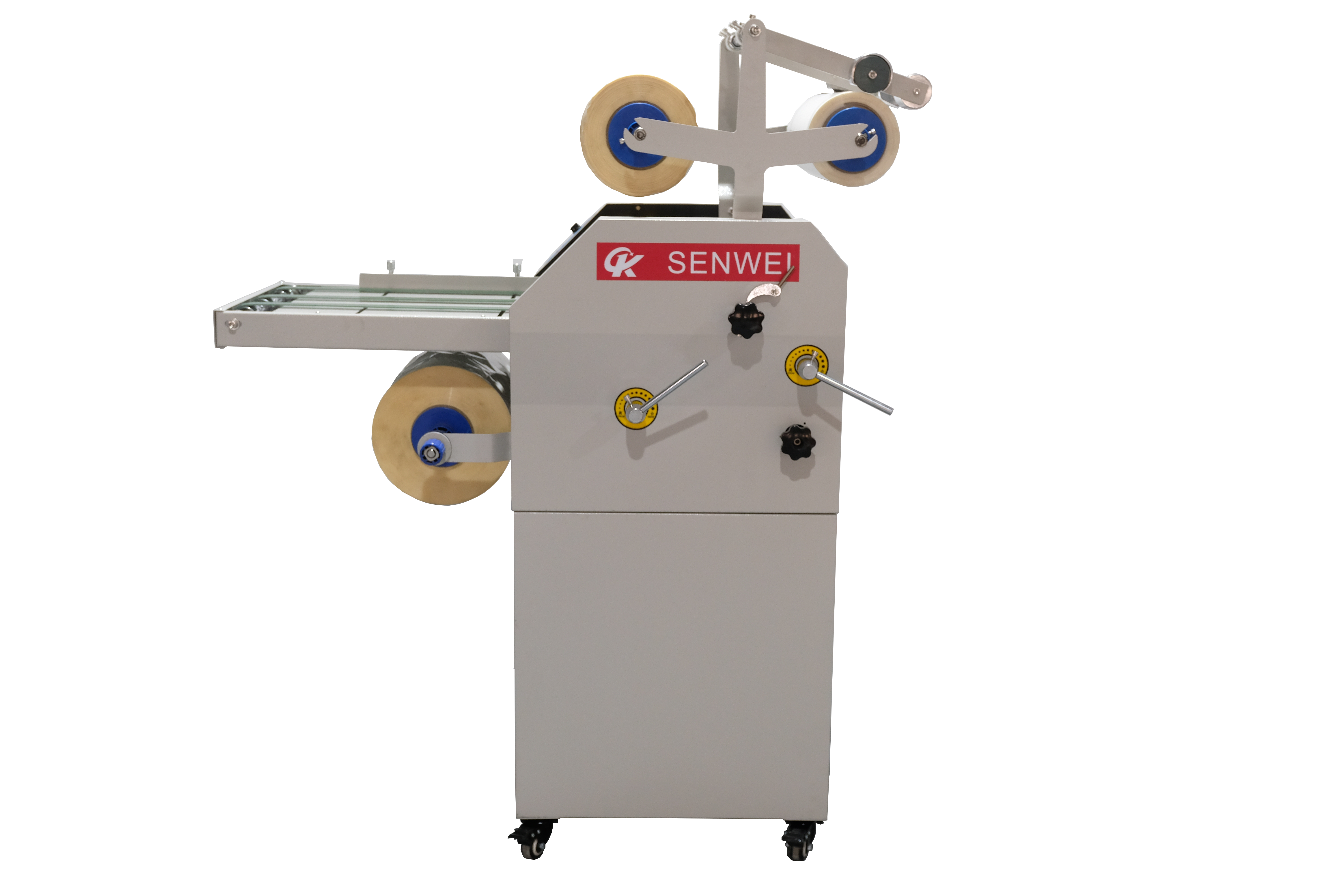

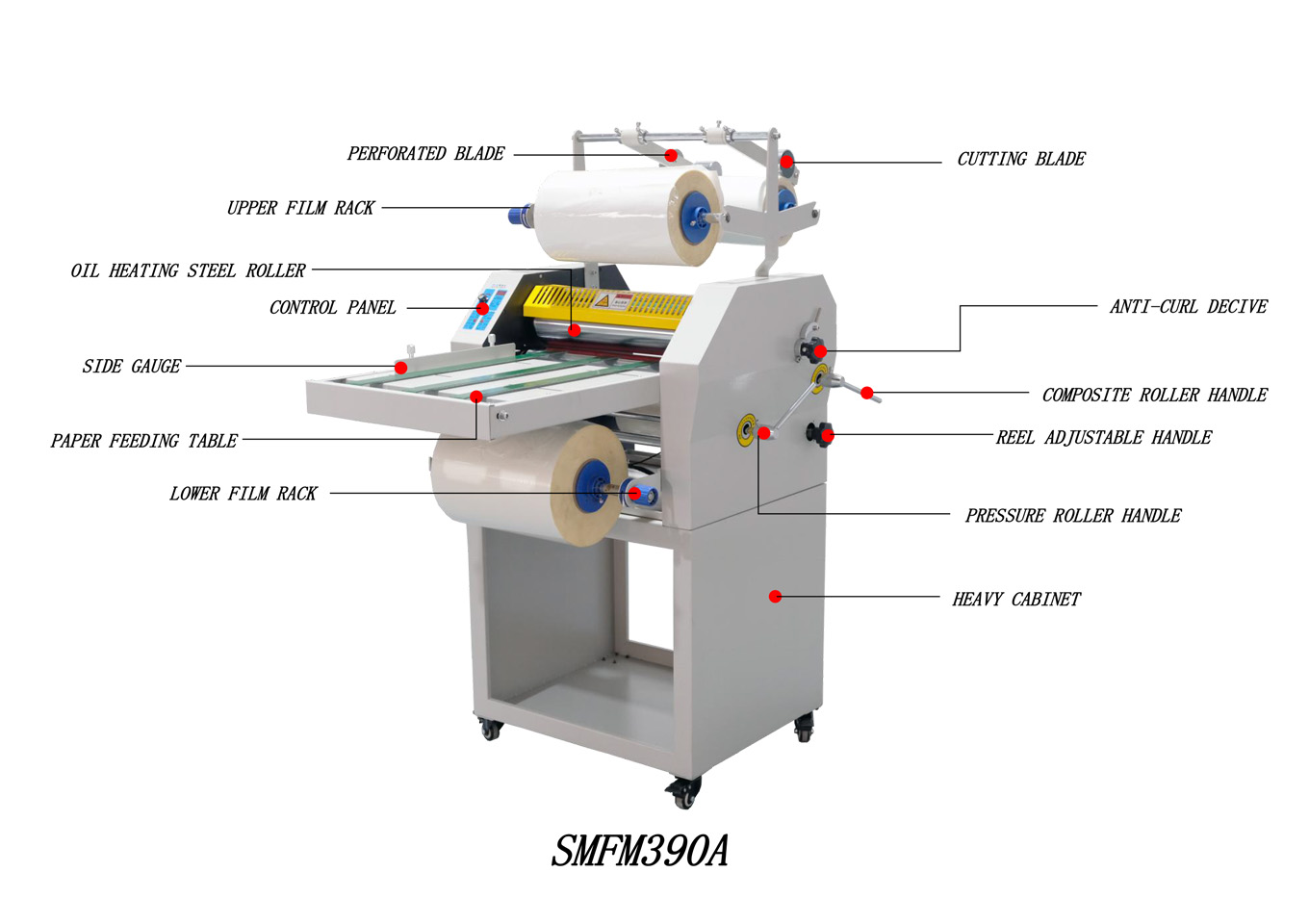

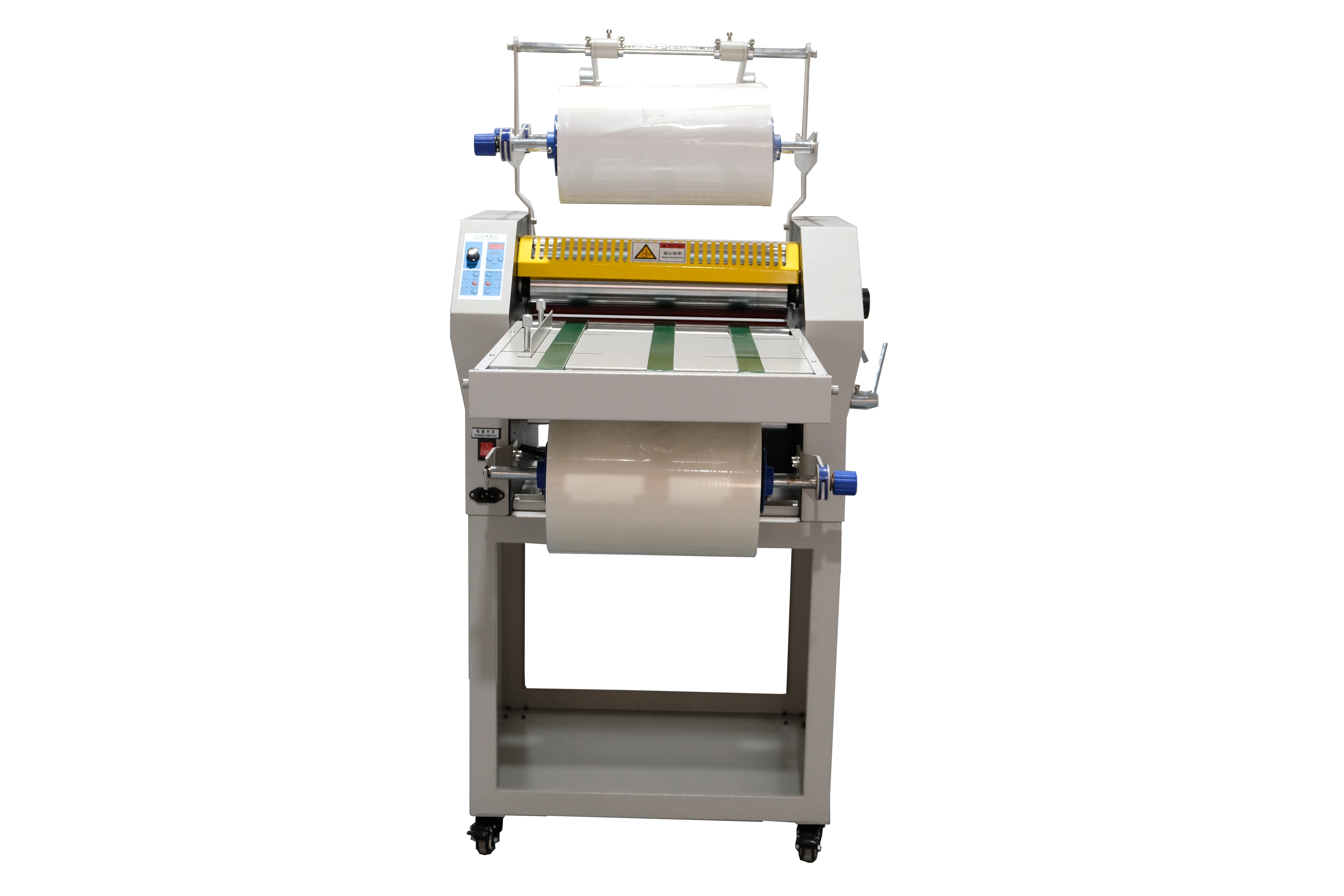

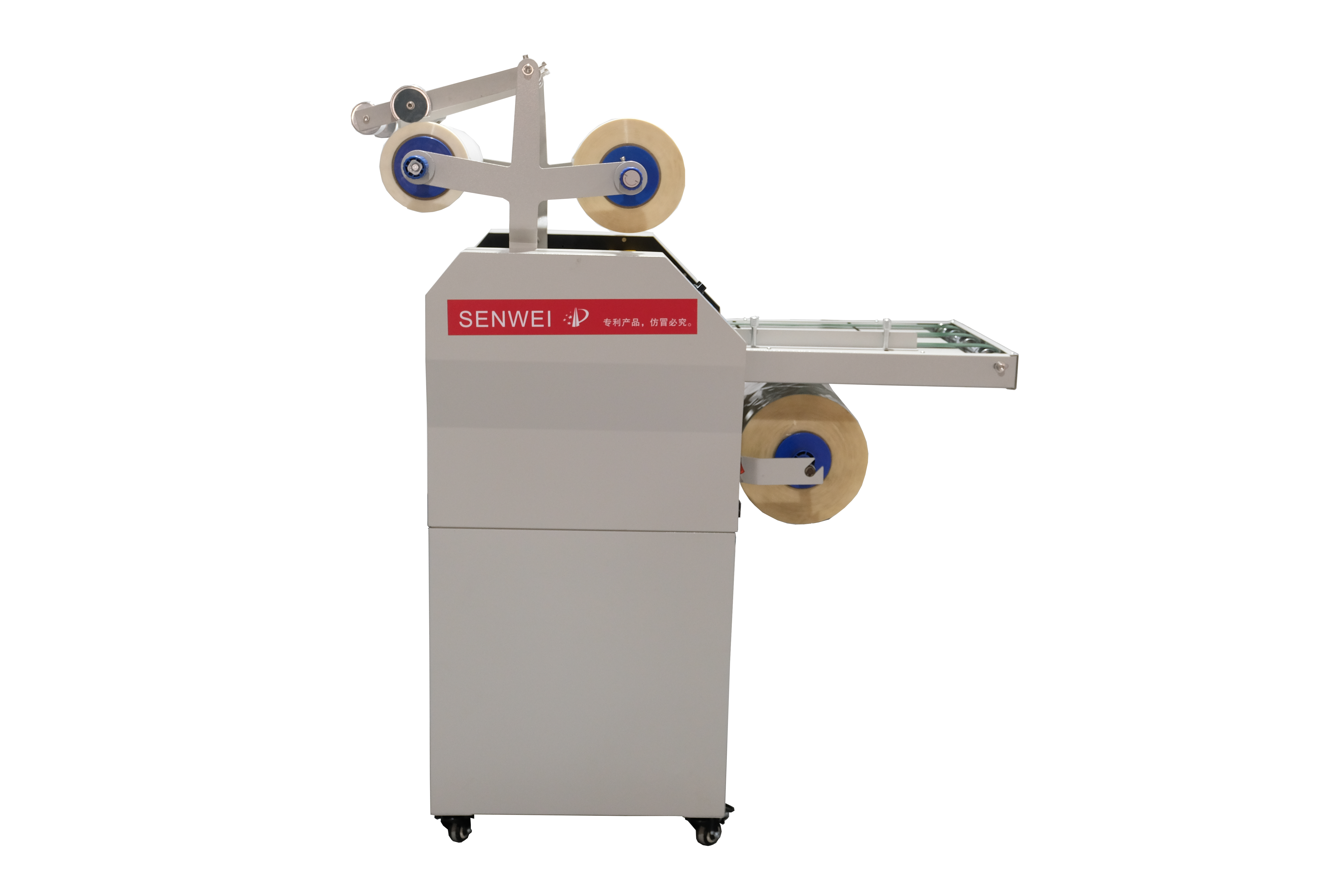

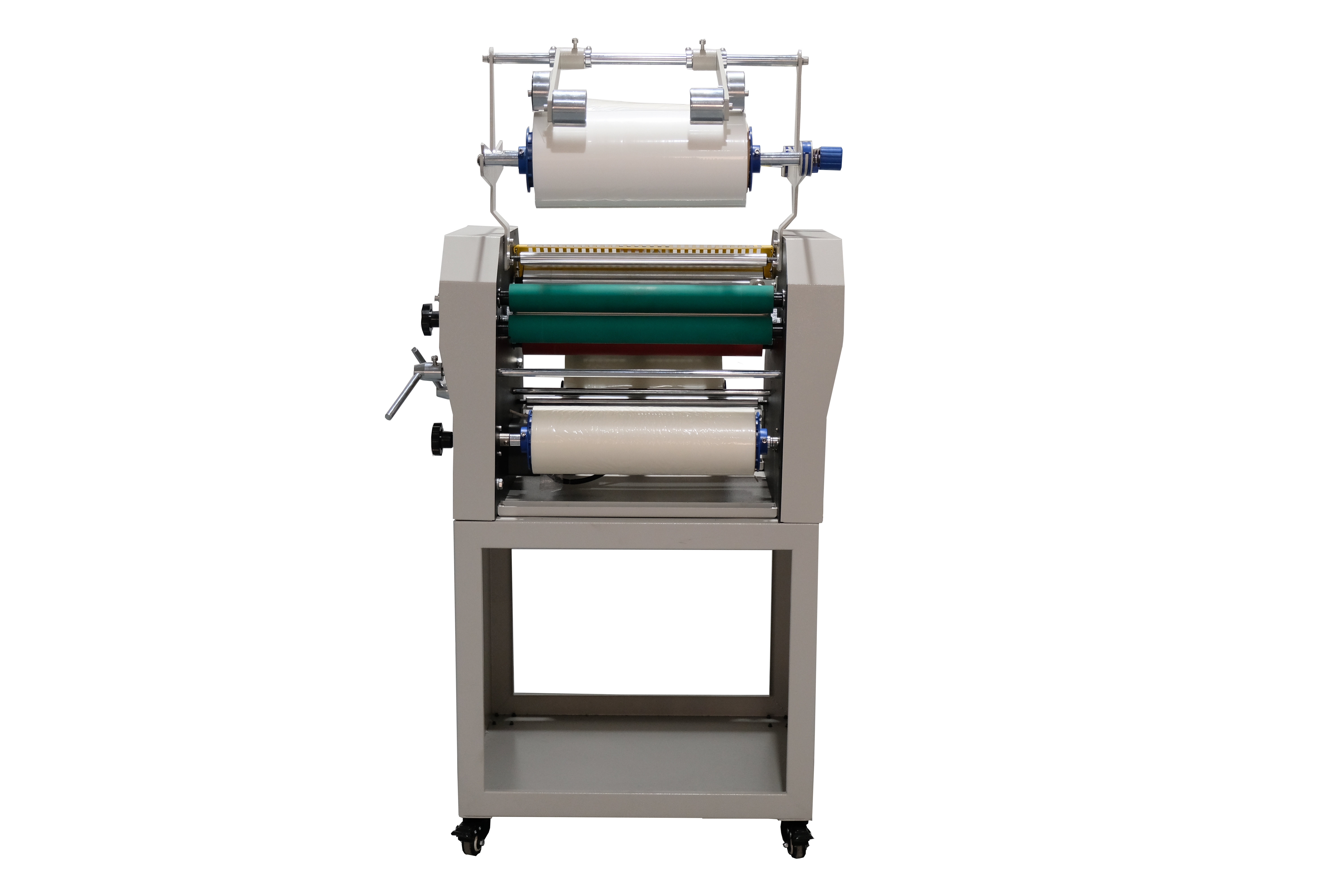

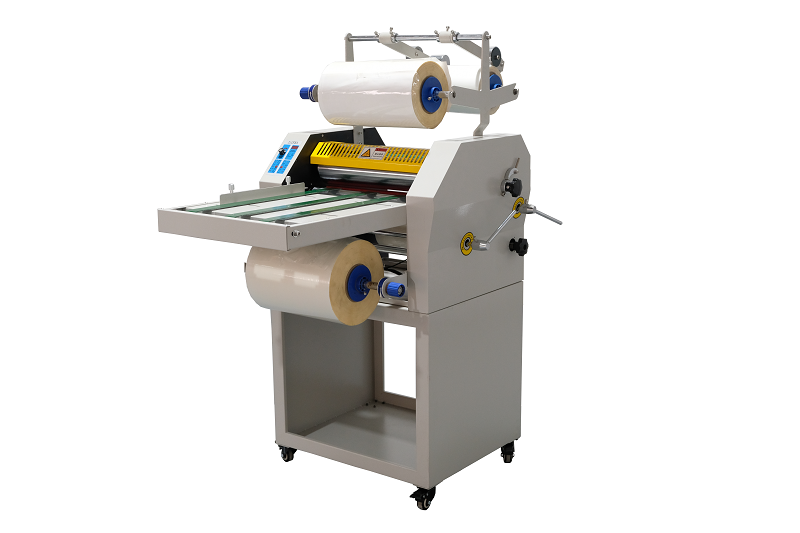

SMFM-390A / 520A / 650A digital oil heating laminating machine (with slitting,puching), the aircraft covers an area of small, easy to operate, fast, with automatic temperature control, anti-curl setting，have double film racks , Using South Korea imported silicone. Also has a one-time automatic cutting.The rear of the machine plus a winding set receive paper.
The machine to pre-coated polyester film as material, can be widely used in window-type packaging boxes, food boxes, books, drawings, advertisements, certificates and other products of the surface coating, the printed film after the film, waterproof, durable, Clear.
|
Model |
SMFM-390A |
|
Max paper size |
370x999mm |
|
Mini paper size |
150x150mm |
|
Operating speed |
0-13m/min |
|
Laminatingtemperature |
50-120℃ |
|
Total power |
2kw |
|
Dimensions(LxWxH ) |
0.9x0.63x1.2m |
|
Voltage |
220V/50Hz |
|
Feeding mode |
by hands |
|
With slitting function |
with |
|
Anti-curl function |
with |
|
Rolling-up after lamianting |
Yes |
|
Auto splitting after laminating |
No |
|
paper thickness |
125~350gsm |
