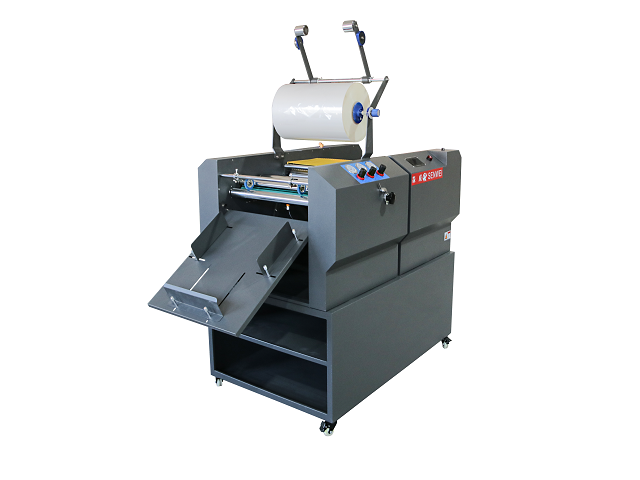

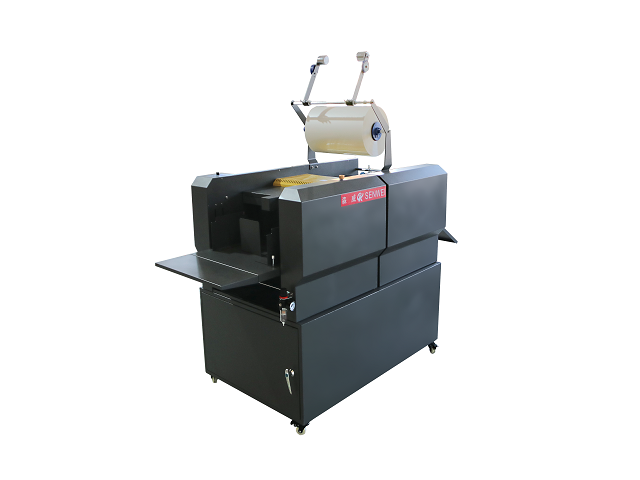

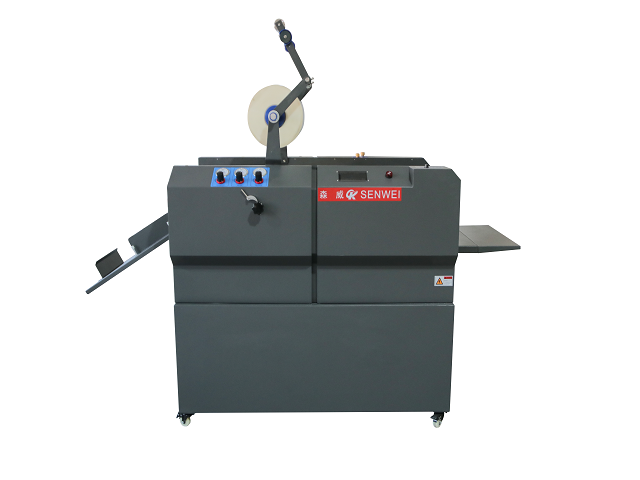

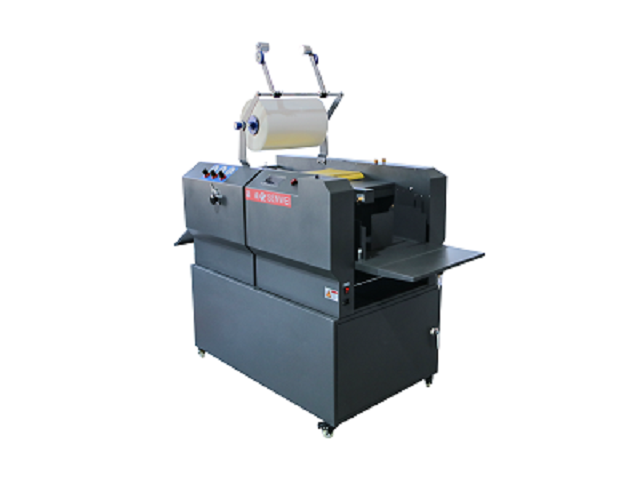

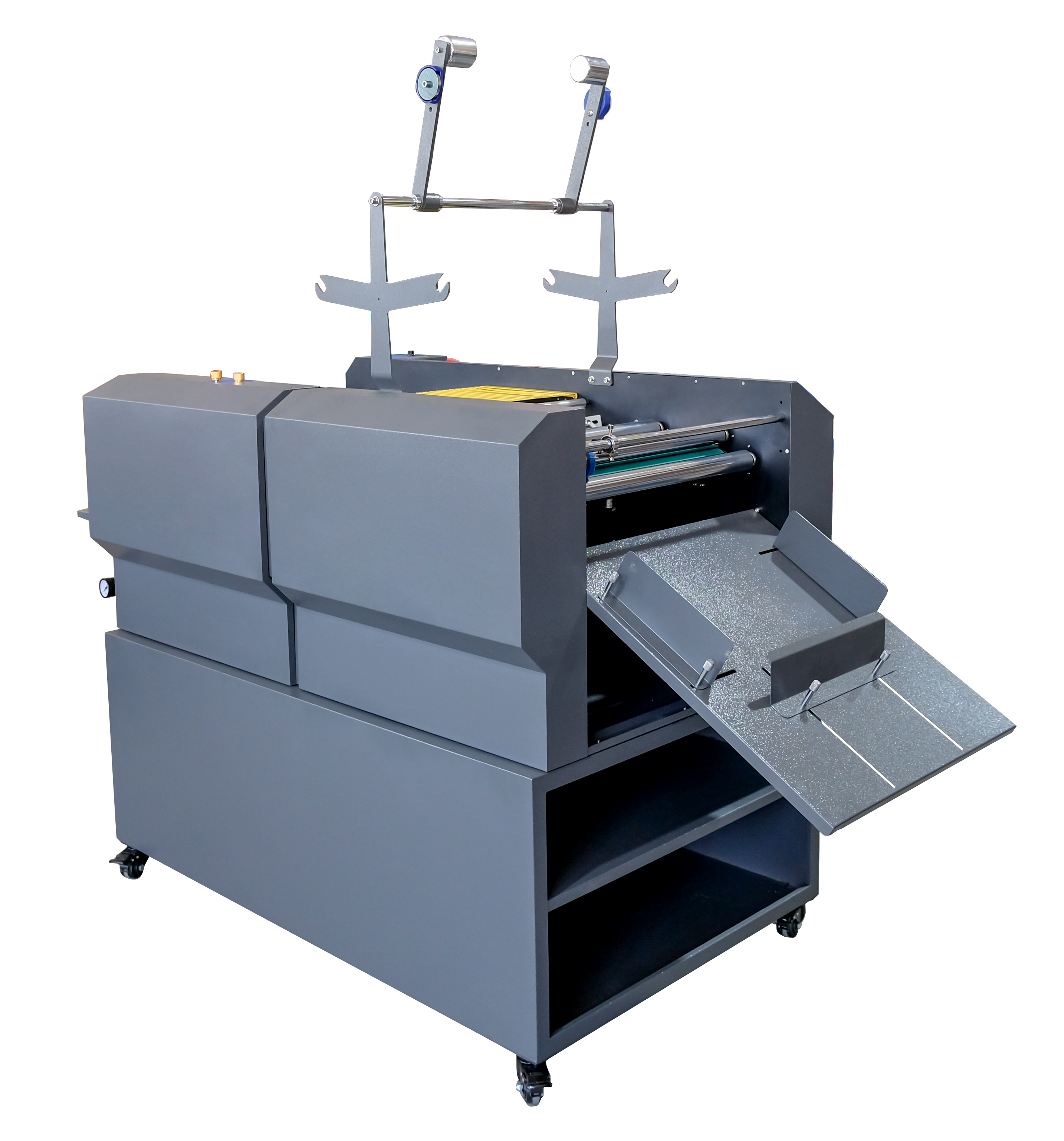

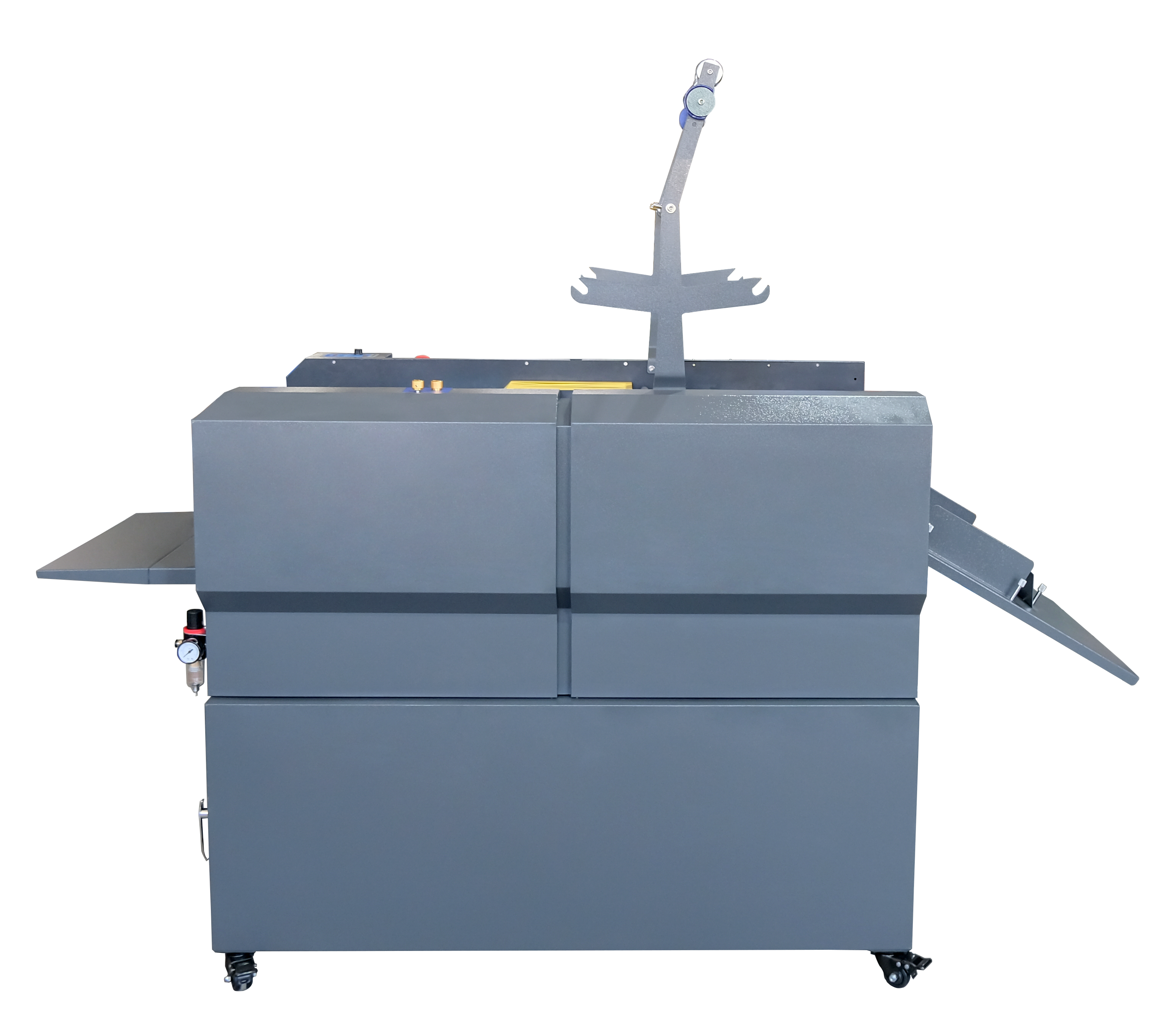

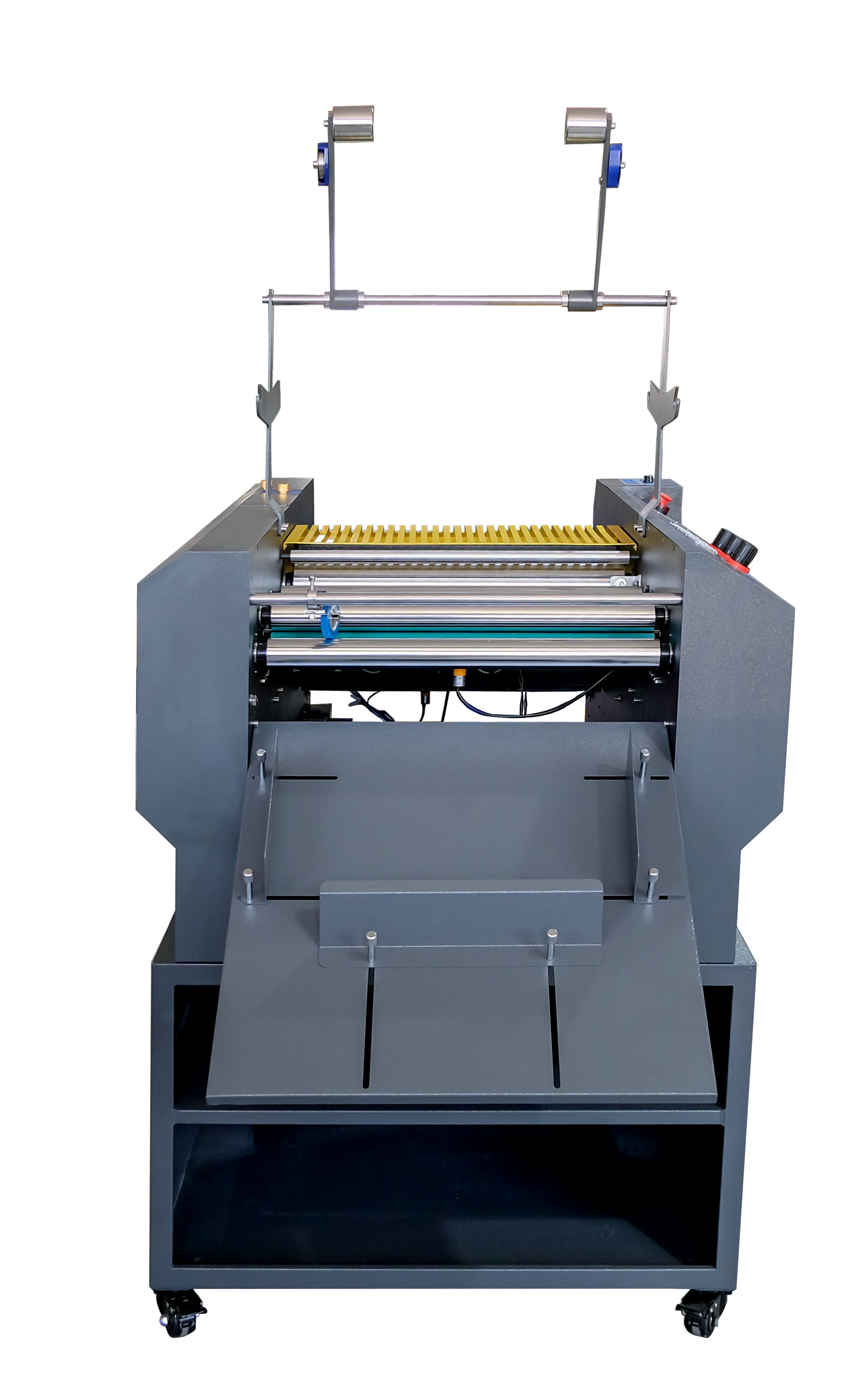

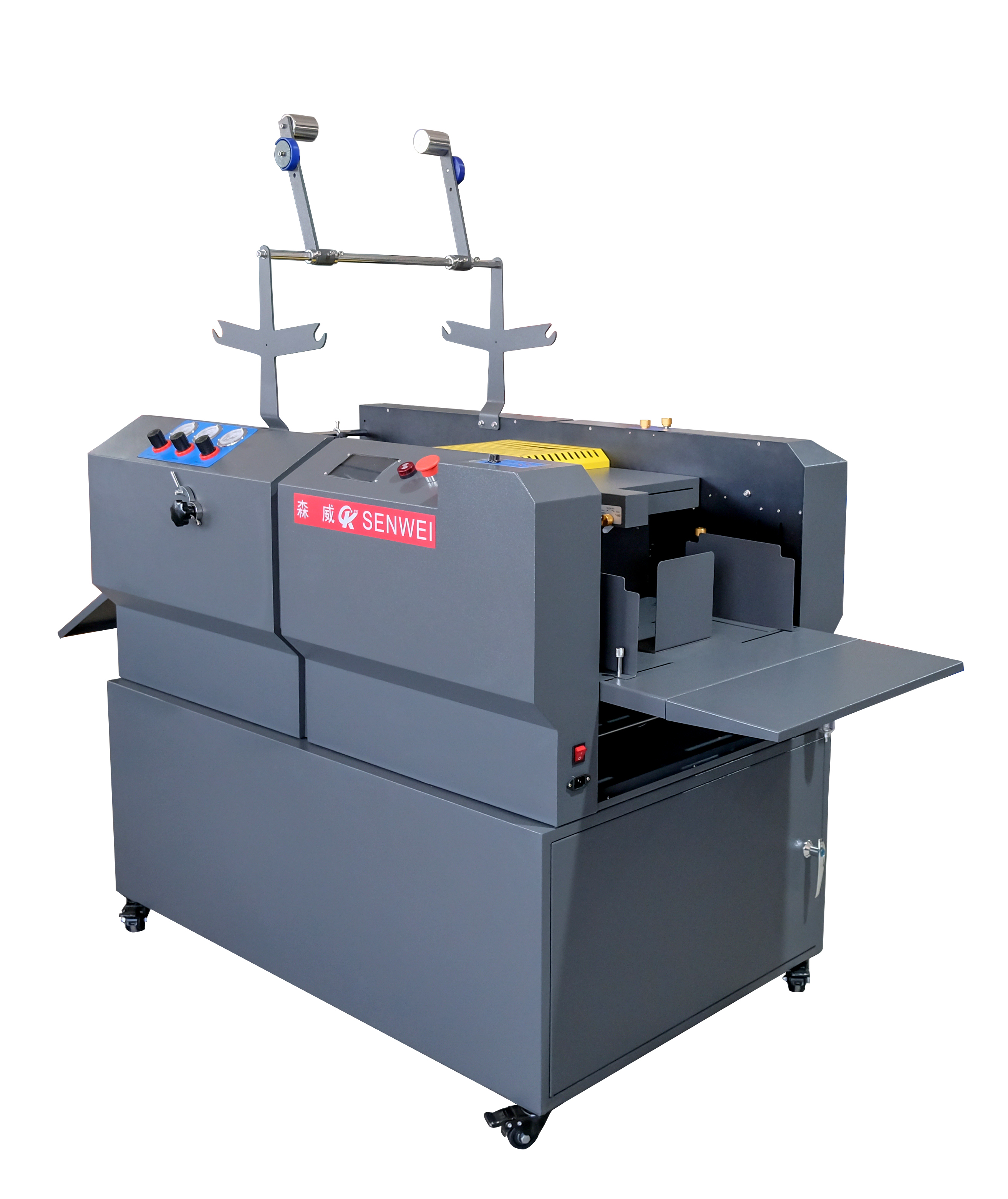

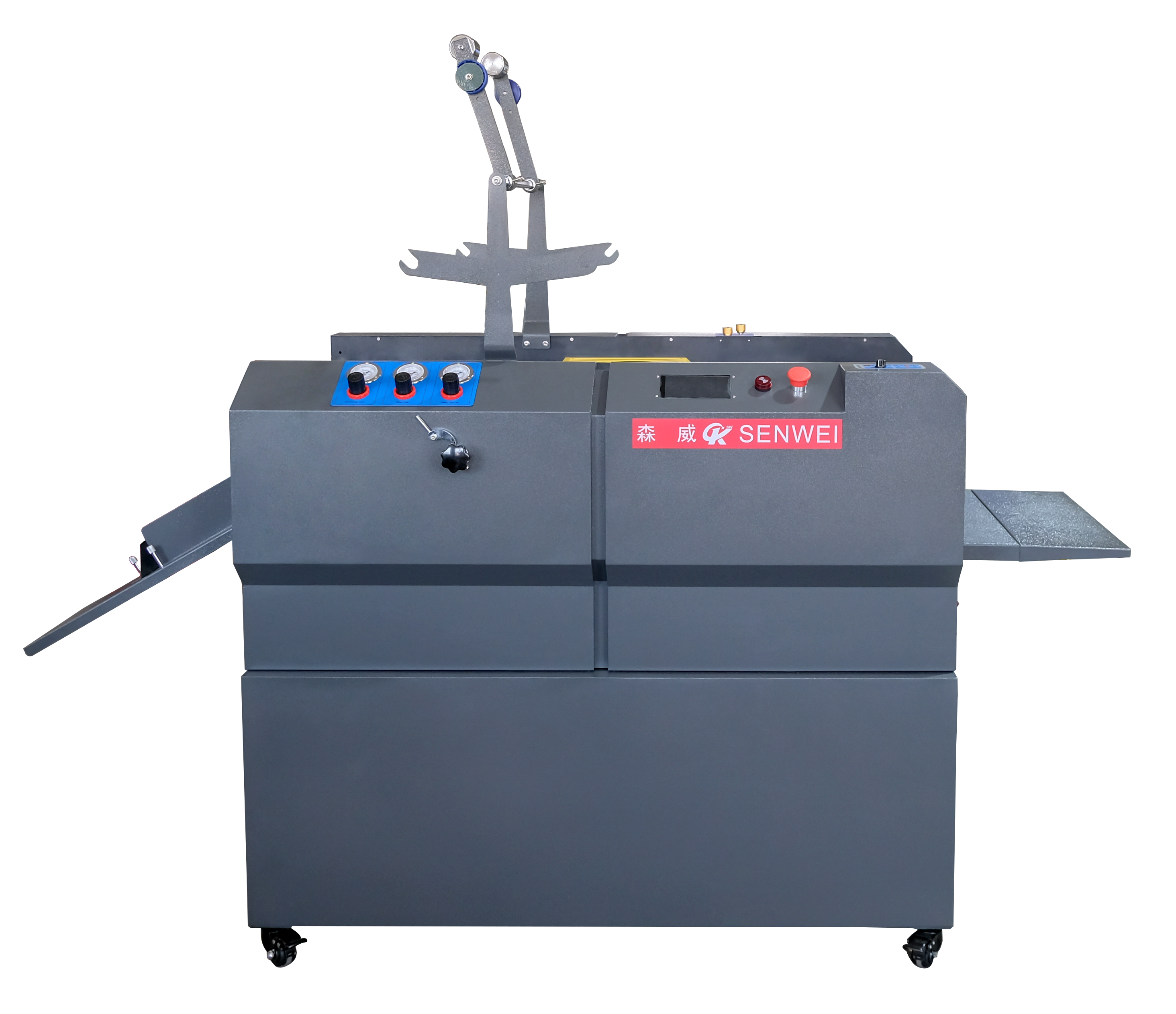

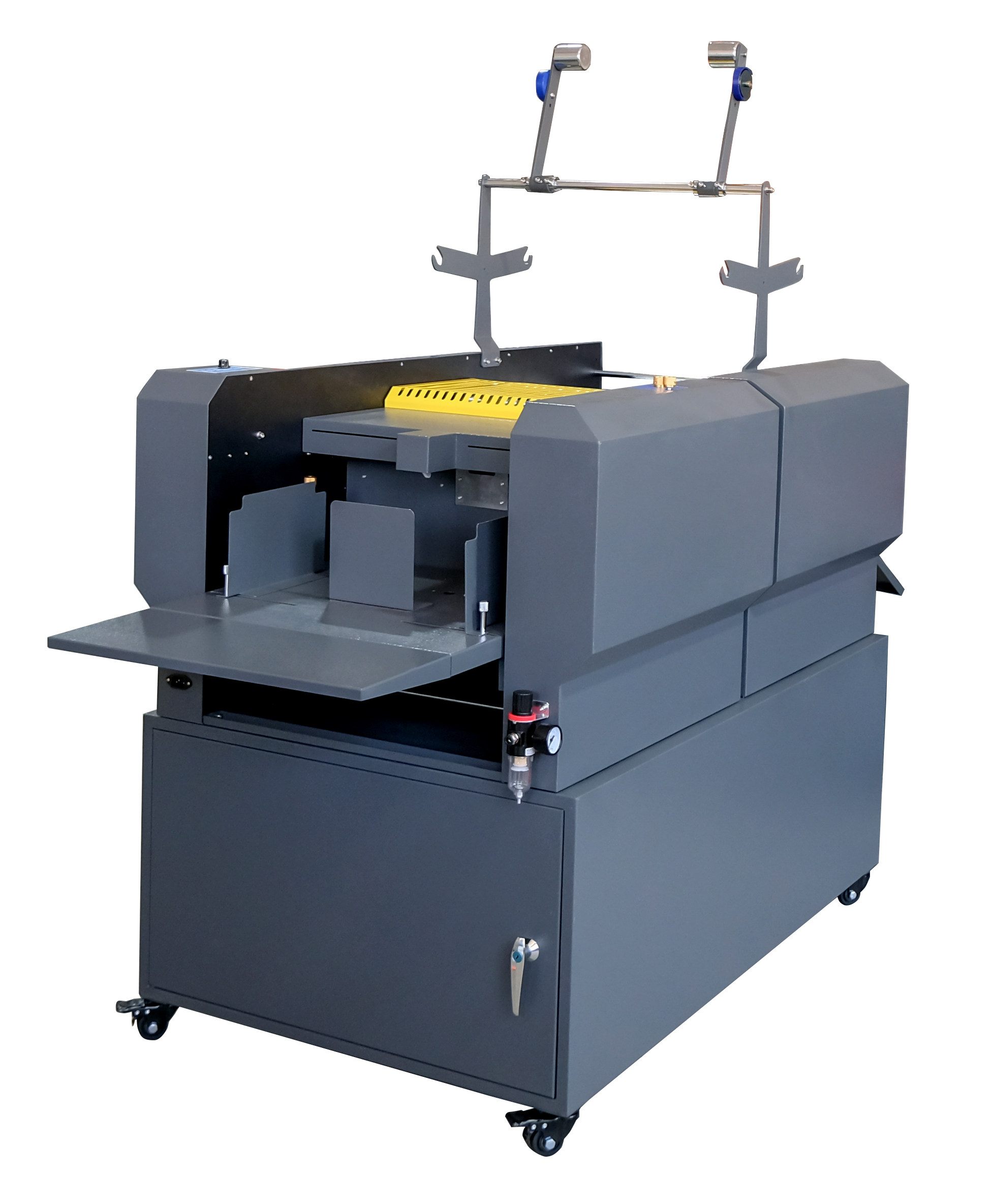

The machine is a fully automatic oil heating laminating machine, lt has a computer touch screenand PLC intelligent control system.There is a suction device to feed paper automatically.lt adopts large electronic hydraulic cylinders to provide pressure.lt adopts stepless speed governor reducerto adjust the speed.it has double film racks, anti curl device.It can cut off paper and overlap automalically and collect papers orderly.The heating roller is treated with high brightness mirror.The pressure roller uses imported silicone material, which is pressure resistant and high temperature resistant and non-adhesive.
The main machine parameters
|
Model |
SMFM520GPro |
|
Max paper size |
505x570mm |
|
Mini paper size |
150x210mm |
|
Maximum height of paper |
150mm |
|
Operating speed |
0~13.5m/min |
|
Laminating temperature |
0~120℃ |
|
Total power |
2.2 Kw |
|
Pressure |
0.5MPa |
|
Feeding mode |
automatic |
|
Feeding method |
Suction |
|
With slitting function |
with |
|
Anti-curl function |
with |
|
Automatic disconnecting after laminating |
Yes |
