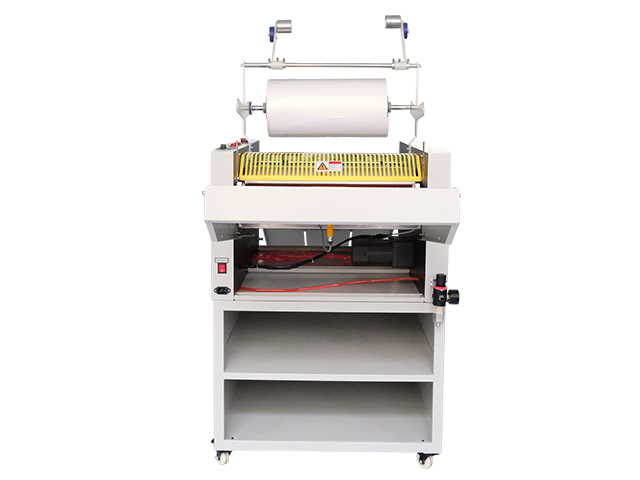

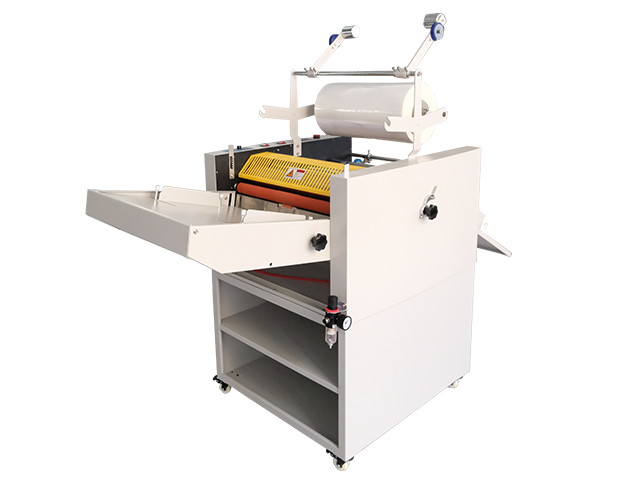

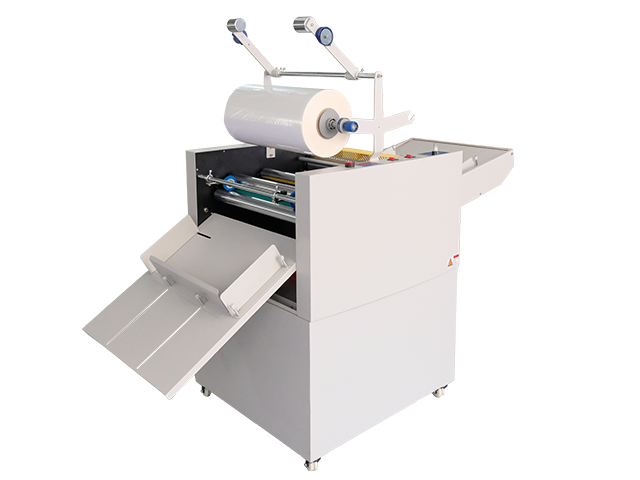

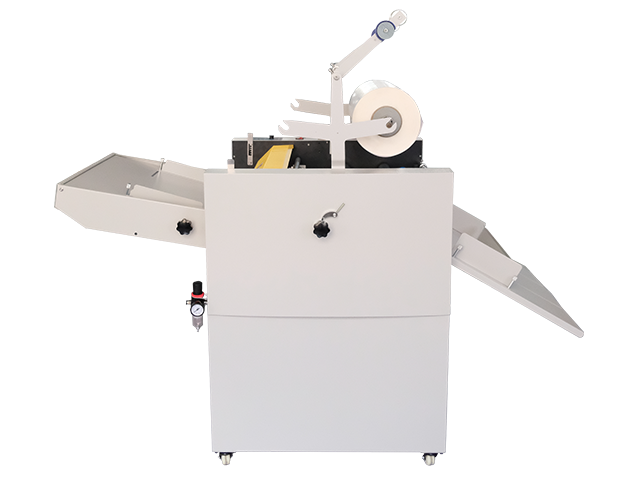

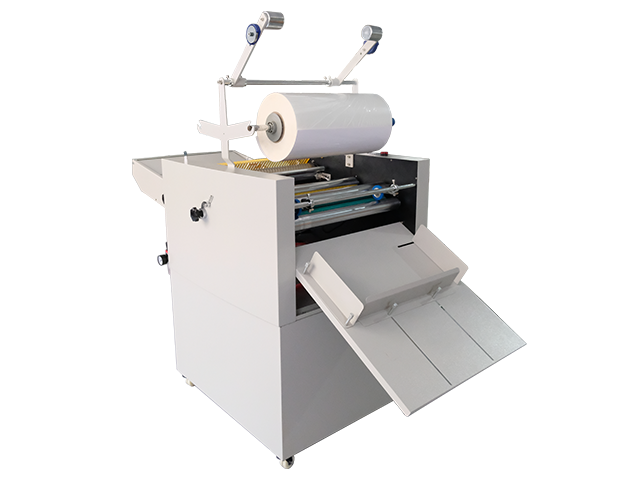

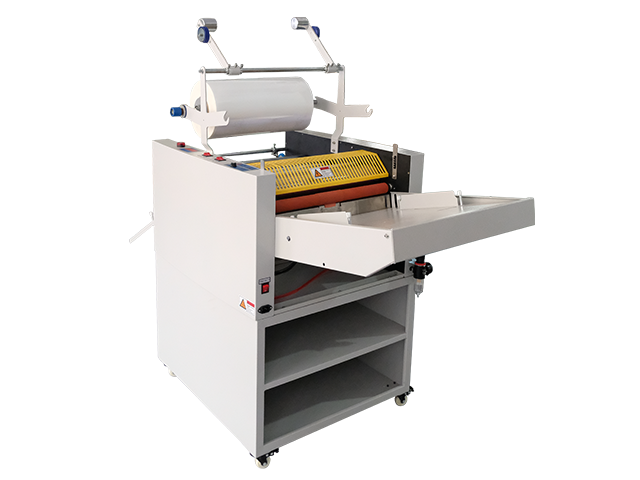

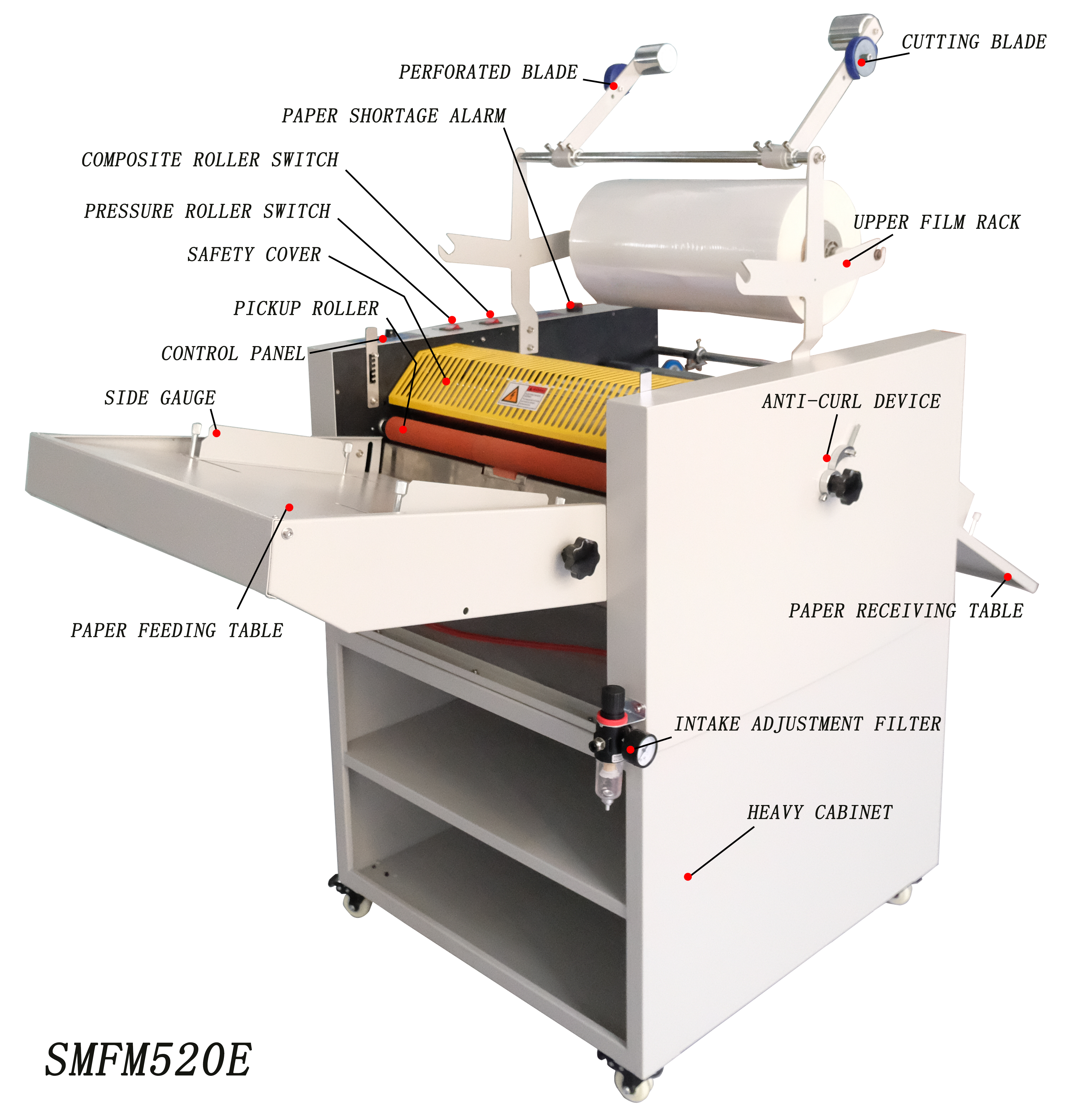

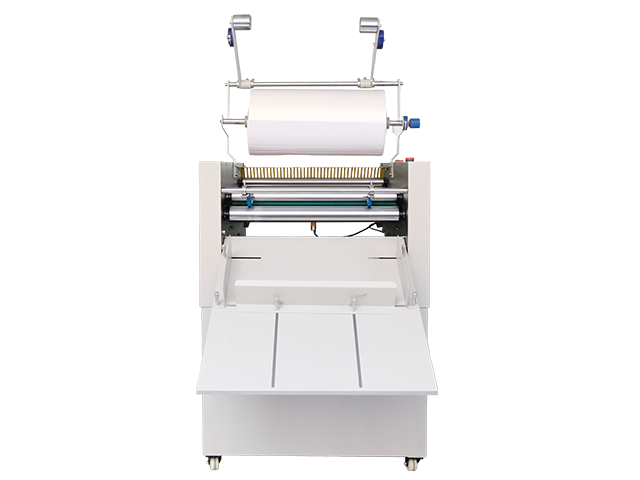

What we are showing you now is model 520E.This model max paper width is 485 millimeter.max paper length is 580mm.Max paper height is 50mm.
This model feed paper by friction.All machines’ heating rollers of our company are equipped with oil heating system, which can solve the problem that Allover black, red and green and will not appear white spots.Other companies are using electric heating in heating system. Electric heating will appear white spots.Pressure roller imported silica gel.Our pressure roller is pressure resistant, non stick and explosion-proof.The pressure uses pneumatic pressure. Need connect compressor.This model uses Speed regulating motor. The speed is 13 meters per minute. And our machine has Anti-curl function. Thinner paper after laminating will not curl.
The main machine parameters
|
Model |
SMFM520E |
|
Max paper size |
485x570mm |
|
Mini paper size |
150x150mm |
|
Maximum height of paper |
50mm |
|
Operating speed |
0~10m/min |
|
Laminating temperature |
80~125℃ |
|
Total power |
2 Kw |
|
Voltage |
220V/50Hz |
|
Dimensions(LxWxH ) |
1.5×0.8×1.2m |
|
Pressure |
0.1~0.5MPa |
|
Feeding mode |
automatic |
|
Feeding Method |
Friction |
|
With slitting function |
with |
|
Anti-curl function |
with |
|
Rolling-up after lamianting |
No |
|
Automatic disconnecting after laminating |
Yes |
