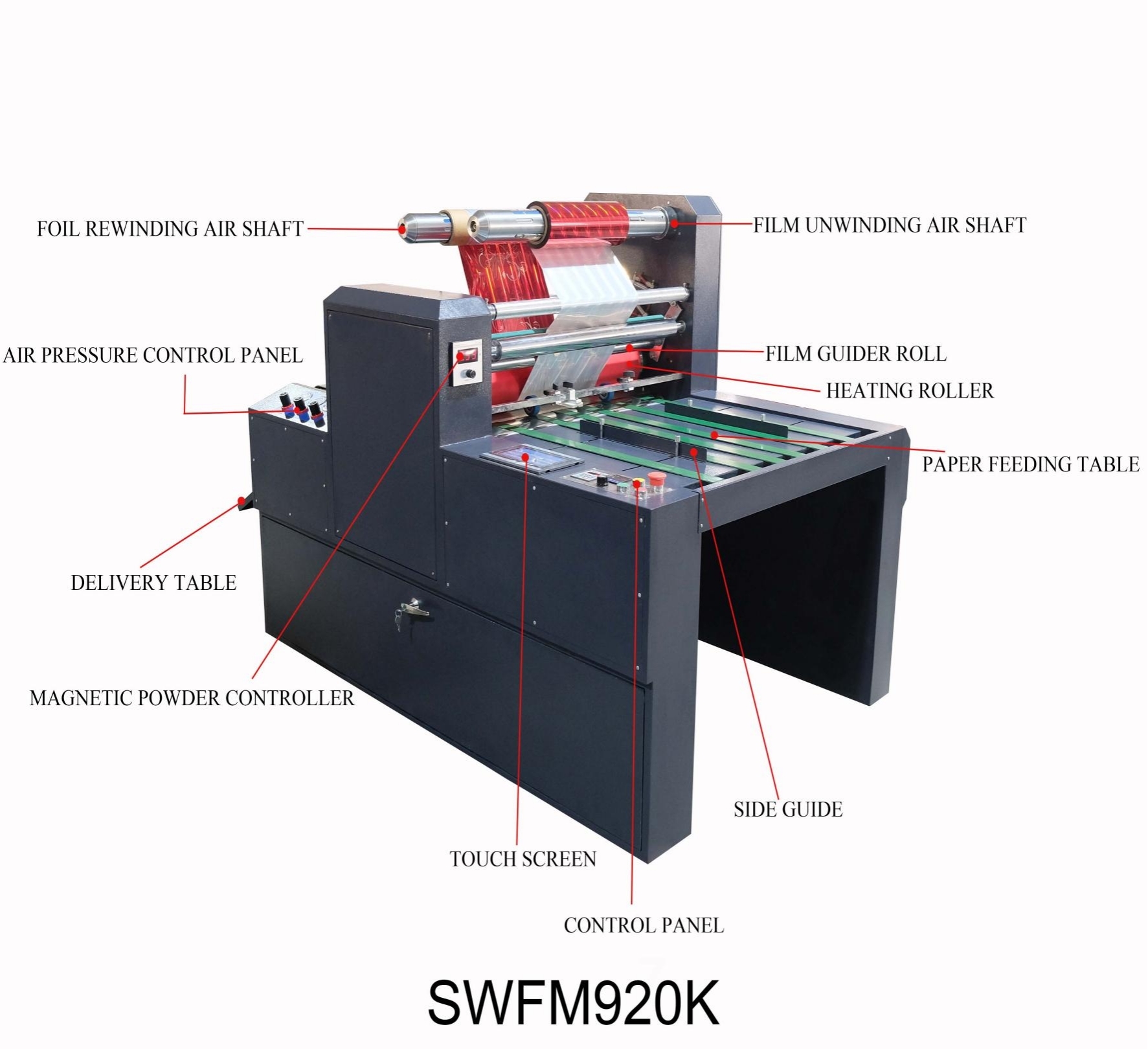

This machine is an oil-heated foil stamping unit featuring a step-feed function, suitable for various hot and cold stamping processes—including self-adhesive labels, water-slide decals, and UV transfers. It utilizes a control system integrating PLC, photoelectric positioning, and a touchscreen interface, allowing for customizable step-feed settings to minimize foil waste. Equipped with a variable-frequency motor for stepless speed control, it accommodates diverse paper types and production speeds. The 3-inch air-expanding shaft unwinding mechanism ensures secure and convenient material loading while effectively preventing foil misalignment. The finished product features a smooth, tight stamping finish with precise registration and crisp, durable text
The main machine parameters
| Model | SWFM920K |
| Max Working Width | 920mm |
| Max Paper Size | 900×999mm |
| Min Paper Size | 150×150mm |
| Working Speed | 0–12m/min |
| Heating Method | Oil Heating, Even Temperature Control |
| Temperature Range | 0–150°C |
| Control System | PLC + Touch Screen + Photoelectric Positioning |
| Function | Automatic Jumping / Step-skip Hot Stamping & Cold Stamping |
| Main Roller | 200mm Thickened Imported Silicone Roller |
| Unwinding Shaft | 3-inch Air-expanding Shaft |
| Total Power | 5.5KW |
| Machine Dimension(L×W×H) | 1700×1250×1480mm |
| Machine Weight | 520KG |
| Application | Large format labels, water slide decals, UV transfer, flower paper, hot & cold stamping |
