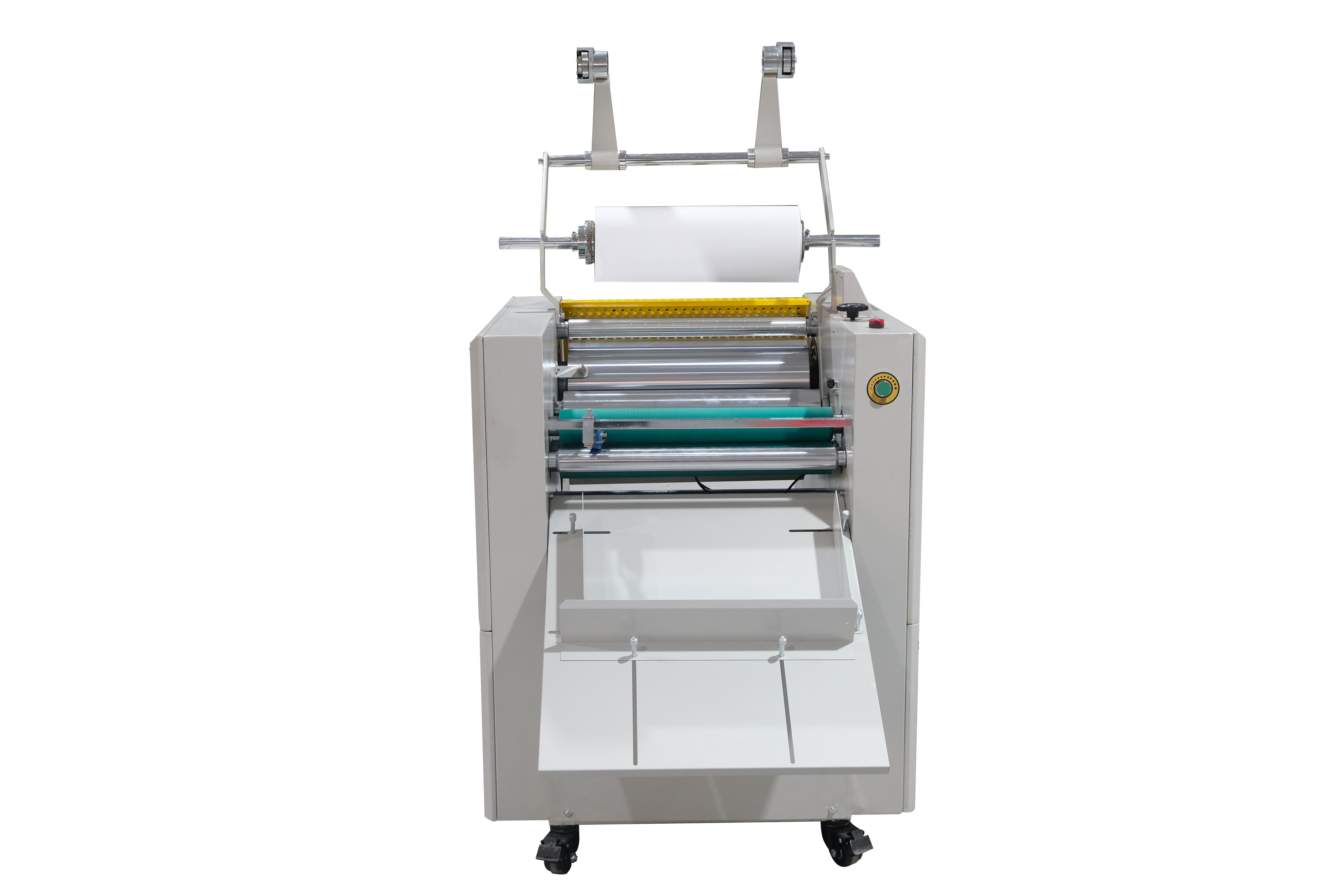

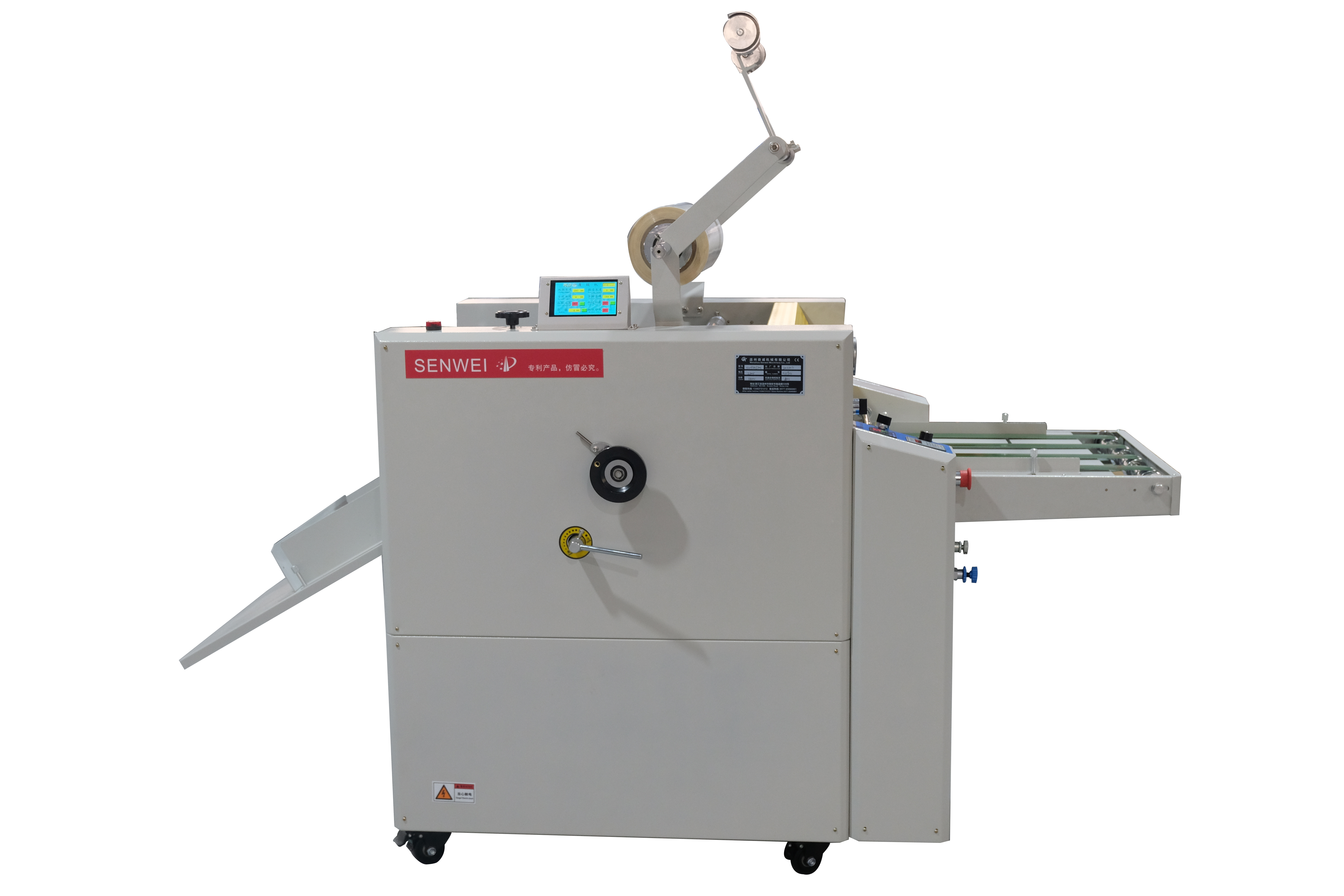

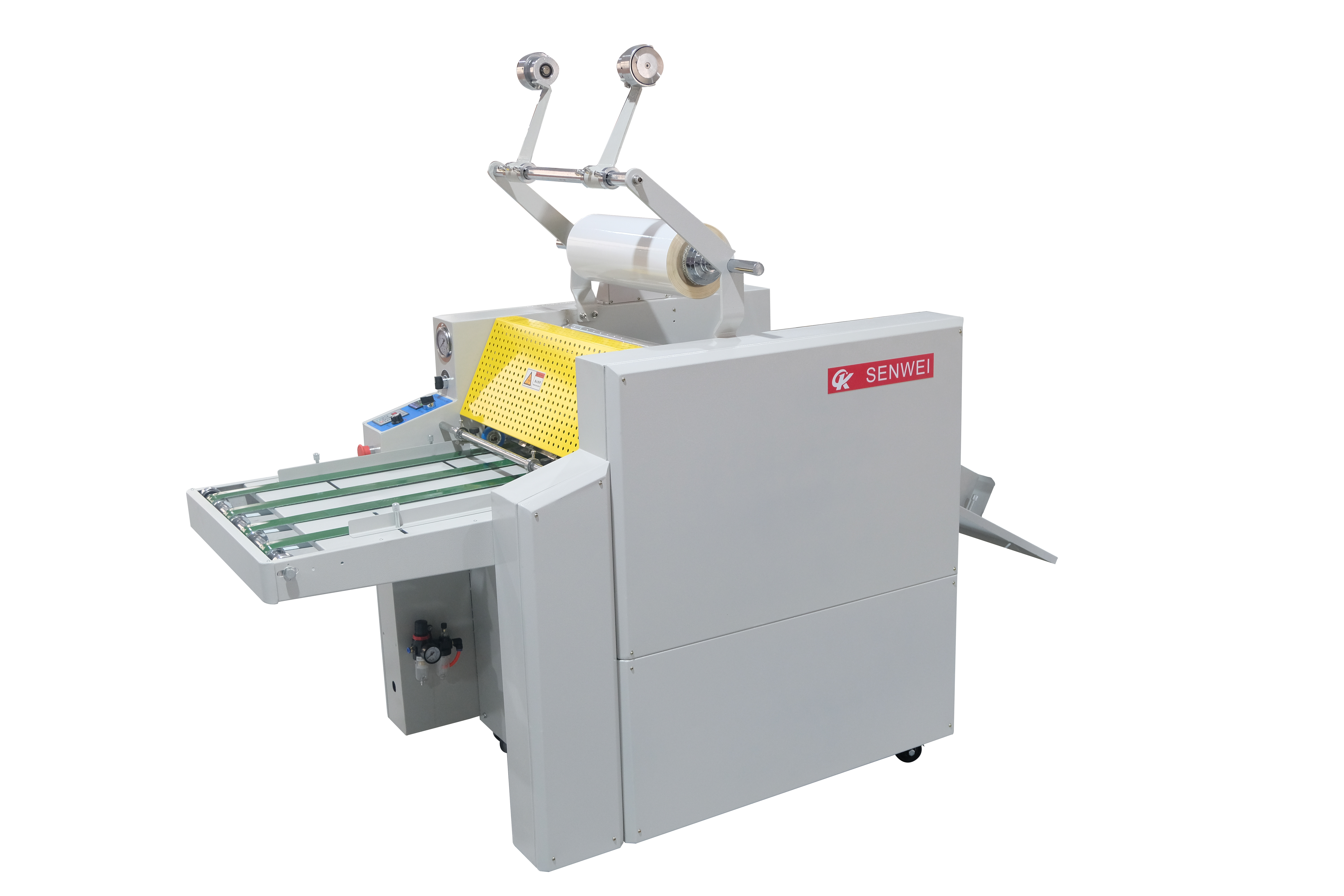

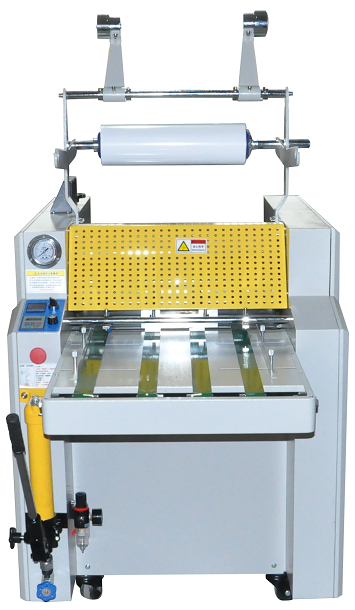

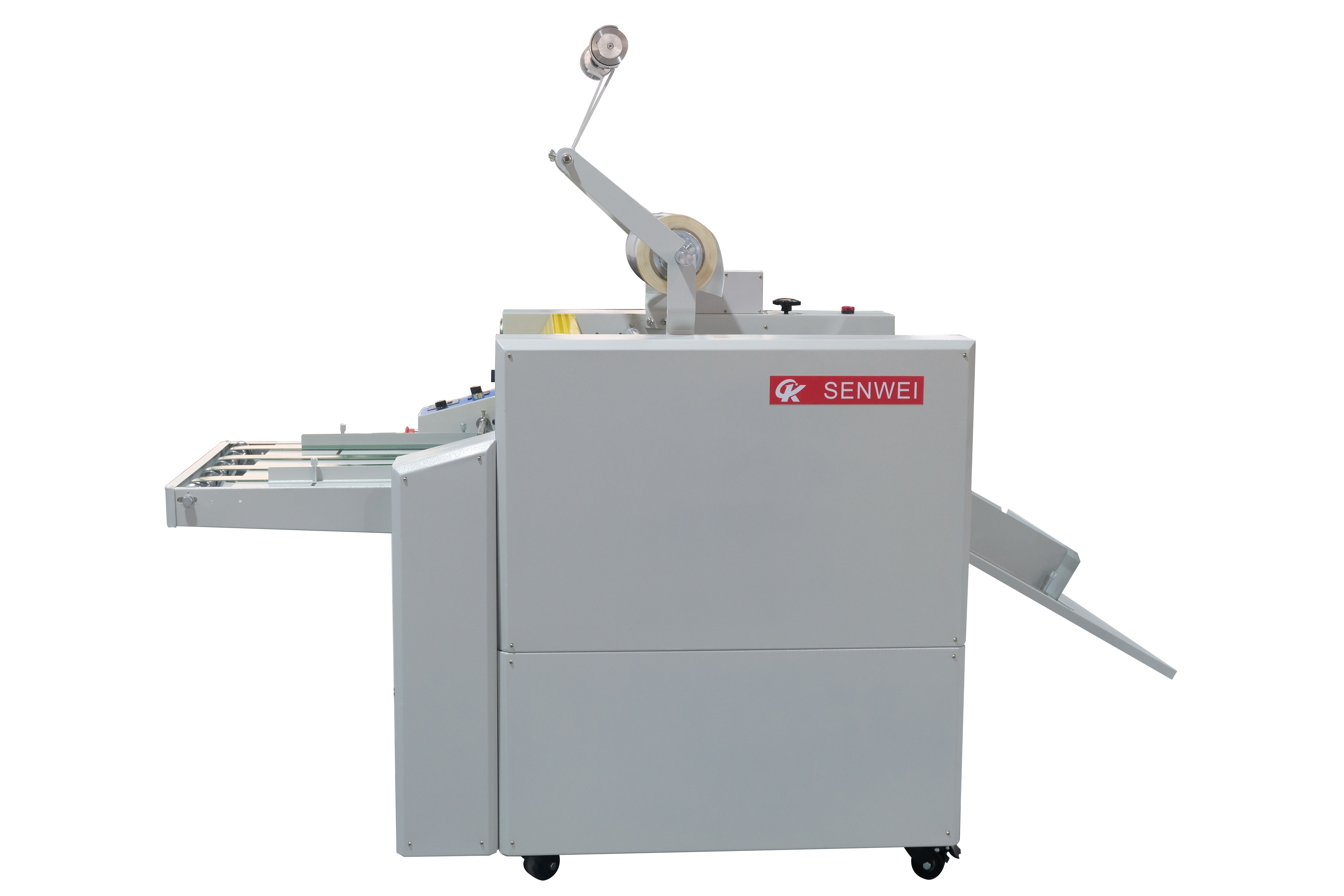

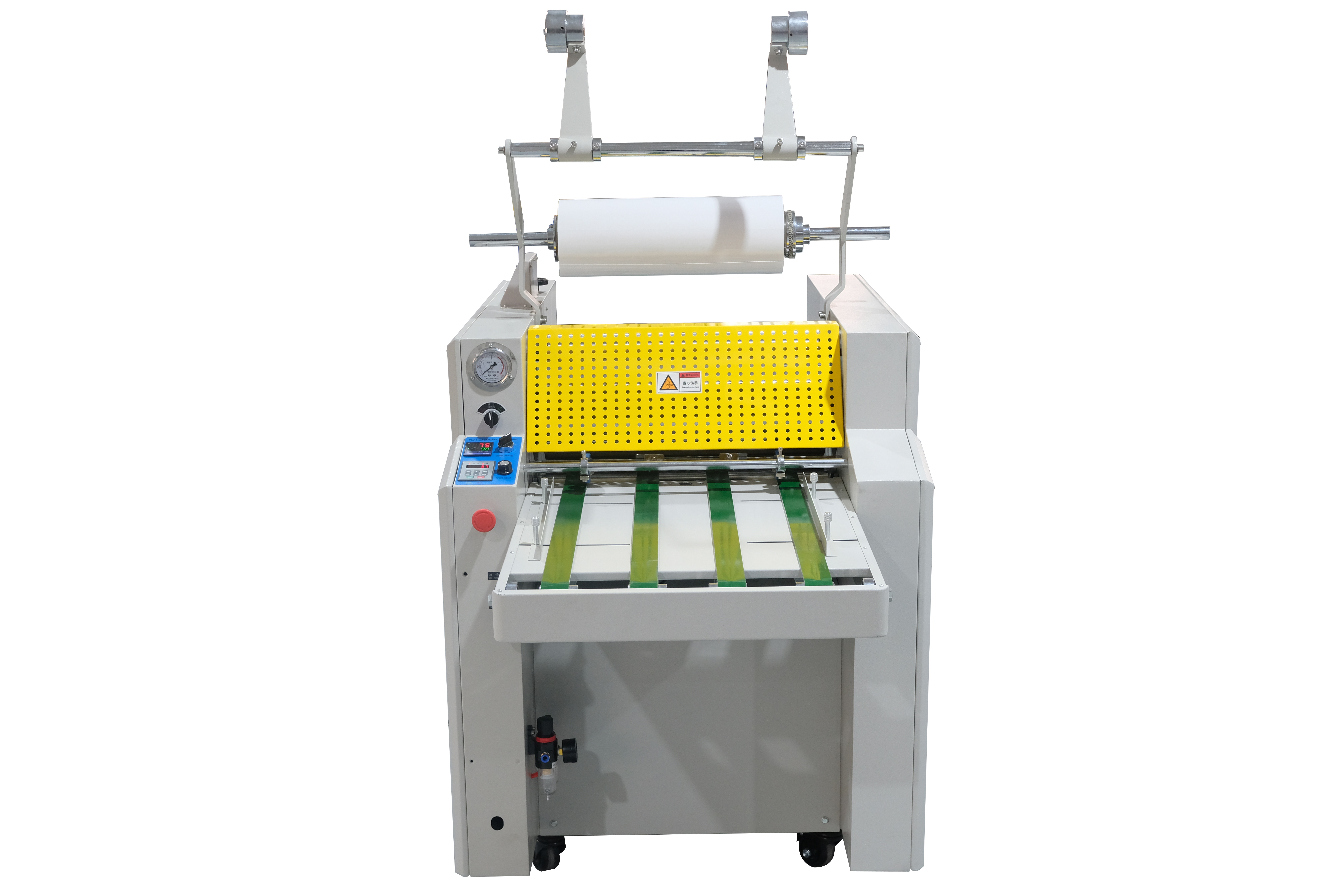

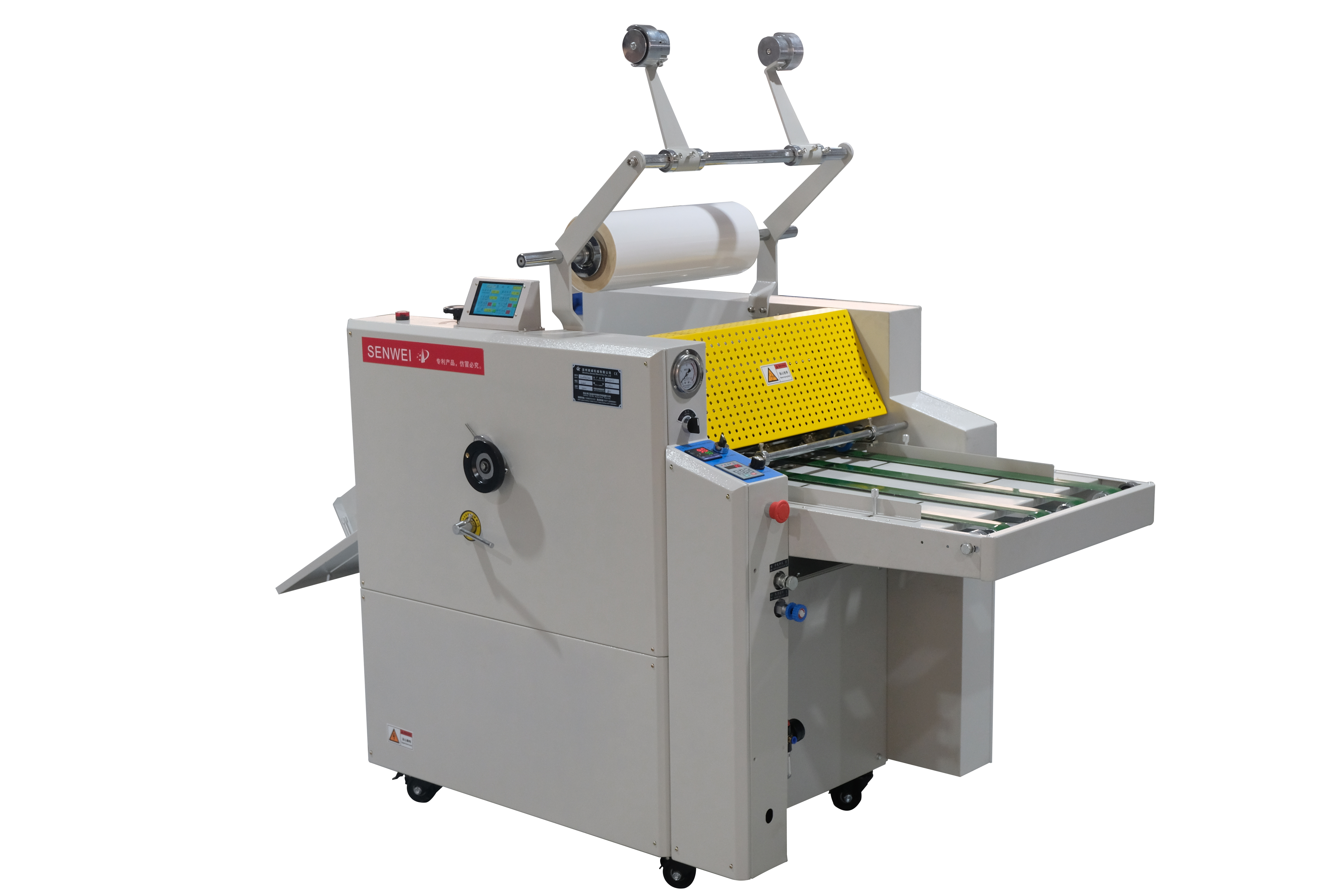

SWFM520C+ Hydraulic automatic cut laminating machine

 What we are showing you now is model SWFM520C.This model max paper width is 490 millimeter.Length not limited.This model feed paper by handle but with automatic overlap function.After laminating with automatic cut function.All machines’ heating rollers of our company are equipped with oil heating system, which can solve the problem that Allover black, red and green and will not appear white spots.Other companies are using electric heating in heating system. Electric heating will appear white spots.Our steel roller’s diameter is 240mm.Pressure roller imported silica gel.Our pressure roller is pressure resistant, non stick and explosion-proof.The pressure uses automatic hydraulic pressure. This model uses Speed regulating motor. The speed is 25 meters per minute. And our machine has Anti-curl function. Thinner paper after laminating will not curl.

The machine to pre-coated polyester film as material, can be widely used in window-type packaging boxes, food boxes, books, drawings, advertisements, certificates and other products of the surface coating, the printed film after

the film, waterproof, durable, Clear.

The main machine parameters
