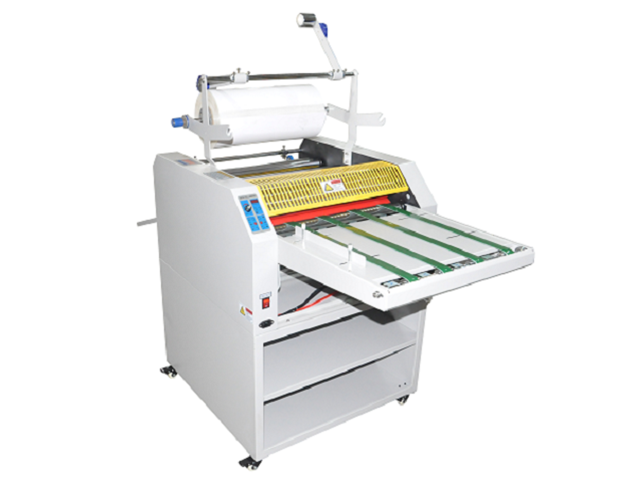

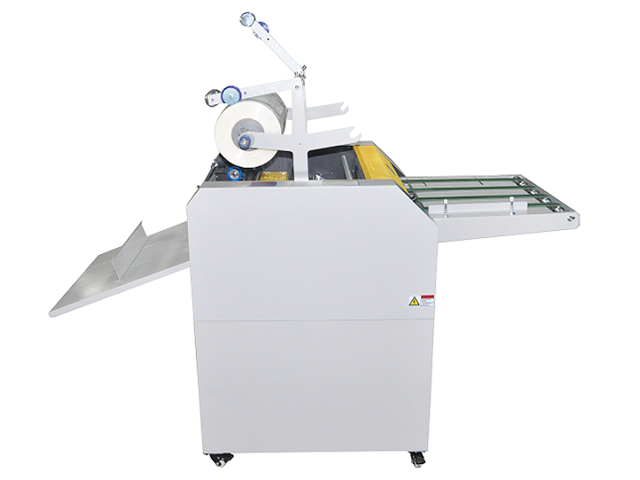

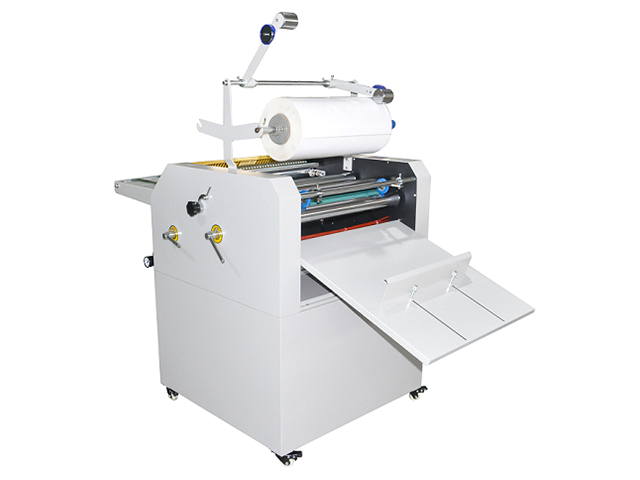

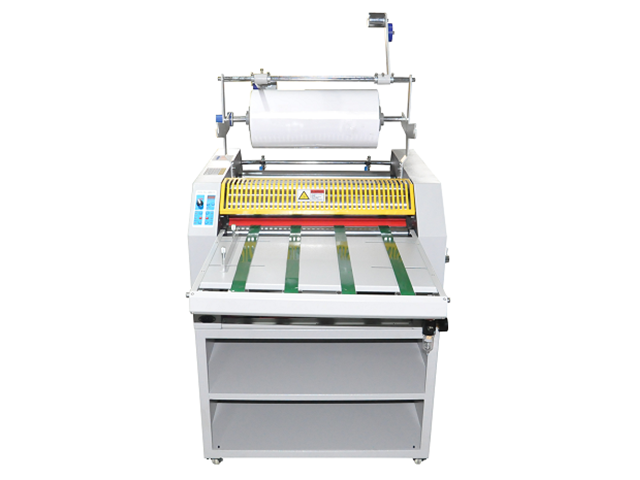

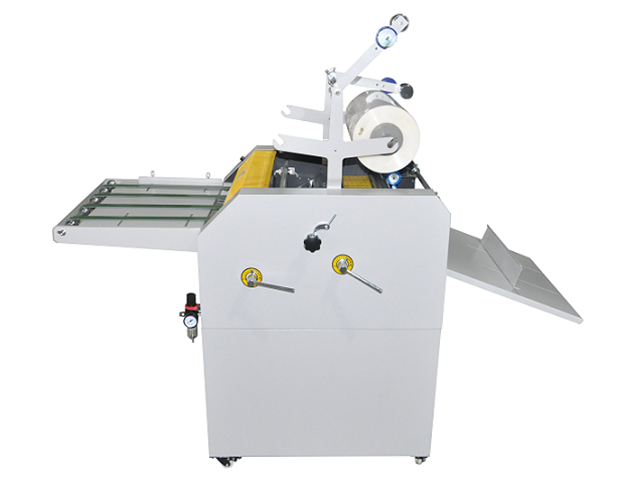

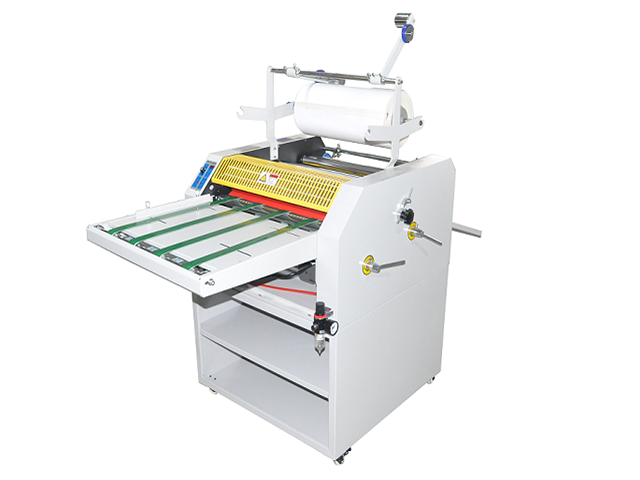

What we are showing you now is model 520C.This model max paper width is 485 millimeter.Length is not limited.
All machines’ heating rollers of our company are equipped with oil heating system, which can solve the problem that Allover black, red and green and will not appear white spots.Other companies are using electric heating in heating system. Electric heating will appear white spots.This model’s steel roller’s diameter is 110mm.Pressure roller imported silica gel.Our pressure roller’s diameter is 70mm.Our pressure roller is pressure resistant, non stick and explosion-proof.The pressure uses 200 kg turbo supercharging. This model uses Speed regulating motor. The speed is 13 meters per minute. And our machine has Anti-curl function. Thinner paper after laminating will not curl.And here have automatic cut function.set your paper length on meter board is ok.automatic cut function need connect compressor. Use Pneumatic cut.
The main machine parameters
|
Model |
SMFM-520C |
|
Max paper size |
485x570mm |
|
Mini paper size |
150x150mm |
|
Operating speed |
0-13m/min |
|
Laminatingtemperature |
50-120℃ |
|
Total power |
2kw |
|
Dimensions(LxWxH ) |
1.6x0.8x1.2m |
|
Pressure |
0.1~0.5MPa |
|
Voltage |
220V/50Hz |
|
Feeding mode |
by hands |
|
With slitting function |
with |
|
Anti-curl function |
with |
|
Rolling-up after lamianting |
No |
|
Automatic disconnecting after laminating |
Yes |
|
paper thickness |
125~350gsm |
