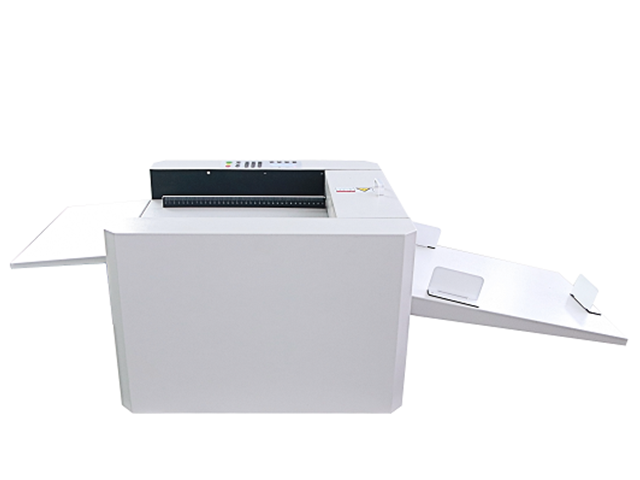

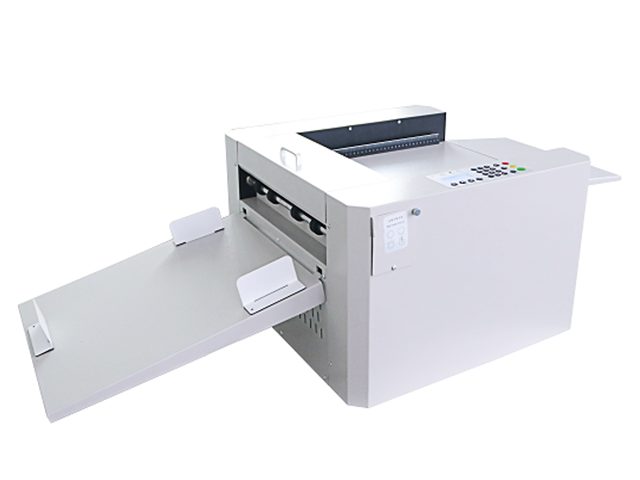

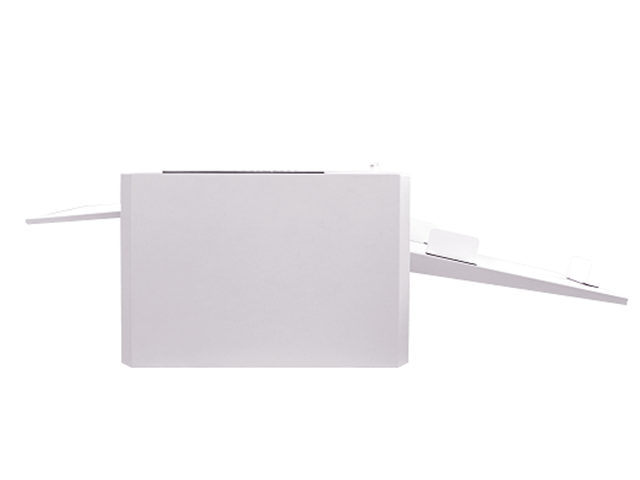

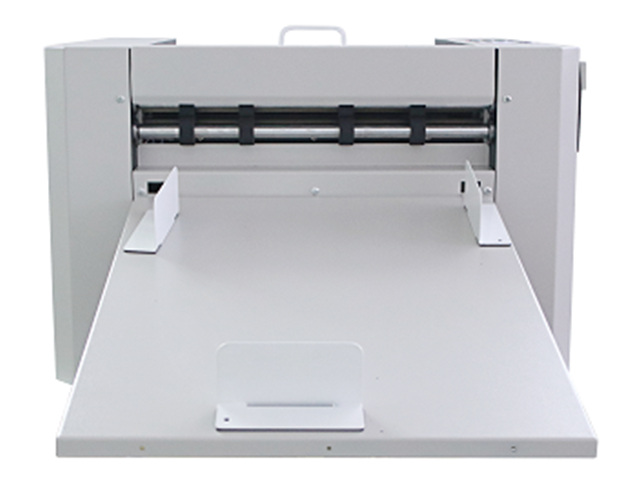

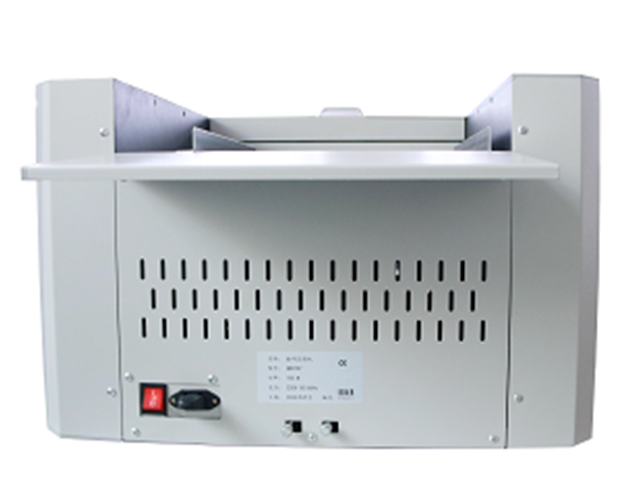

SMFM370Y Digital manual creasing machine

SMFM370Y

Wenzhou Senwei Digital Manual Indentation Machine SMFM370Y can be equipped with a bottom cabinet and a computer touch screen. Small footprint, operational aspects. There are two functions: indentation and dashed line. The indentation can be adjusted for skewness, and there is an extension plate. Imported Japanese blades are used.
Inquiry PDF Download

Product Details




Indentation blade heat treatment width 0.05 (more beautiful indentation) Dotted line knife imported from Japan (strong penetration) Maximum indentation size 335-655mm (extendable) Minimum feed size 50-90 mm Number of indentation 32 Indentation depth infinitely adjustable Indentation speed one hour 2400 sheets Feeding method: manual Keypad: Chinese and English LCD display device (optional touch screen) All machine heat treatment welcome Welcome to consult








The main machine parameters

Model

SMFM-370Y

Max paper size

335x655mm

Mini paper size

50x90mm

Operating speed

2400 Sheets/hour

Number of indentation

32

Total power

150w

Voltage

220V/50Hz  110V/60Hz

Feeding mode

by hands
