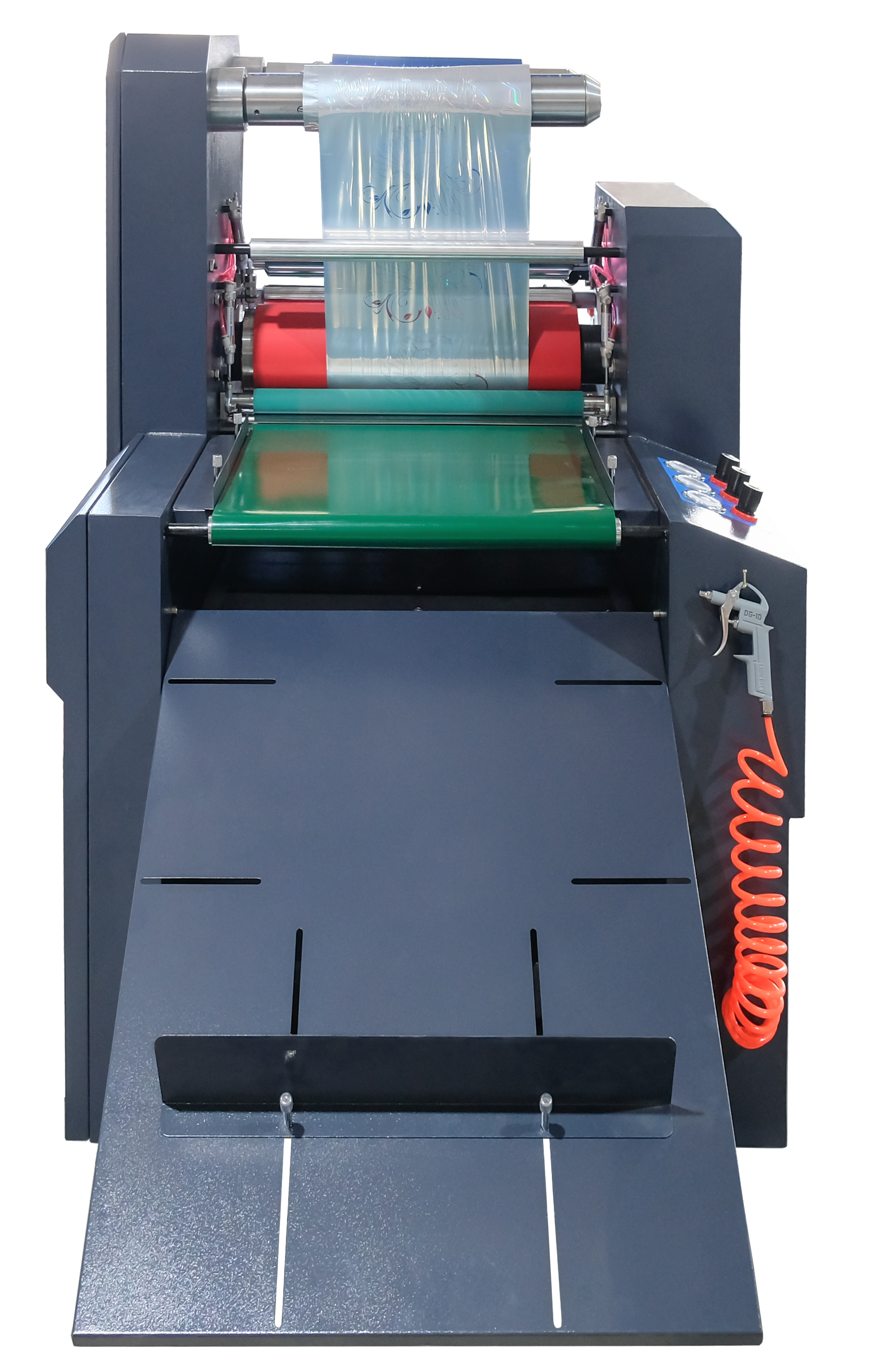

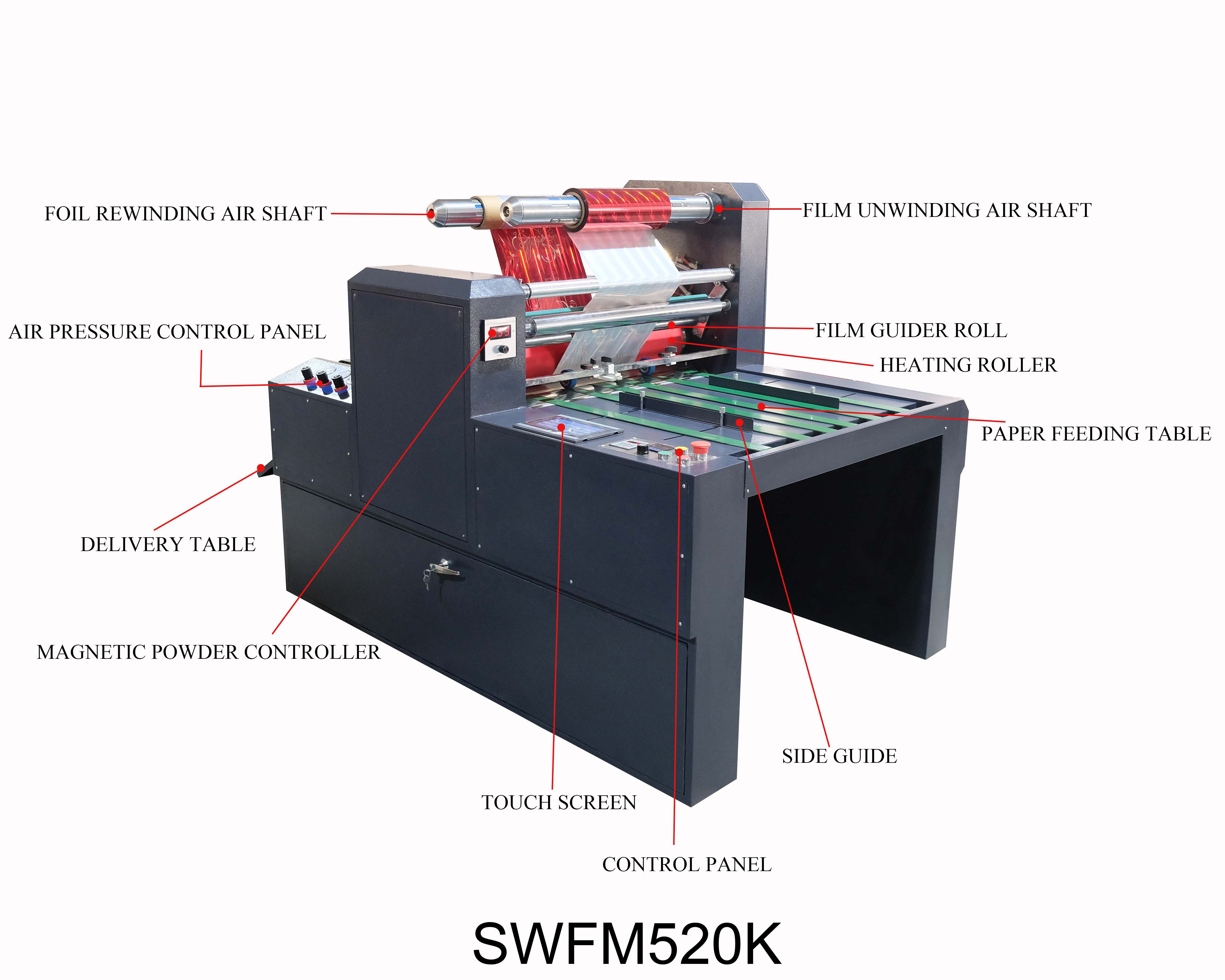

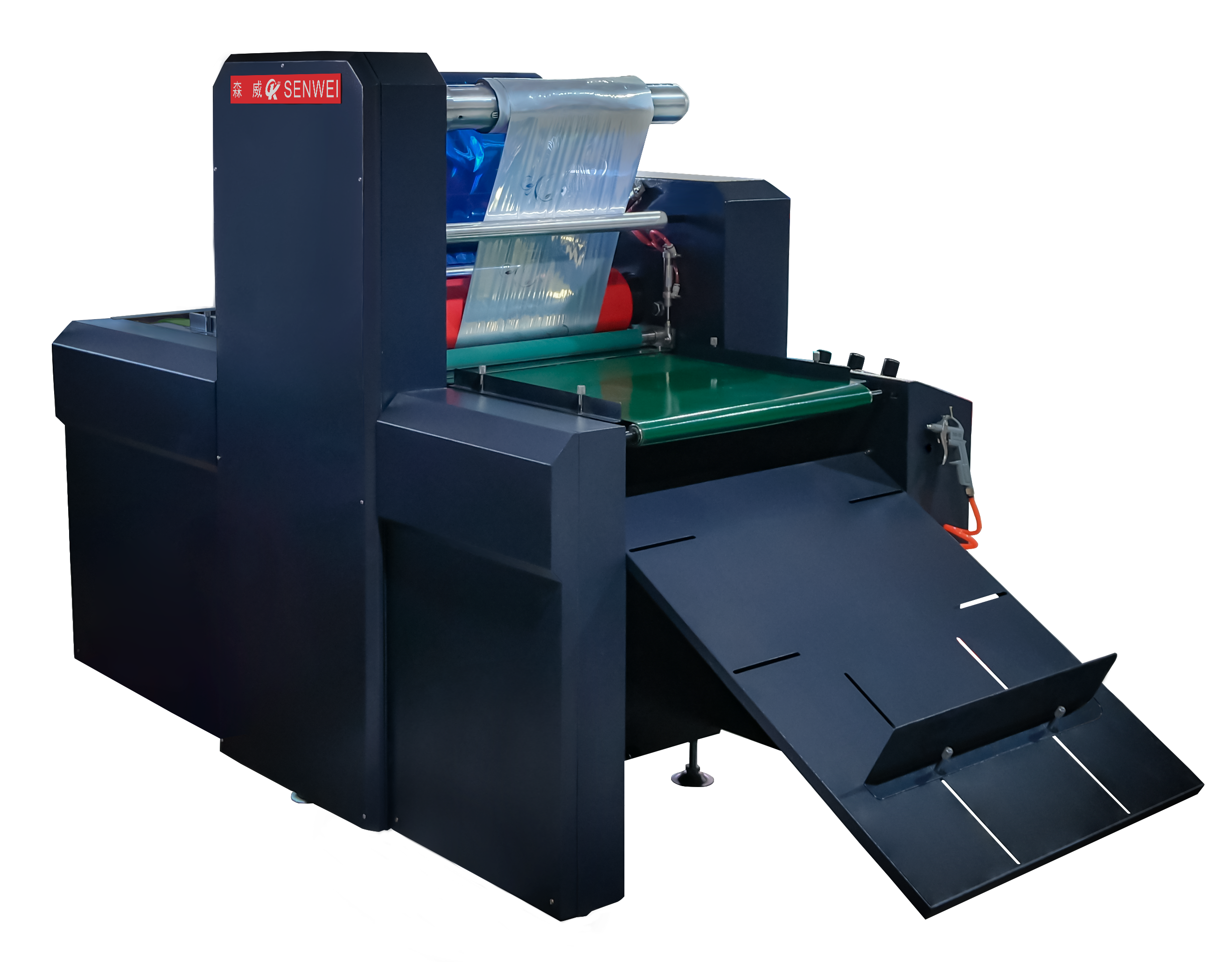

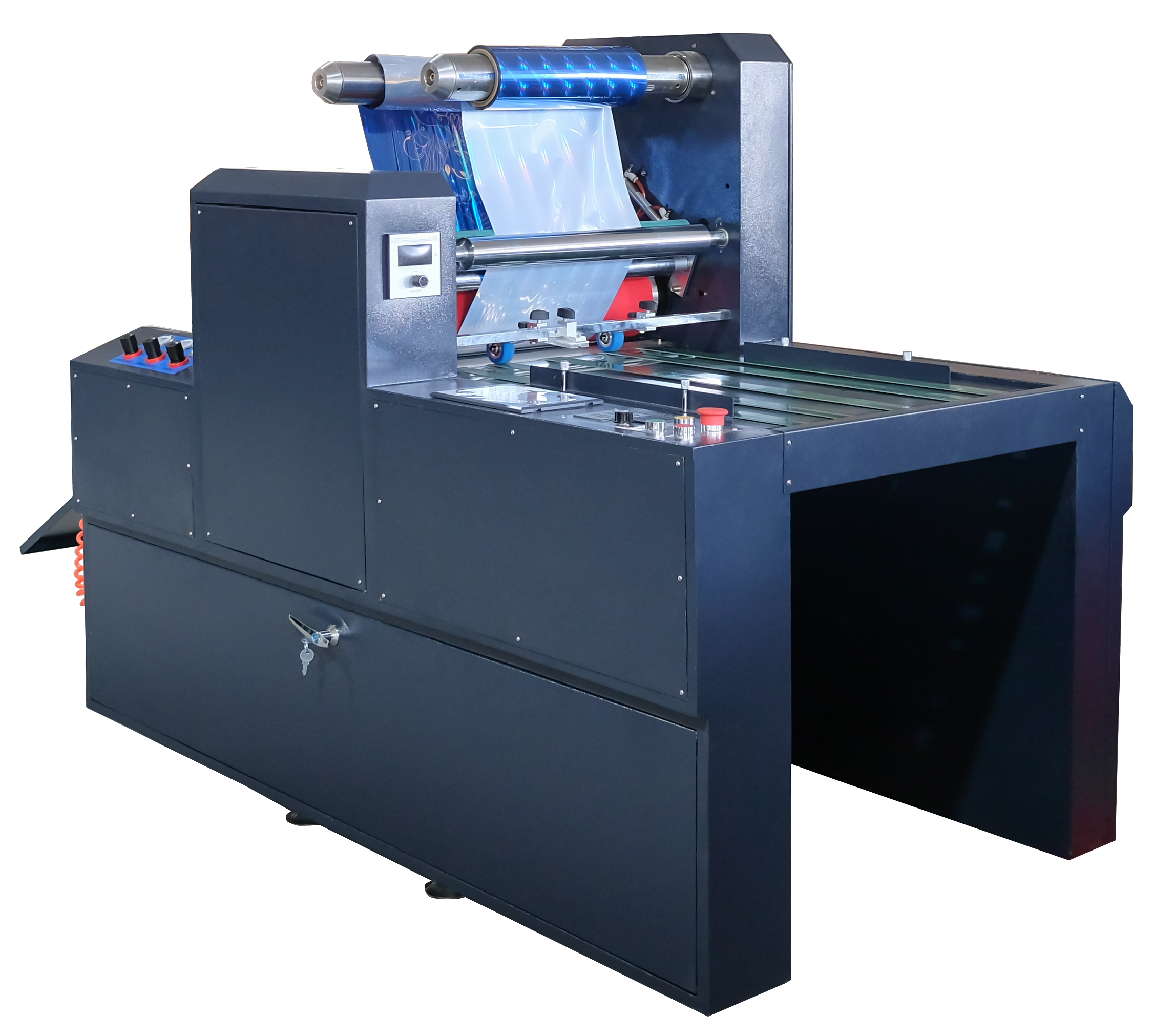

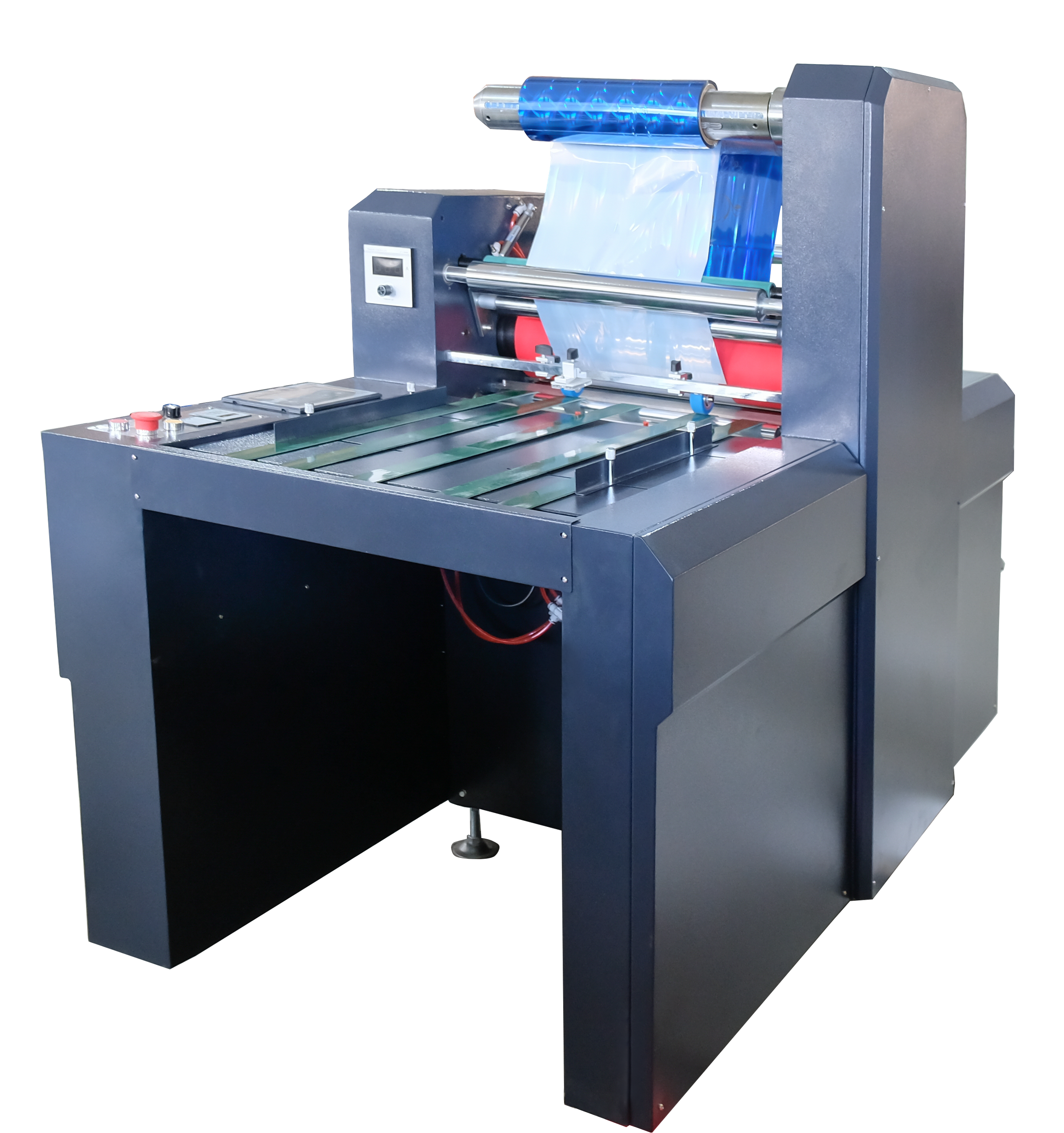

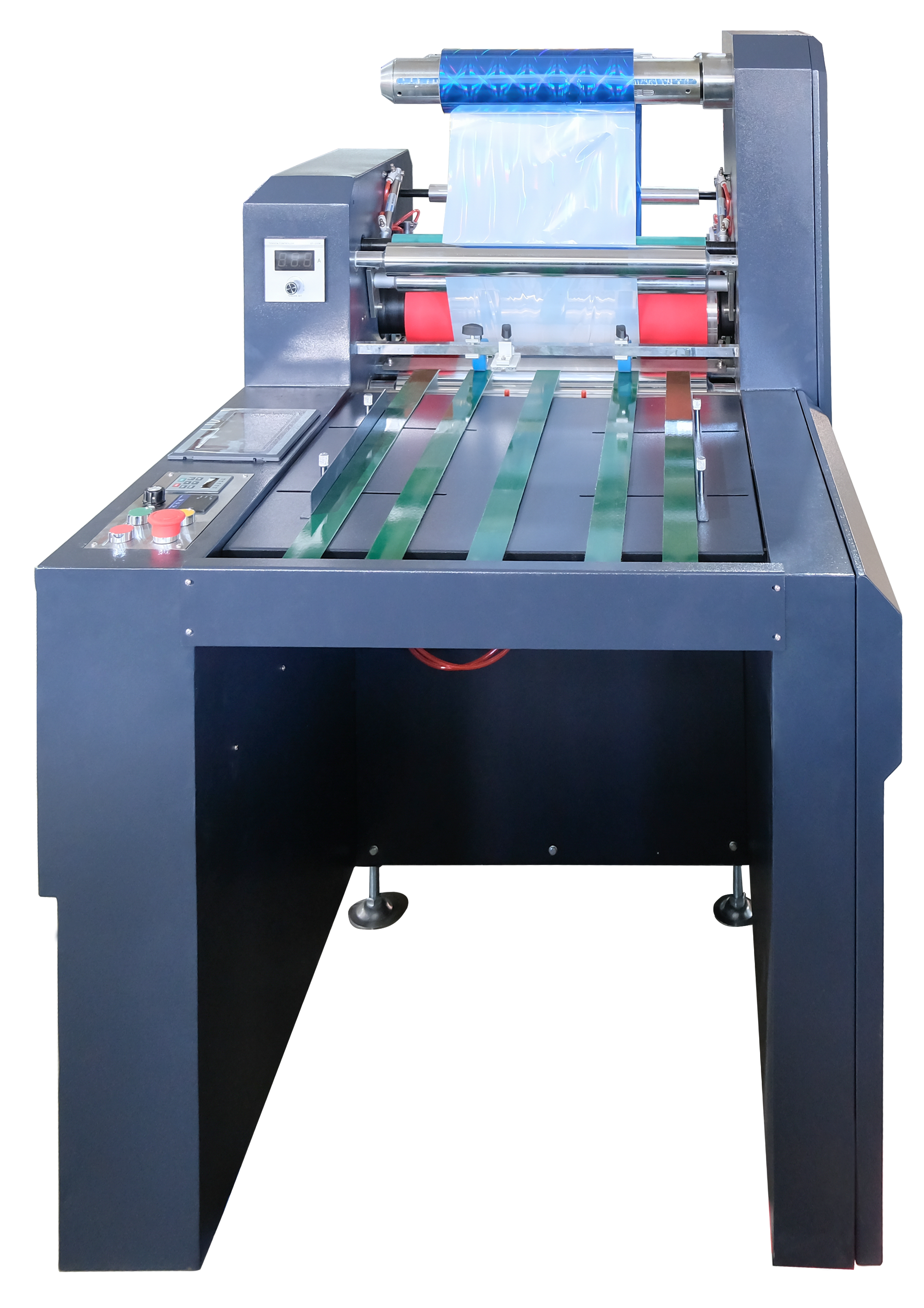

This machine is an oil-heated foil stamping unit featuring a step-feed function, suitable for various hot and cold stamping processes—including self-adhesive labels, water-slide decals, and UV transfers. It utilizes a control system integrating PLC, photoelectric positioning, and a touchscreen interface, allowing for customizable step-feed settings to minimize foil waste. Equipped with a variable-frequency motor for stepless speed control, it accommodates diverse paper types and production speeds. The 3-inch air-expanding shaft unwinding mechanism ensures secure and convenient material loading while effectively preventing foil misalignment. The finished product features a smooth, tight stamping finish with precise registration and crisp, durable text.
The main machine parameters
| Parameter | SWFM-520K |
|---|---|
| Maximum hot stamping width | 500mm |
| Maximum temperature | 130°C |
| Manually set the number of jumping steps | 1-9 times |
| Automatically set the number of jumping steps | 1-999times |
| Monitor | touch screen |
| Control method | PLC Controller |
| Motor | Frequency conversion motor |
|
Film laying/film collection |
3 inch core air shaft |
|
Power supply |
220V 50/60H |
|
Total power |
3.2KW |
|
Dimensions(LxWxH) |
2.2X0.96X1.39m |
